4. Assembly/adjustments
4.1. Unfolding
Position the rollator in the travel direction.
Release the locking brakes (see sec. 4.6.).
Press the frame tubes of the seat downward to unfold the rollator
(Fig. 4). Make sure the tubes are aligned properly and snap into
place.
4.2. Folding
Activate the locking brakes.
Hold the rollator firmly with one hand on the handle. With your
other hand pull the grip on the seat upward (Fig. 5).
When doing so, you must overcome the resistance of the locking
device.
4.3. Attaching the bag
The rollator is unfolded. Activate the locking brakes.
Position yourself against the travel direction in front of the rollator.
Pull the straps of the bag over the two plastic handles (Fig. 6).
4.4. Adjusting the push handles
The rollator is unfolded. Activate the locking brakes.
Hold the push handle firmly with one hand. With the other hand,
activate the locking device (Fig. 7).
Move the push handle to the desired height and let go of the
locking device.
Now move the push handle up and down slightly to ensure that it
snaps audibly into place.
Repeat this procedure on the other side.
On the inside of the push handles you‘ll find a scale (Fig. 8), which
you can use to check the height of the handle. Make sure that both
the number and the marking line are visible.
Check to make sure that both the push handles are at the same
height.
Setting the push handle height according to body
height.
Level 0 – 5 feet 3 inches or taller
Level 1 – 5 feet 5 inches or taller
Level 2 – 5 feet 7 inches or taller
Level 3 – 5 feet 9 inches or taller
Level 4 – 5 feet 11 inches or taller
Level 5 – 6 feet 1 inch or taller
Level 6 – 6 feet 3 inches or taller
Use these figures as guidelines; they may vary in practice.
4.5. Adjusting the back strap
To adjust the height of the back strap, the hand screws on the
frame (Fig. 9) must be loosened.
Move the fastener of the back strap to the desired height and re-
tighten the screws.
The fasteners of the back strap should be at the same height on
both sides.

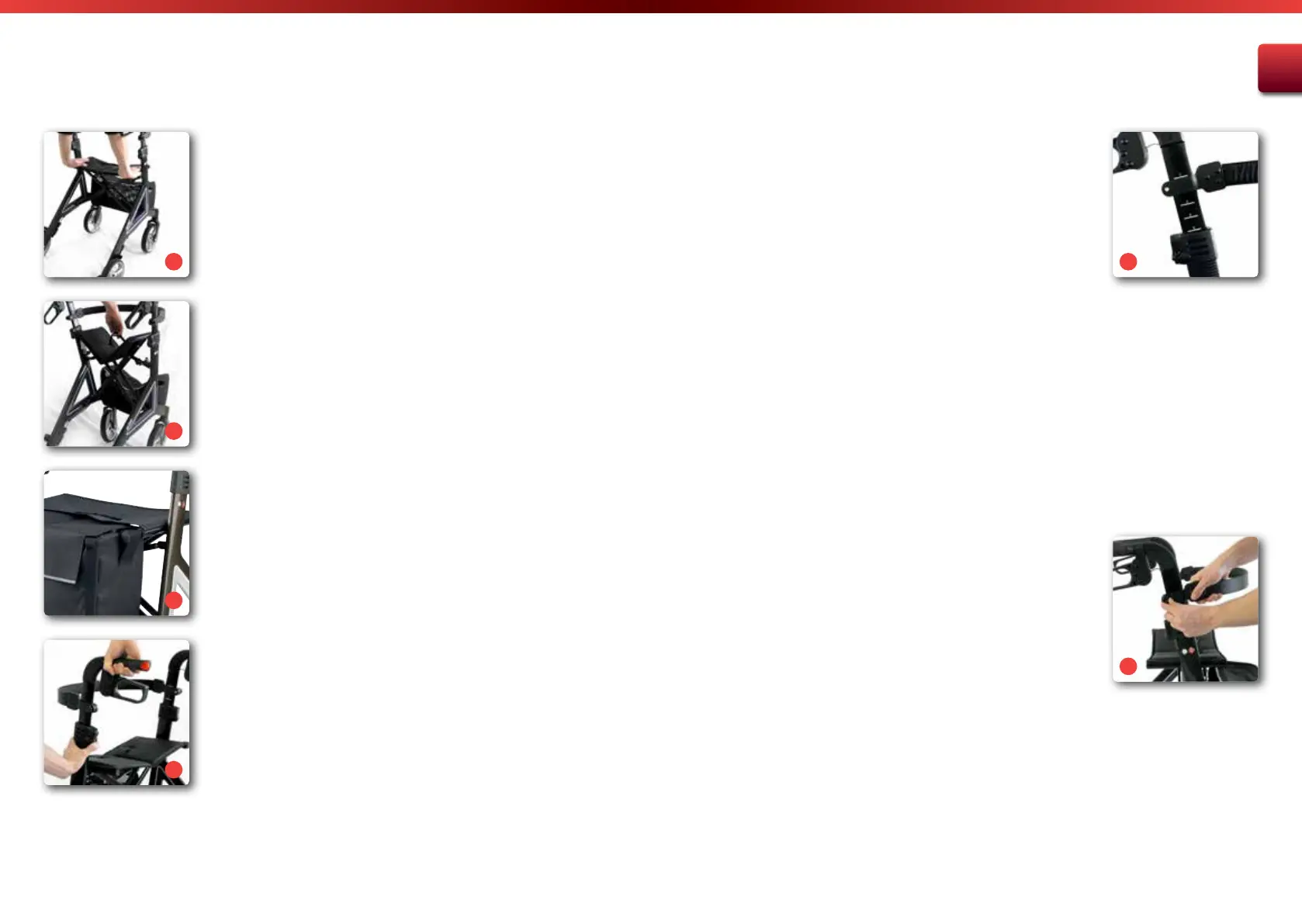

4
