Bpt HET/301 - Page 8

8
AE
HEV/301
(HEVC/301)
(HET/301)
B IN
B OUT
10

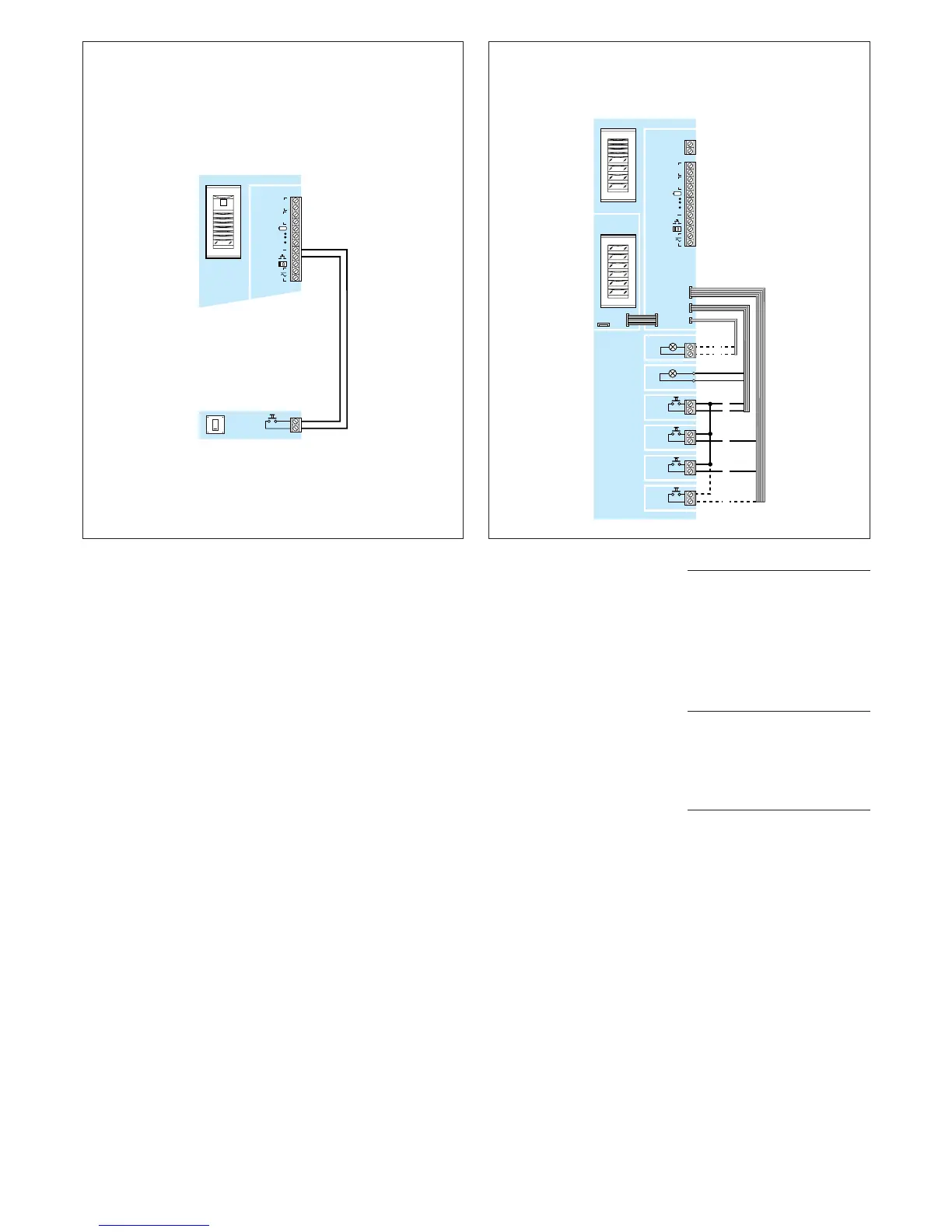

Fig.10-Schema di collegamento
del pulsante ausiliario apriporta
(AE).
Fig.10-Connection diagram of
auxiliary door-lock release button
(AE).
Abb.10-Anschlüsse zwischen Tü-
röffnertaste (Auxiliary/Service)
(AE).
Fig.10-Schéma de raccordement
du bouton gâche intérieur (AE).
Fig.10-Esquema de conexión del
pulsador auxiliar abrepuerta (AE).
Fig.10-Esquema de ligação do
botão auxiliar de abertura de porta
(AE).
Fig.11-Colore dei conduttori relativi
ai cablaggi CN3-CN4-CN5.
Fig.11-Colour coding of wires rela-
ting to CN3-CN4-CN5.
Abb.11-Farbe der Kabelleiter CN3-
CN4-CN5.
Fig.11-Couleur des conducteurs
relatifs aux câblages CN3-CN4-
CN5.
Fig.11-Color de los conductores
correspondientes a los cableados
CN3-CN4-CN5.
Fig.11-Cor dos condutores relati-
vos às cablagens CN3-CN4-CN5.
CBI
CN1
HEP/306
(HEP/312D)
CN3
CN5
CBO
1
2
N
M
R
C
CN4
G
H
KHSO
G
4
3
3
4
B IN
B OUT
HET/301+
…KHPS (…KHPD)
(+KHSO)+
…HEP/306
(…HEP/312D)
11
CN3
C: arancio, orange, Orange, oran-
ge, naranja, laranja
G: giallo, yellow, Gelb, jaune, ama-
rillo, amarelo
R: rosso, red, Rot, rouge, rojo, ver-
melho
CN4
M: marrone, brown, Braun, marron,
marrón, castanho
N: nero, black, Schwarz, noir,
negro, preto
CN5
G: giallo, yellow, Gelb, jaune, ama-
rillo, amarelo
H: grigio, grey, Grau, gris, gris, cin-
zento
