5

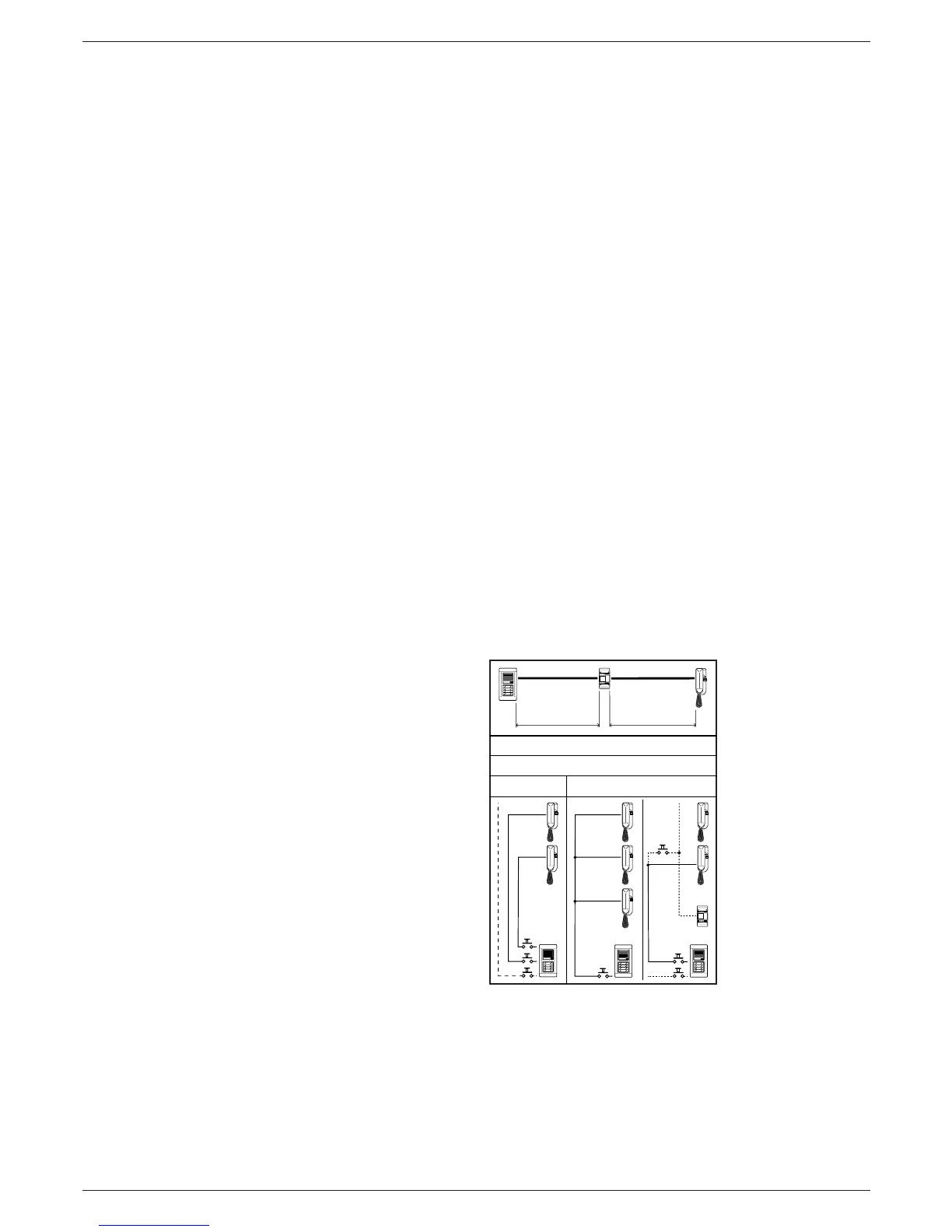

SCHEMI D’IMPIANTO
INSTALLATION WIRING DIAGRAMS
ANLAGENPLÄNE
SCHEMAS D’INSTALLATION
ESQUEMAS DE INSTALACIONES
ESQUEMAS DE INSTALAÇÃO
C : 0,5 mm
2
Max. 3
CP
A : 1 mm
2
B : 0,5 mm
2
150 m 100 m
C :1 mm
2
CP: Pulsante di chiamata dal pianerottolo.
Personal door-bell button.
Taste zum Anrufen von der Etage.
Bouton d’appel porte-palière.
Pulsador de llamada desde el rellano.
Botão de chamada de patamar.
AE: Pulsante ausiliario apriporta.
Auxiliary door-lock release button.
Türöffnertaste (Auxiliary/Service).
Bouton gâche intérieur.
Pulsador auxiliar abrepuerta.
Botão auxiliar de abertura de porta.
SEZIONE DEI CONDUTTORI
WIRE CROSS-SECTION
LEITER QUERSCHNITT
SECTION DES CONDUCTEURS
SECCION DE LOS CONDUCTORES
SECÇAO DOS CONDUTORES
