Braun NUVL855RM24 Service Manual

Page 9

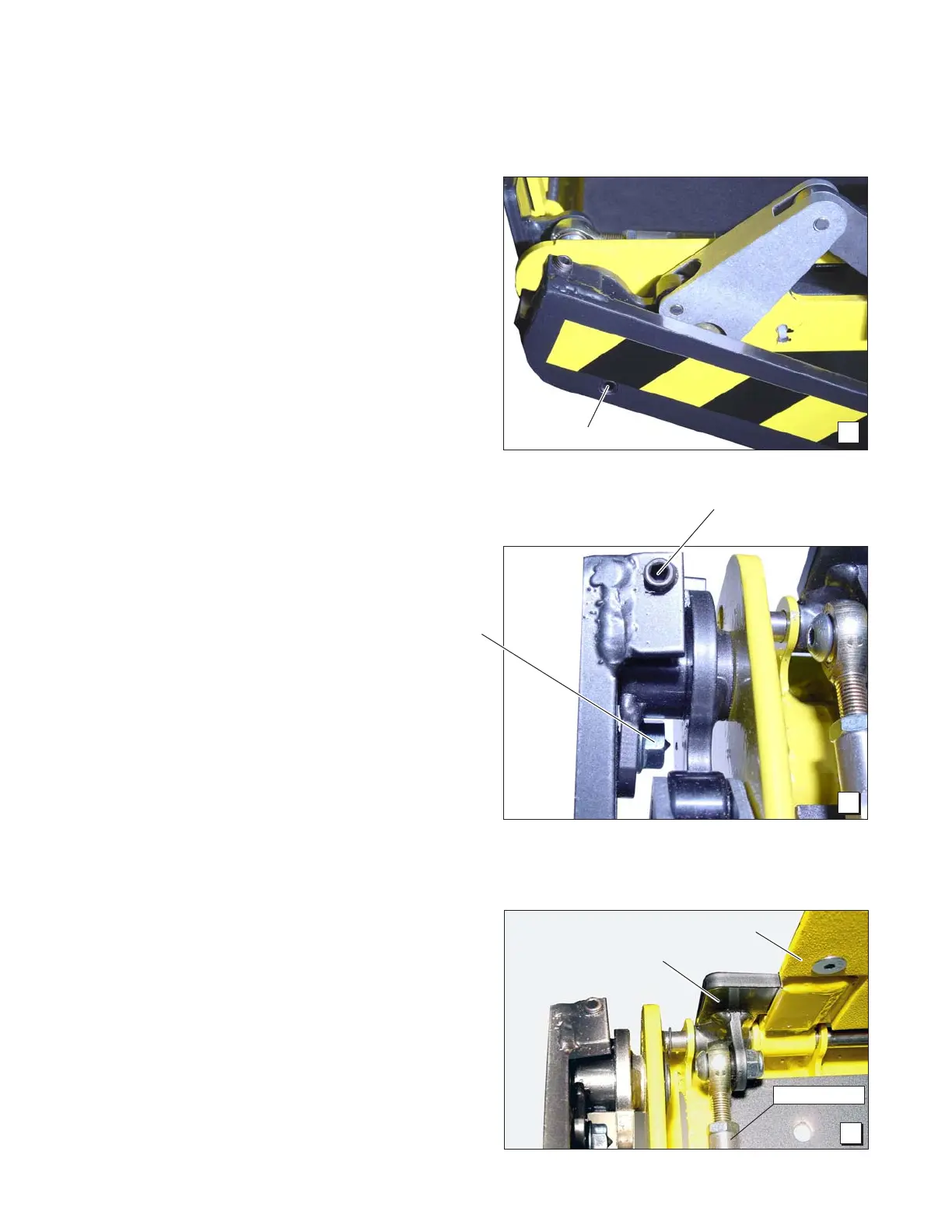

Inner Roll Stop Adjustment
3. Use an Allen wrench to prevent
the cam locking screw from
turning and loosen the 3/8" ser-
rated flange nut securing the
lifting arm cam. See Photos
D and E. Do not remove the
screw or nut.
4. Raise the platform 1" above
floor level using the manual
operation system.
5. Turn the cam adjustment screw
counterclockwise until the inner
roll stop rests on the floor.
Do not continue to turn the
adjustment screw once the
inner roll stop is contacting the
vehicle floor.
6. Verify there is no gap between
the inner roll stop and the roll
stop catch. See Photo F. Turn
the adjustment screw clockwise
to bring the roll stop catch back
in contact with the inner roll
stop. Do not remove the gap
by adjusting the linkage rod.
7. While holding the cam locking
screw, tighten the 3/8" serrated
flange nut securely.
3/8"
Serrated
Flange Nut
Cam Locking Screw
D
E
Floor Level and Inner Roll Stop Adjustments
F
Roll Stop
Catch
Inner
Roll Stop
Cam Adjustment
Screw
Linkage Rod
