Page 10
Do not ad-
just the in-
ner roll stop
linkage rod
unless extra
usable plat-
form length
is needed.
See Photo
Linkage rod adjustment affects angle
of inner roll stop (vertical position).
Improper inner roll
stop linkage rod
adjustment may
result in lift damage.

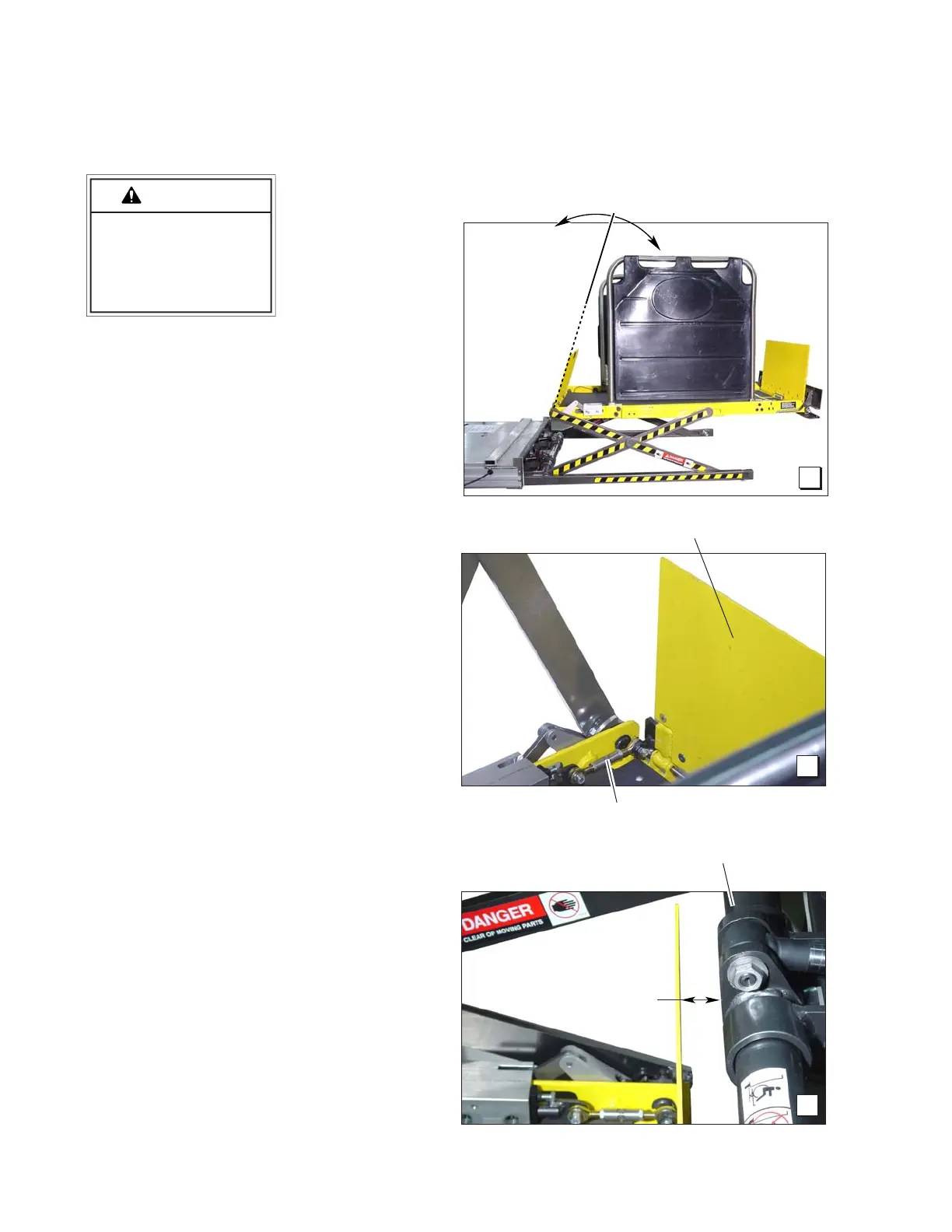

G. If the angle of the inner roll stop (when
in the vertical position) restricts the usable
platform length for the wheelchair pas-
senger, adjustment of the linkage rod will
change the angle.
Adjust the inner roll stop as detailed in the
previous procedures. Then, adjust the link-
age rod as detailed (only if necessary). If
the linkage rod is adjusted too long or too
short, it will exceed the travel of the slider
block resulting in damage to the cam fol-
lower bearing, the cam and/or other compo-
nents.
1. Position the lift platform below stow level
using the manual operation system.
Do not operate the lift with the electric
pump during adjustment procedures.
2. Loosen the jam nuts at each end of the
linkage rod. Adjust rod length as need-
ed. Minimize adjustment. To prevent in-
ner roll stop contact with the torque tube
area, leave a minimum of 1" clearance.
See Photo I. Carefully check the inner
roll stop angle and operation using the
manual operation system. Ensure the
rod has not been over adjusted resulting
in pressure on components (damage
will result).
3. Tighten the linkage rod jam nuts.
G
Floor Level and Inner Roll Stop Adjustments
Inner Roll Stop
Linkage Rod
H
Inner Roll Stop Adjustment
I
1" Minimum
Clearance
Torque Tube
To Next Page
