Page 11
Inner Roll Stop Occupied Sensor Adjustment
1. The optimum setting for the inner roll
stop occupied sensor adjustment nut is
to have just enough pressure to fold and
unfold the inner roll stop without trigger-
ing the inner roll stop occupied sensor.
This provides the most weight sensitive
setting while allowing the unoccupied
inner roll stop to function correctly.
2. If the weight of the empty inner roll stop
is triggering the sensor while it is fold-
ing, tighten the sensor nut 1/8 turn and
cycle the lift several times to verify cor-
rect operation. See Photo J.
3. If the lift is not reacting to weight on
the inner roll stop soon enough, loosen
the pressure adjusting nut 1/8 turn and
cycle the lift several times to verify cor-
rect operation.
4. If the inner roll stop occupied alarm
continues to go off even when the inner
roll stop is in the vertical position, turn
the sensor activation bolt clockwise until
alarm is not activated. See Photo K.

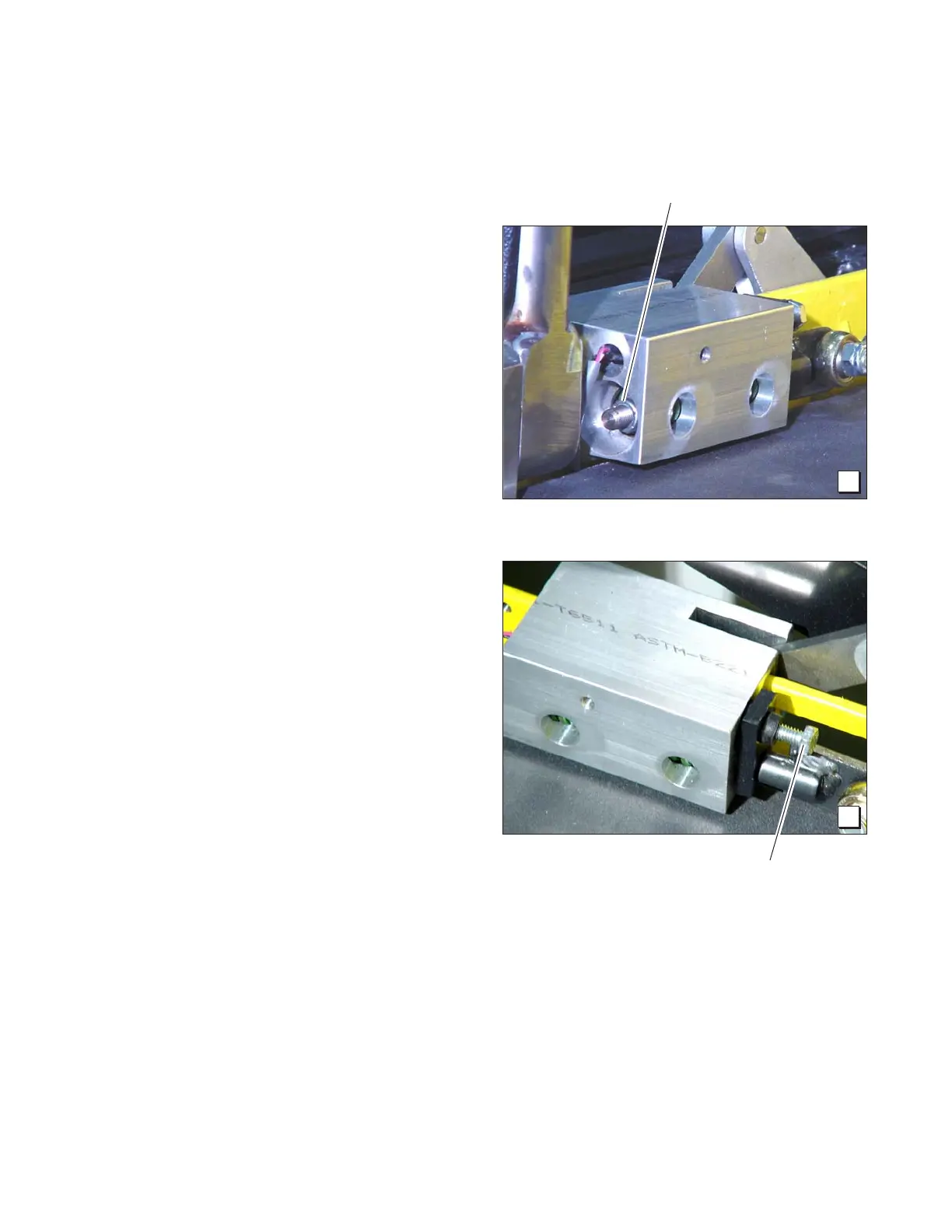

J
Adjustment Nut
Floor Level and Inner Roll Stop Adjustments
K
Sensor Activation Bolt
