Braun UVL 603A User Manual

Page 14
UVL
Dual Manual Fold “U” Handrail (with Shield) Instructions
W
A
RNING
Fold handrails down
before stowing lift.
Failure to do so may
result in serious
bodily injury and/or
property damage.
Before stowing lift:
2. Lift round
latching knob to
disengage latch
and fold rear
(left) handrail
down to plat-
form (horizontal
position).
1. Fold down
inboard roll
stop (bridge
plate).
Latch
Knob
Latch
Knob
Folding “U” handrails (with safety
shield) are manually operated.
The handrails rest on the platform
when the lift is not in use. The
handrails must be folded down to
the platform (horizontal position)
before stowing the lift.
Note: The bridge plate (inboard
roll stop) must be folded down
to the platform (horizontal posi-
tion) before the handrails are
folded down.
The handrails are lifted to the

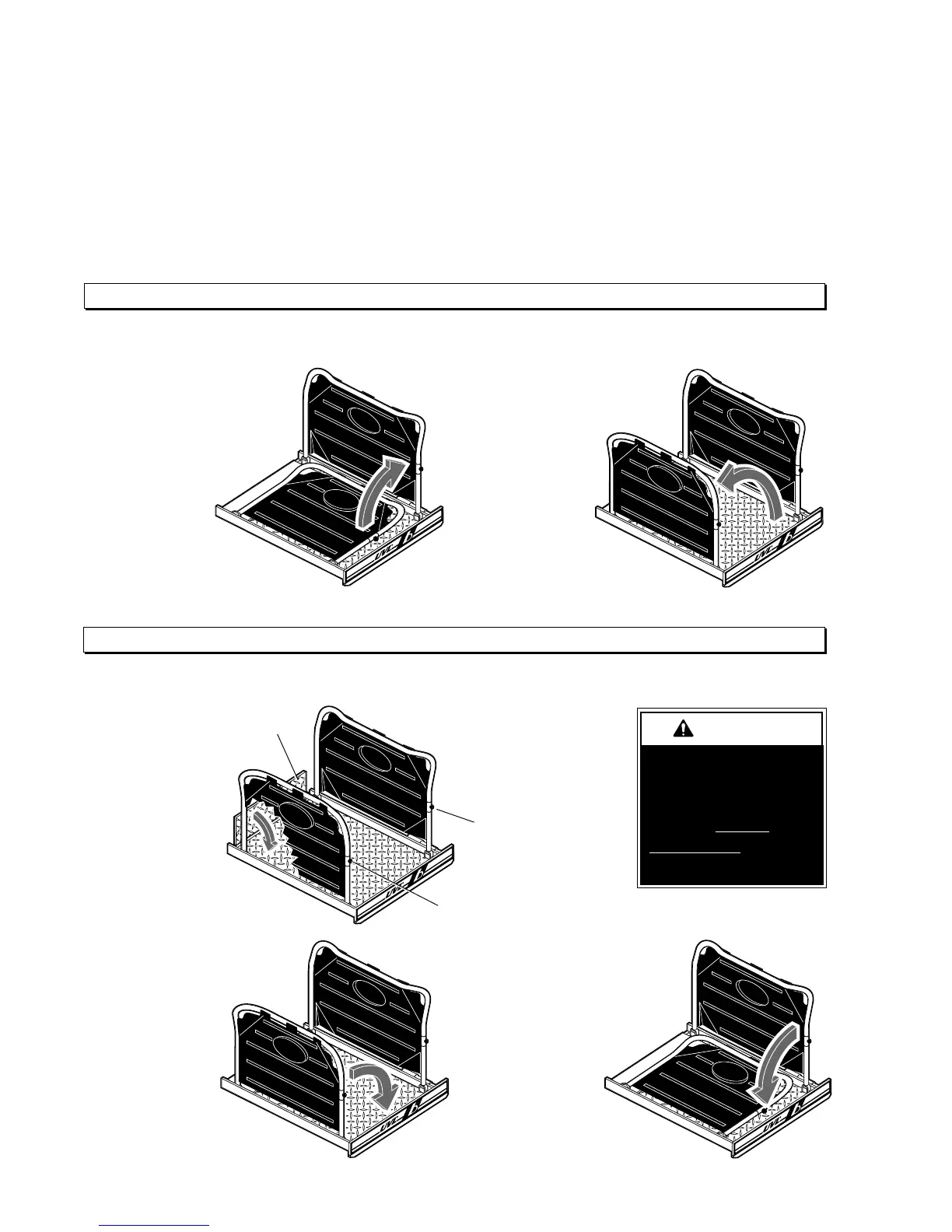

To Deploy Handrails:
To Stow Handrails:
vertical position and locked in
position with a latch that auto-
matically engages the platform
bracket when fully raised. Lifting
the round knob located on the
vertical handrail tube disengages
the latch.
1. Lift front
(right)
handrail to
vertical
latched
position. Be
certain latch
is engaged.
2. Lift rear (left)
handrail to
vertical
latched
position. Be
certain latch
is engaged.
Inboard
Roll Stop
3. Lift round
latching knob to
disengage latch
and fold front
(right) handrail
down to plat-
form (horizontal
position).
UVL
UVL
UVL
UVL
