Bravox BVX12D 2 - Wiring Configurations; Dual Voice Coil Wiring

WIRING

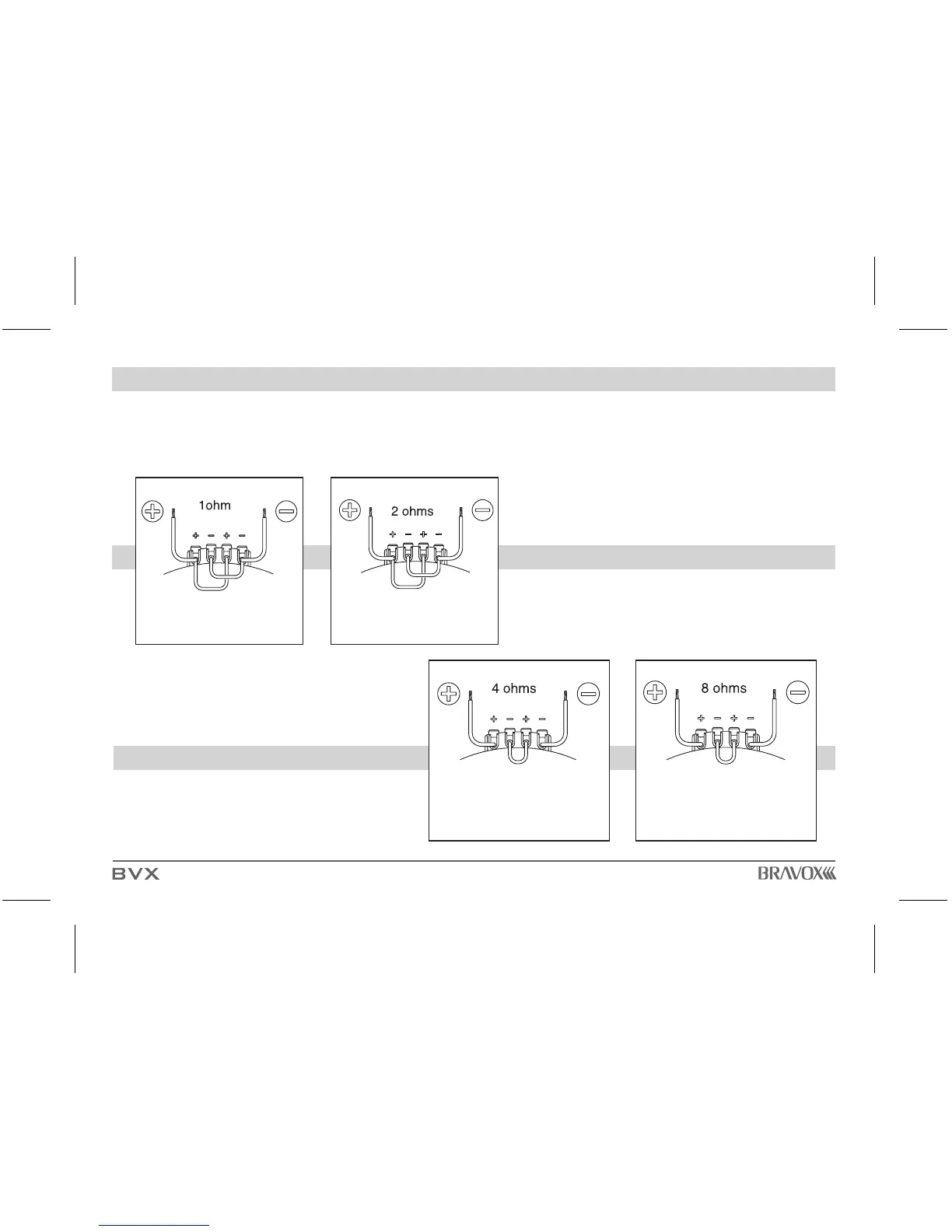

PARALLEL WIRING
SERIES WIRING
BVX SUBWOOFERS are offered in Dual Voice Coil configuration in two versions, 2+2 and 4+4 ohms.
This allows the user to create virtually any impedance load to match his amplifier. Further the terminals
for each coil are located in the same side thus easing its connection to the amplifier.
BVX 12 D 2
BVX 12 D 2
BVX 12 D 4
BVX 12 D 4
