Bray Flow-Tek Triad Series Installation & Maintenance Manual

Installation and Maintenance Manual
Triad Series Ball Valves
Date: August 2020 / Page 4 of 7
FLOW-TEK, Inc. Tel: 832.912.2300
© 2020 Flow-Tek, Inc.
8323 N. Eldridge Pkwy #100 Fax: 832.912.2301
Houston, Texas 77041 www.flow-tek.com
Flow-Tek offers the seat, body
seals, thrust washer and stem
packing as recommended spare
parts. These parts are available
as a packaged repair kit.

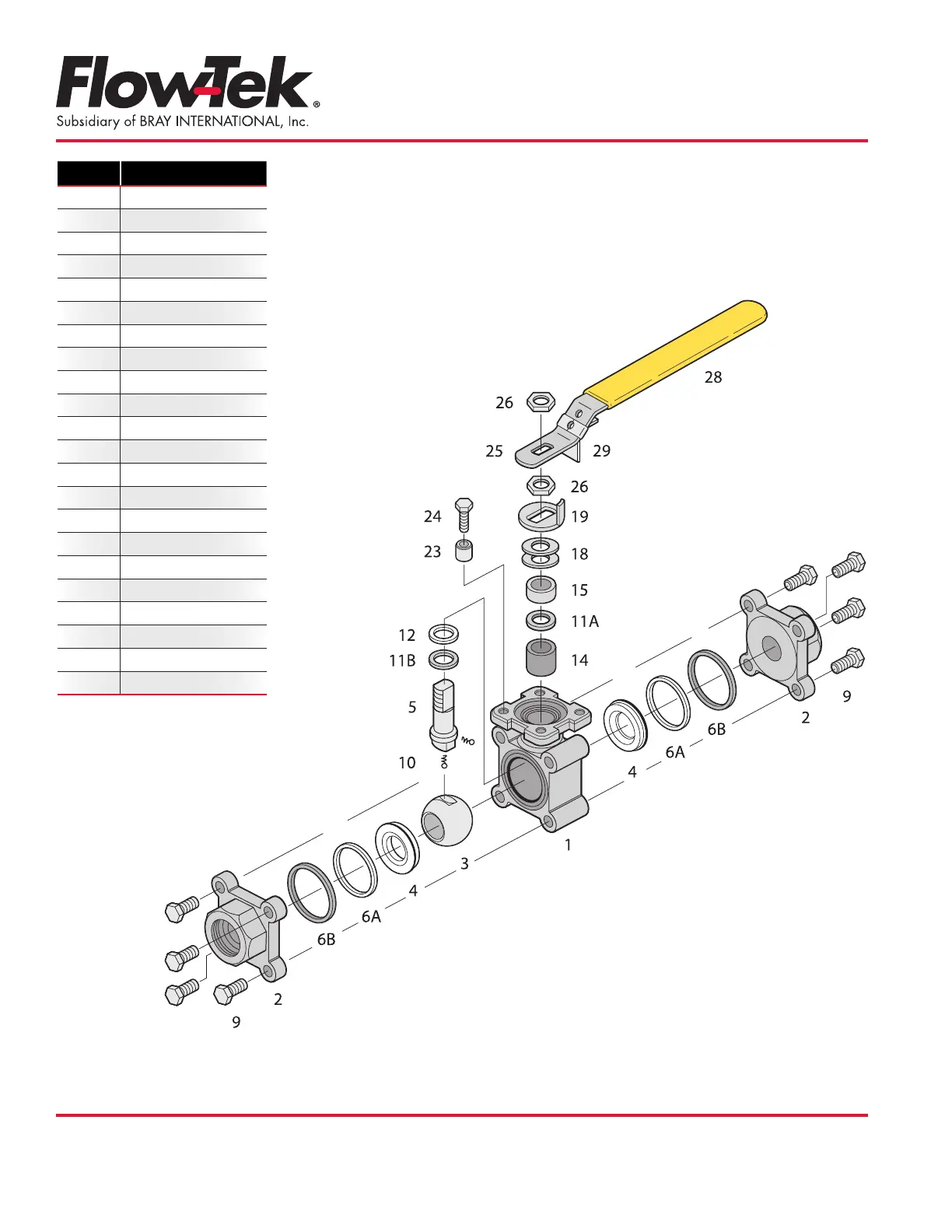

Item Name
1 Body
2 End Cap
•
3 Ball
4 Seat
5 Stem
6A Body Seal
6B Body Seal
9 Body Bolt*
10 Anti-Static Device
11A Packing Protector
11B Thrust Washer Protector
12 Thrust Washer
14 Stem Packing
15 Packing Gland Sleeve
18 Belleville Washer
19 Tab Lock Washer
23 Travel Stop Set Sleeve
24 Travel Stop Bolt
25 Handle
26 Lock Nut
28 Handle Sleeve
29 Locking Device
*Items contained in repair kit
Valve Sizes:
11
⁄44” through 2
11
⁄22”
