Installation and Maintenance Manual
Triad Series Ball Valves
Date: August 2020 / Page 5 of 7
FLOW-TEK, Inc. Tel: 832.912.2300
© 2020 Flow-Tek, Inc.
8323 N. Eldridge Pkwy #100 Fax: 832.912.2301
Houston, Texas 77041 www.flow-tek.com
14
11
15
16
17
10
5
20
21
22
30
11
A
B
12
13
3
4
7
6
A
6
B
1
2
25A
25 B
27
4
7
6
A
6
B
2
9
9

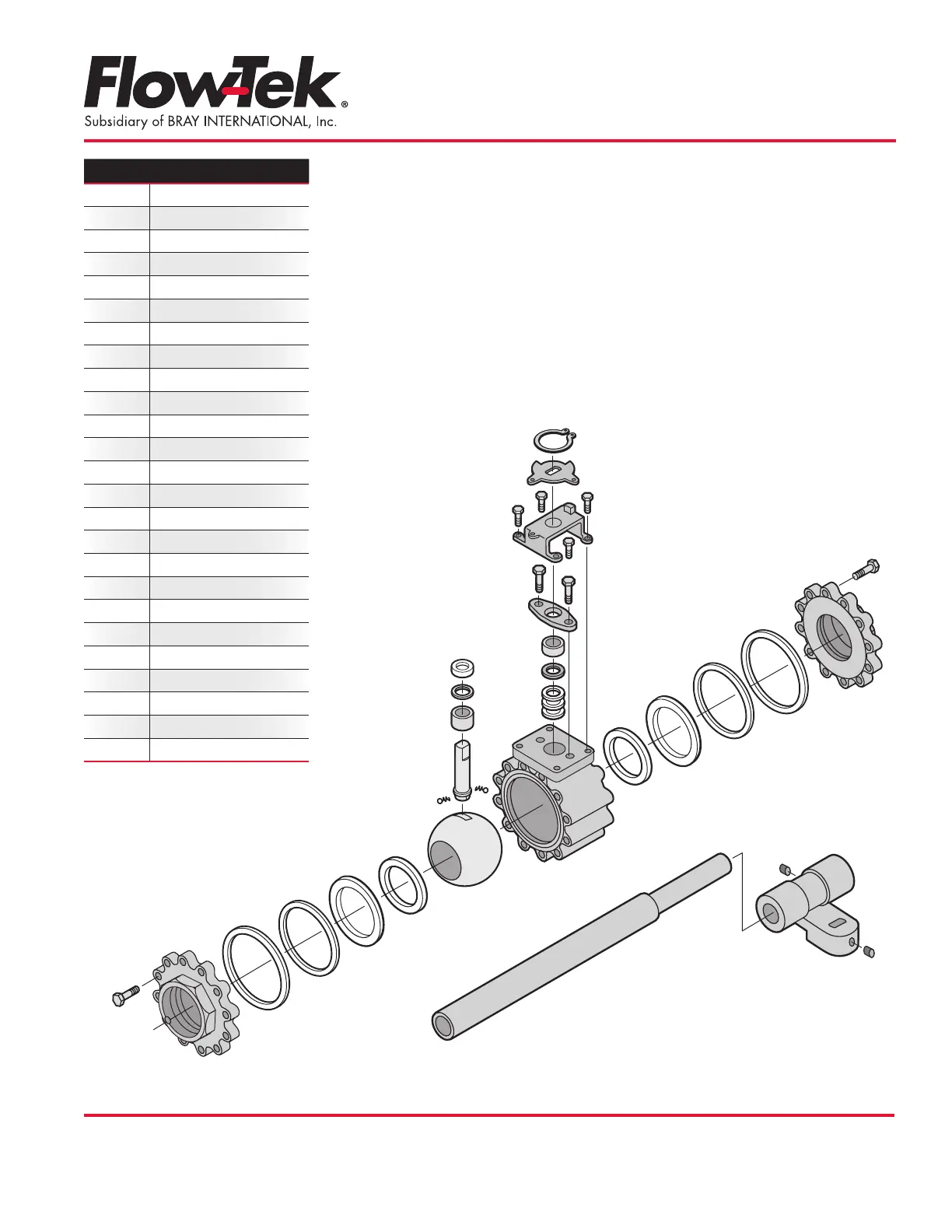

Valve Sizes:
3” and 4”
Item Name
1 Body
2 End Cap
3 Ball
4 Seat
5 Stem
6A Body Seal
6B Body Seal
7 Seat Support
9 Body Bolt*
10 Anti-Static Device
11 A Packing Protector
11 B Thrust Washer Protector
12 Thrust Washer
13 Stem Bearing
14 Stem Packing
15 Packing Gland
16 Packing Follower
17 Gland Bolt
20 Stop Housing
21 Housing Bolt
22 Travel Stop
25A Handle
25B Handle Junction
27 Handle Bolt
30 Snap Ring
*Items contained in repair kit
