IX. Set-Up, Adjustment & Use
21
English

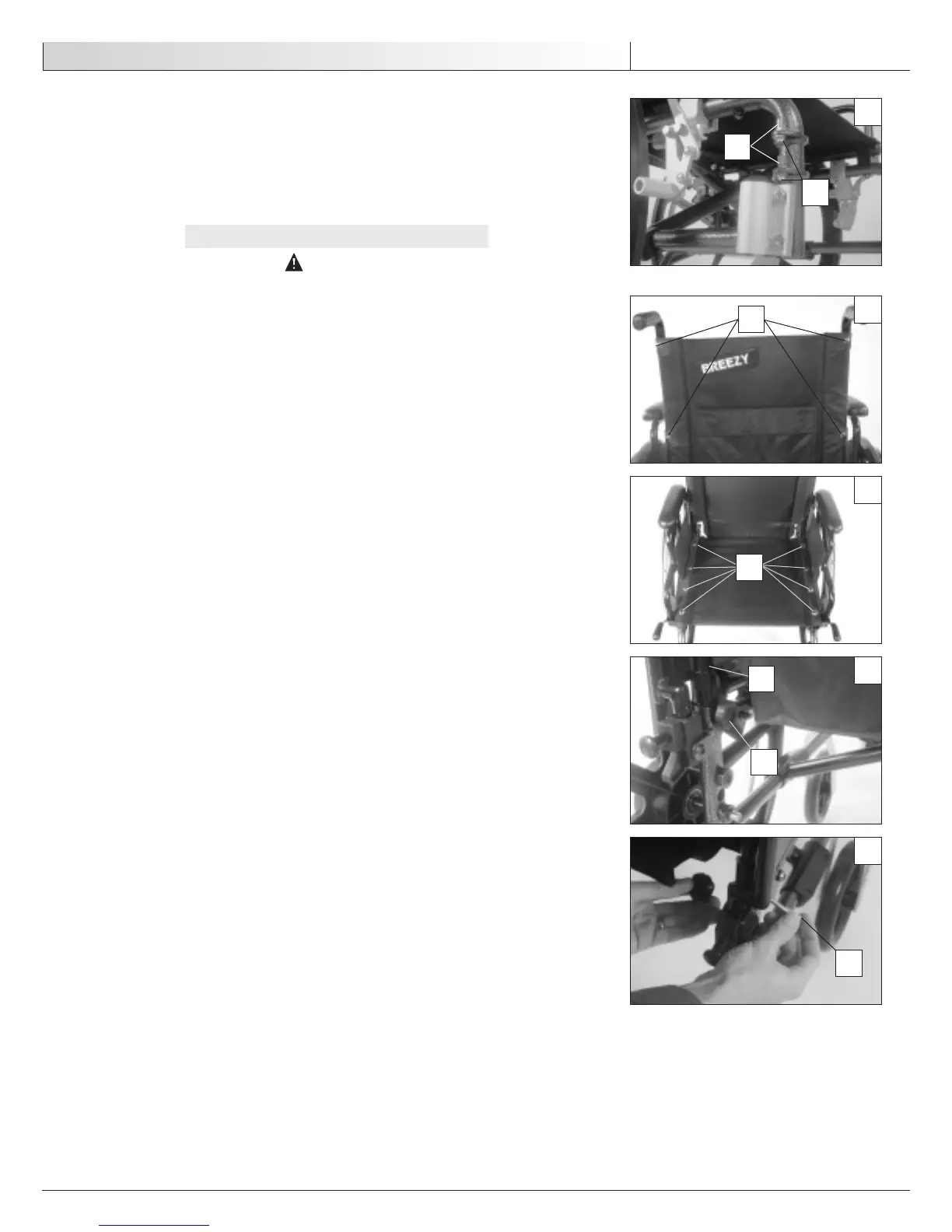

E. REPLACING FRONT FOOTREST/LEGREST HINGE PINS (FIGURE 11)
NO
TE-
Front footrest/legrest hinge pins (4 total) should be checked periodically for wear and tightness.
A qualified technician should preform replacement of front caster pins.
1.
Using wrench or socket, remove caster hinge bolts (A) and washer.
2. Pull caster hinge pin from frame (B).
3. Reverse STEPS 1-2 to replace caster hinge pins.
SEAT AND BACK
WARNING
After ANY adjustment, repair or service and BEFORE use, make sure all attaching
har
dware is tightened securely – otherwise injury or damage may result.
A. REPLACING THE BACK UPHOLSTERY (FIGURE 12)
1. Slightly fold chair to remove tension on the upholstery.
2. Remove the hex bolts and washer that secure the existing back upholstery to the
back canes (C).
3. Position new back uphostry on back canes.
4. Securely tighten the new back upholstery to the back canes with hex bolts and washers.
B. REPLACING THE SEAT UPHOLSTERY (FIGURE 13)
1. Slightly fold chair to remove tension on the sling.
2. Remove the hex bolts (D) and washer that secure the existing back upholstery to the
back canes.
3. Remove the existing upholstery from the cross brace.
4. Install the new seat upholstery by reversing STEP 2.
C. ADJUSTING BACK HEIGHT (FIGURE 14 AND 15)
1. Slightly fold chair.
2. Remove rear wheel. Refer to Wheelchair Basics Section 3 of this manual.
3. Remove back height adjustment knob (E).
4. Remove bolt from back height assembly (G).
5. Using one of the three pre-configured height slots adjust the back cane (F) up or
down.
6. Replace bolt. Note: bolt head should be facing outward from wheelchair and should
be flush with back height assembly, the adjustment knob to the inside.
7. Tighten back height adjustment knob (F) onto bolt.
8. Repeat instructions for opposite side.
CAUTION- Both back canes should be same height for seat before using wheelchair.
11
12
13
14
15
E
G
A
C
B
D
F
