Page 6

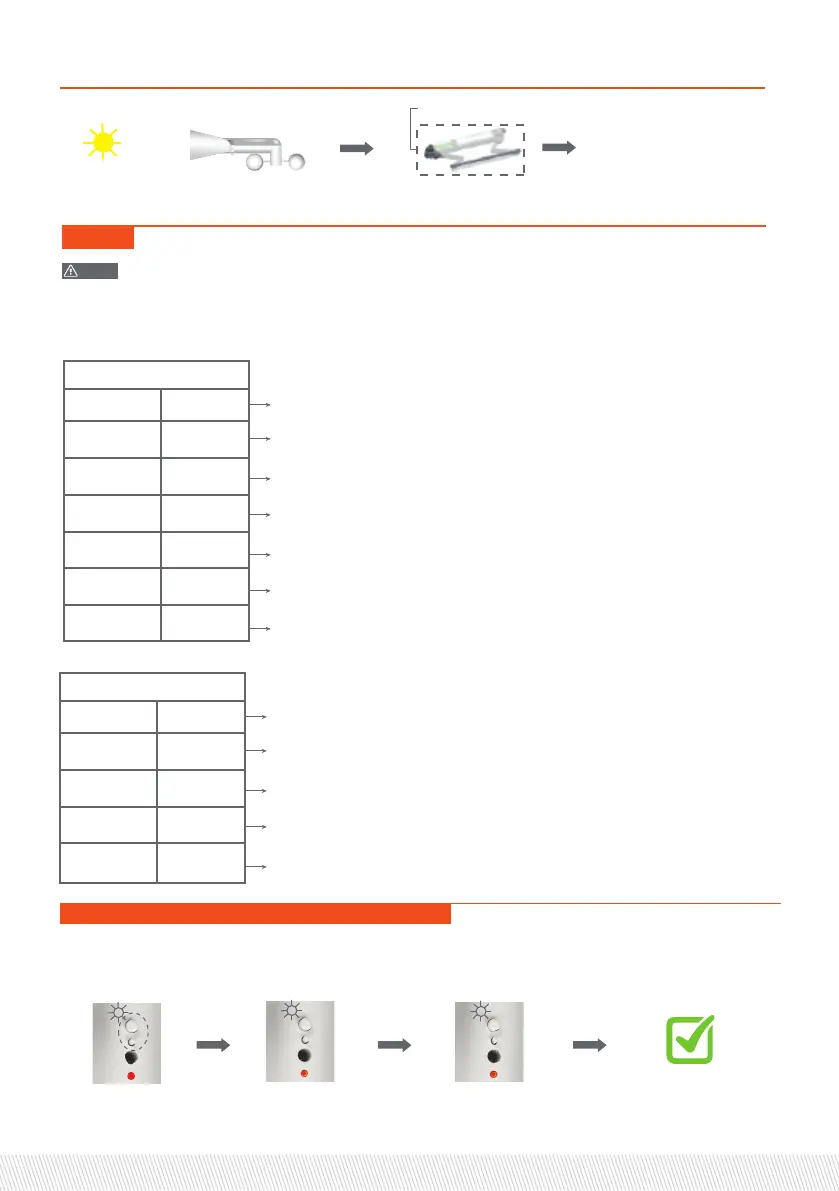

Sensor Grade Adjusting Reference
Step 4
DD116H4:00-6:00 PM.
When the sunlight is
lessening, the awning will
be closed automatically
NOTE
1 When the wind intensity exceeds the set grade, the motor runs upward after 3 seconds.
2 When the sun intensity continues to exceed the set grade, the motor runs downward after 5 minutes.
When the light intensity continuously doesn't reach the set grade, the motor runs upward after 15 minutes.
Wind grade reference
1 grade
1.5 grade
2 grade
2.5 grade
3 grade
3.5 grade
4 grade
10km/h
15km/h
20km/h
25km/h
30km/h
35km/h
40km/h
When the grade is “1”, the wind intensity reaches over 10km/h, the awning
will be closed.
When the grade is “1.5”, the wind intensity reaches over 15km/h, the
awning will be closed.
When the grade is “2”, the wind intensity reaches over 20km/h, the awning
will be closed.
When the grade is “2.5”, the wind intensity reaches over 25km/h, the
awning will be closed.
When the grade is “3”, the wind intensity reaches over 30km/h, the awning
will be closed.
When the grade is “3.5”, the wind intensity reaches over 35km/h, the
awning will be closed.
When the grade is “4”, the wind intensity reaches over 40km/h, the awning
will be closed.
Light intensity grade reference
0 grade
1 grade
2 grade
3 grade
4 grade
Close
20KLUX
40KLUX
60KLUX
80KLUX
When the grade is “0”, the sun intensity will close.
When the grade is “1”, the sun intensity reaches over 20KLUX, the awning
will open.
When the grade is “2”, the sun intensity reaches over 40KLUX, the awning
will open.
When the grade is “3”, the sun intensity reaches over 60KLUX, the awning
will open.
When the grade is “4”, the sun intensity reaches over 80KLUX, the awning
will open.
Uni-directional / Bi-directional Mode Switch
Uni-directional mode switch to bi-directional mode
Up
P2
Press and hold UP and P2
button, don't release
Up
P2
After 5S, the LED indicator
will be long bright once, don't
release the button
Up
P2
After 10S, the LED indicator
will be long bright once,
release the button.
The mode has been
switched successfully.
Flash×2
Motor
Required
