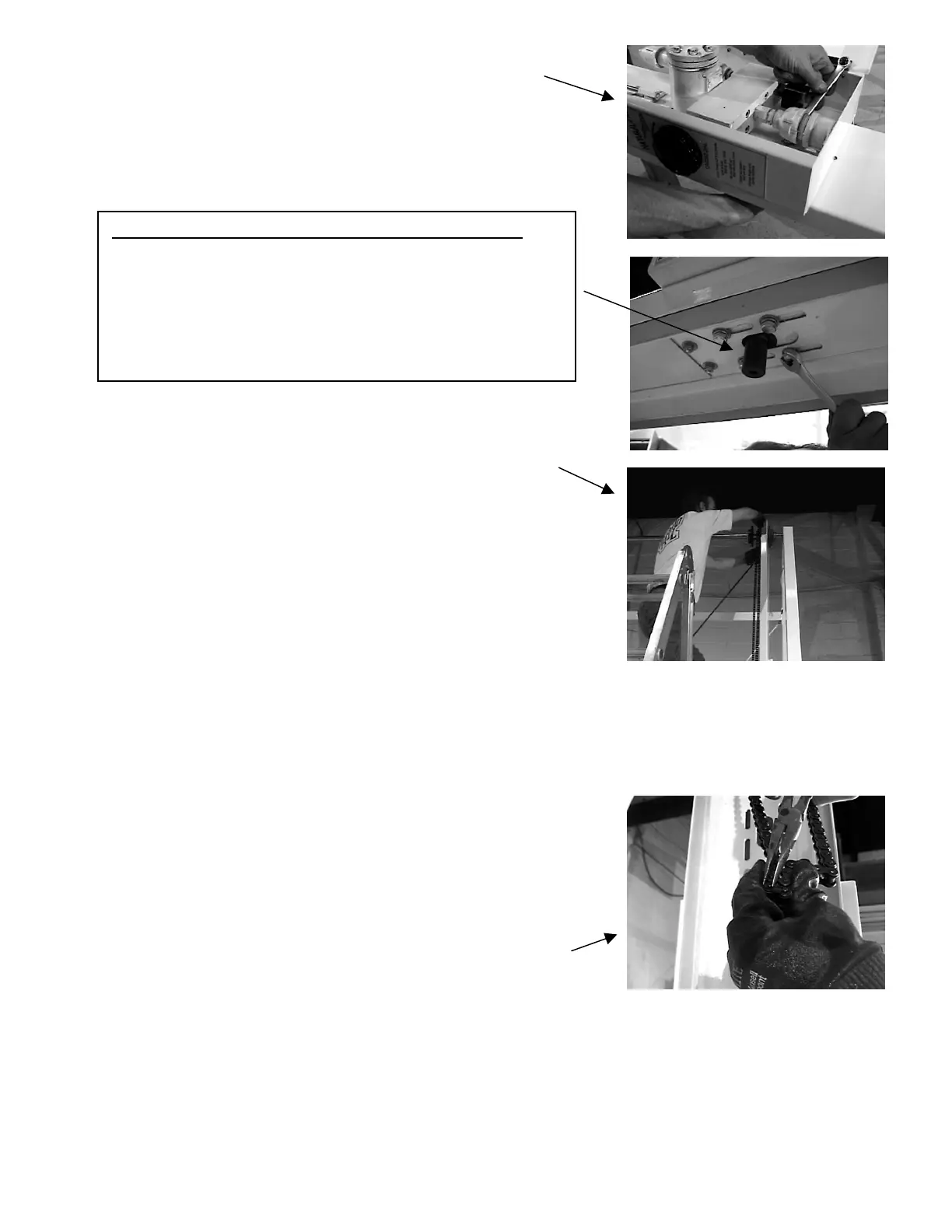

Put the “fifth bolt” through the hole in the channel
and replace the washers and nut.
Push the panel assembly towards the top of the
channel until it is at the top of the mounting slots and
tighten the mounting bolts.
Important: Do not over-tighten the mounting bolts.
The torque specification is 3 foot-pounds, but most torque
wrenches don’t measure in this range. The five bolts should
be tight enough to compress the lockwashers fully plus a
little more - firm but not tight. The long tensioning bolt must
be able to push the pump down for future adjustment of the
drive chain.
Mounting the Channels:
Hook the right channel onto the shaft just inside of
the square bearing. This channel with the control panel
attached is quite heavy - a two person job. One person
on the ground holds the channel in place while the
ladder person bolts it onto the bearing. Only install the
bottom rear bolt in the bearing at this time and leave the
nut loose.
Install the left channel on the other end of the shaft.
Again, only install the bottom rear bolt.
Drive Chain
The drive chain connects the pump with the main shaft.
Install the sprocket onto the pump shaft and tighten
the setscrews securely. The hub side of the sprocket
goes on first – outside of sprocket flush with the end of
the shaft.
Install the large fender washer over the sprocket to
safeguard the sprocket if the setscrews become loose.
Install the #40 drive chain between the pump and the
sprocket on the upper shaft. The chain stays loose for
now.
