7712206-User Manual-EN-2019-9 10 | 22

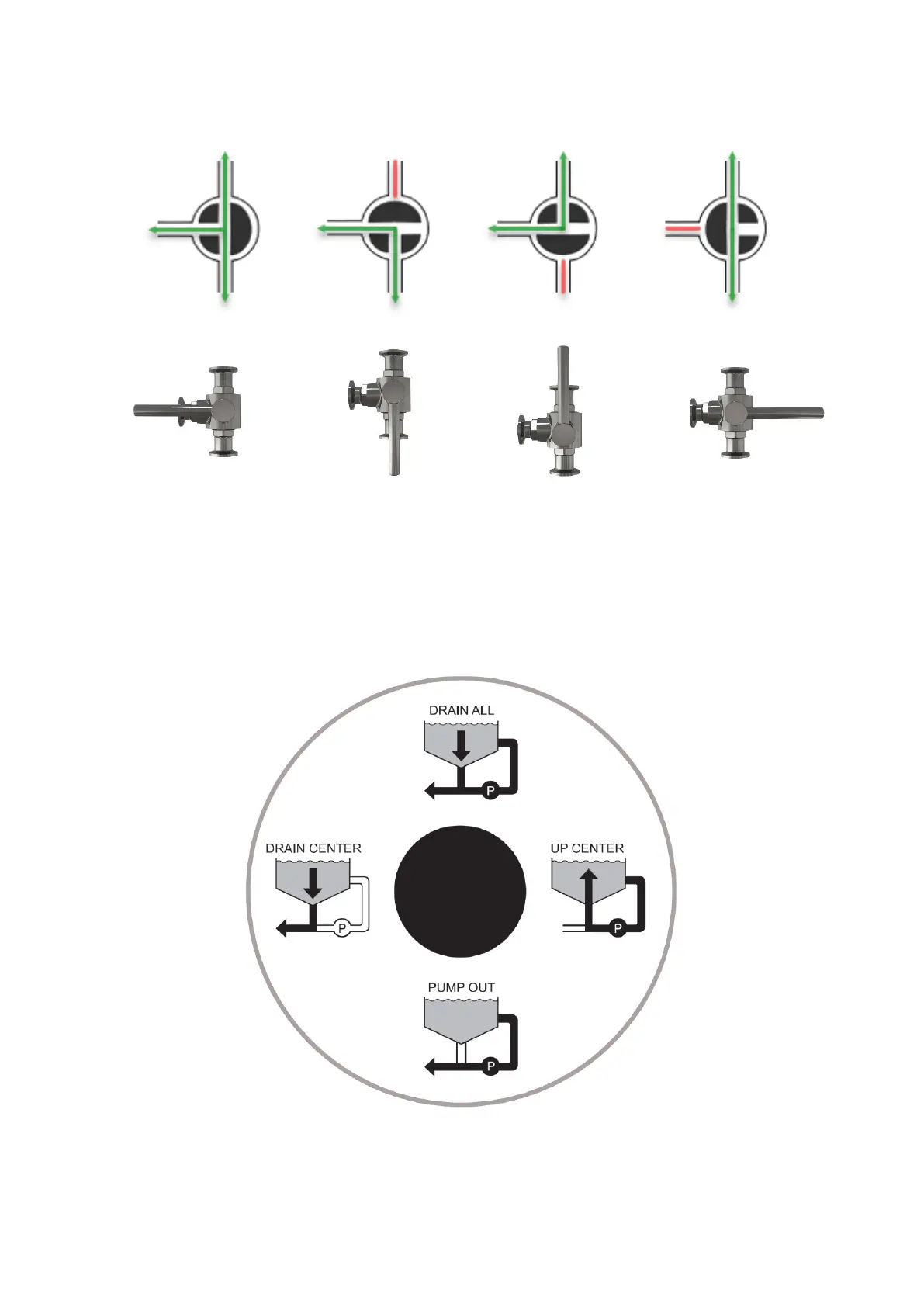

The illustrations show the fluid flow (green) in the 3-way valves based on the handle position.
The bottom valve has an extended handle which makes it possible to control from the right
side of the control system. There is a sticker showing the flow based on the handle
direction.
Bottom valve sticker
