2022 Owner’s Manual Eagle 8 BRIG ltd
45
c- anchor light (white all-round). Press the switch to turn on/off the white all-round light.
The white all-round light is
mounted on the stern mast or T-Top, depending on your boat's equipment.
Use navigation lights according to Navigation Light Rules.
d- e- bilge pump 1.
Press to control bilge pump (see details in the DRAIN SYSTEM section of this manual).
f- shower pump. Press to control shower pump (see details in the FRESH WATER SYSTEM section of this manual).
g- and h- auxiliary switches.
Can be used for additional equipment.
Switch for control of anchor windlass (2). How to use this switch is described in section ANCHORING of this manual.
USB and 12V sockets (3). These can be used to power accessories with the correct adapters to charge phones and
tablets.

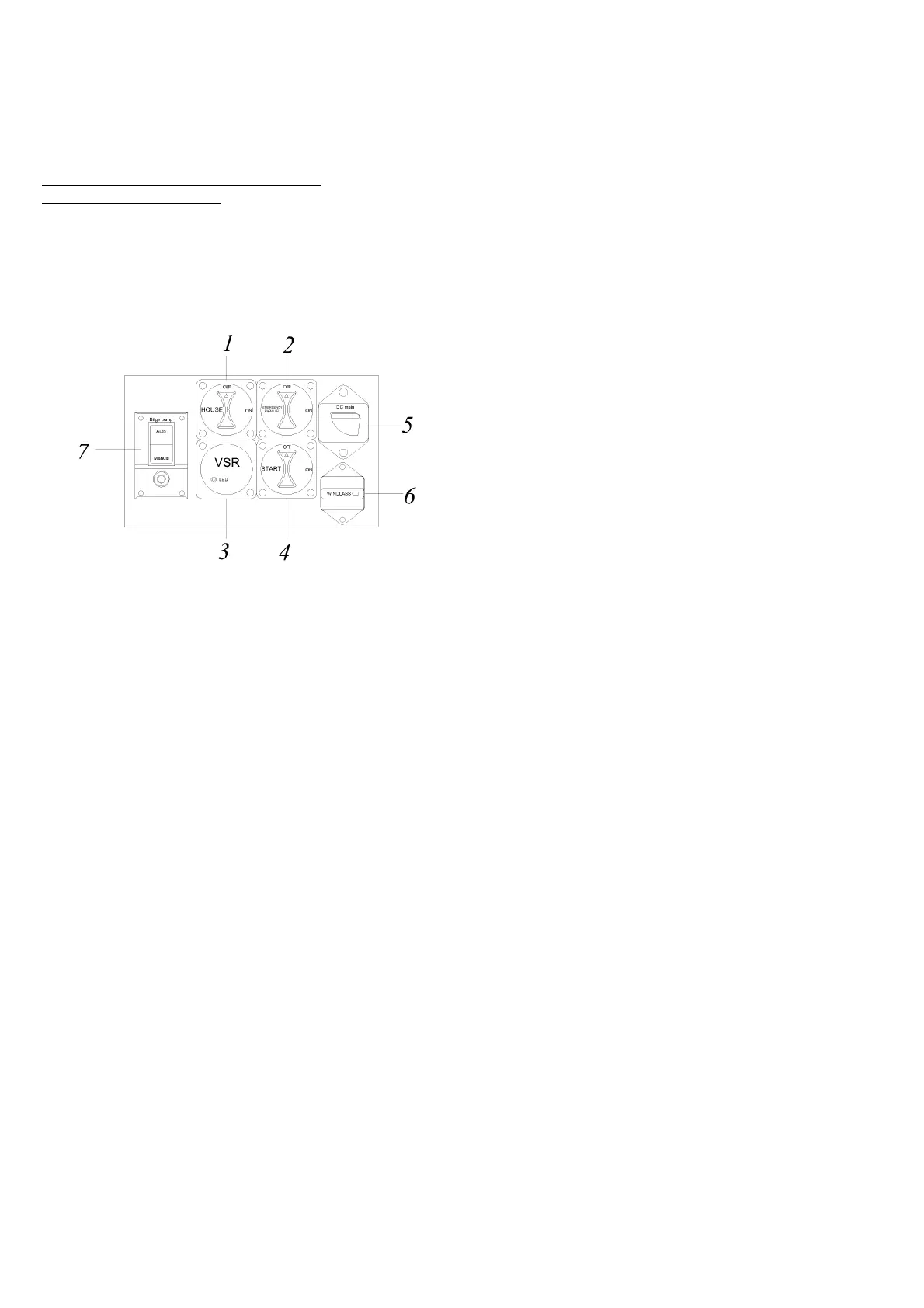

BATTERY ISOLATION SWITCHES PANEL
In the Fig.18 you see battery isolation switches which located in the boat rear compartment.
Usually two batteries are installed. One start battery for outboard engine (switch marked as “START”), one as a house
accessory battery (switch marked as “HOUSE”) for higher amperage drawing components.
1 - house battery main switch (On-Off)
2 - emergency parallel (On-Off)
3 - Voltage Sensitive Relay (VSR)
4 - start battery main switch (On-Off)
5 - thermal circuit breaker 40A (see section “FUSE” of this
manual)
6 - windlass circuit breaker (see section “ANCHORING” of
this manual)
7 - bilge pump 2 control switch with resettable fuse (see
sections “DRAIN SYSTEM”, “FUSE” of this manual)
Fig.18
