2022 Owner’s Manual Eagle 8 BRIG ltd
55
BOAT INSTALLATION ON TRAILER.

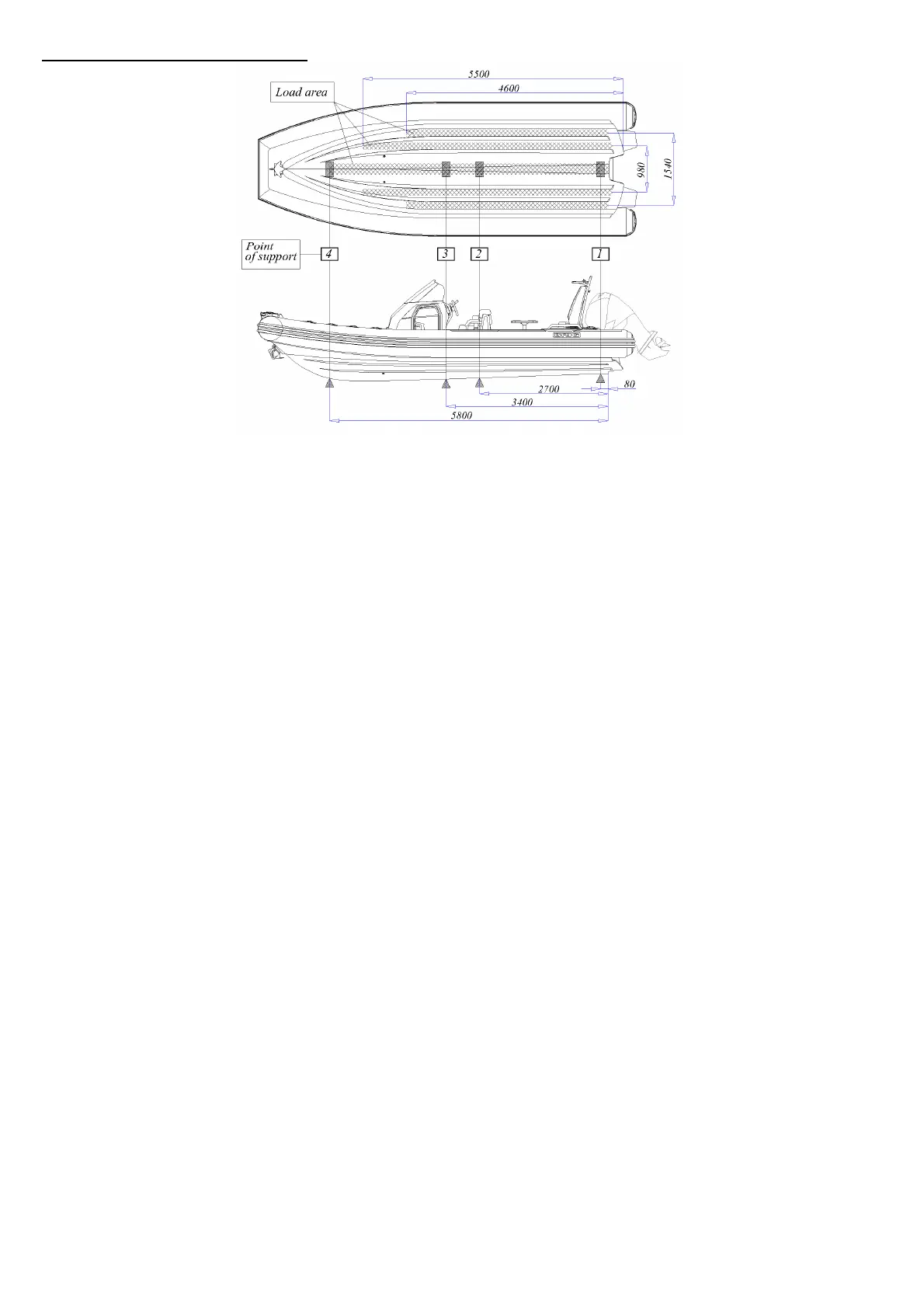

Fig.22
All dimensions are in mm. Permissible deviations +/- 30mm.
Maximum transportable mass: 2500 kg
Installed on a trailer (or on kell-blocks for storage) the boat should been laying on all surface of the Load area (Fig.22).
It is possible to install the boat on the Points of support (1), (2), (3), (4). Point of support (1) must be use always and
any other recommended points may be chosen by you depending on the trailer design.
But at least three Point of
support must be used at the same time.
We do not recommend using other boat hull surfaces other than those indicated as a support for transport on a trailer.
Other surfaces of the boat's hull cannot be used as primary reference surfaces. Use them as support against rollover.
NOTE: Never use a buoyancy tube to support a boat on a trailer or keel-blocks.
