BRIG Eagle Series - The Maine Dimensions 2

— 28 — BRIG
The main dimensions of Eagle 3.5 have tolerance of +/- 3%. All dimensions in meters.
The dimensions of the boat with the engine (parameters L1 and H3) can vary depending on the model of the engine and the angle of
its deviation. (See Fig. 13)

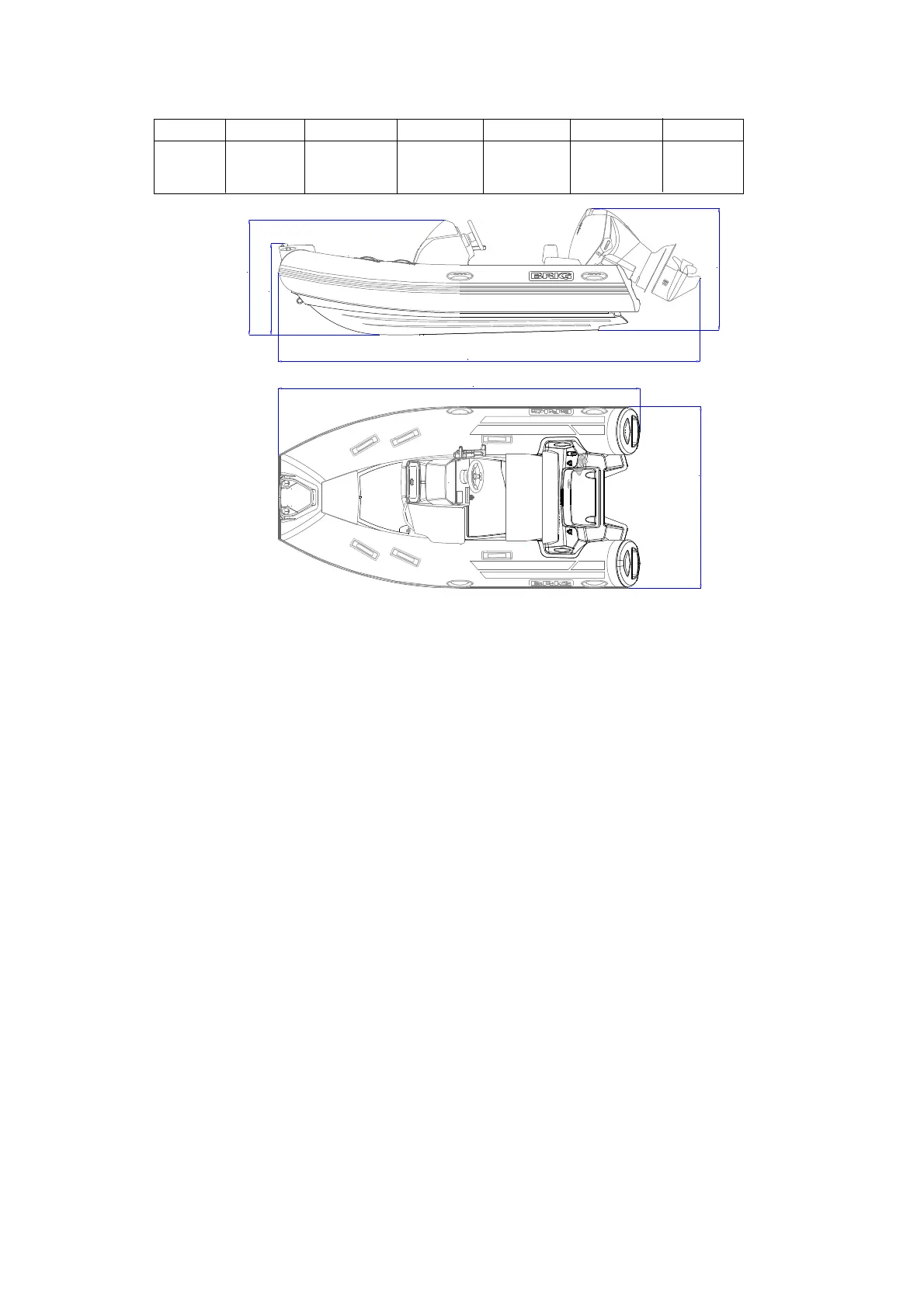

THE MAIN DIMENSIONS.
H3
H2
H1
L2
L1
B1
Fig.13
L1 (m) L2 (m) H1 (m) H2 (m) H3 (m) B1(m)
Eagle3.5 4.15 3.50 1.2 0.89 1.2 1.78
