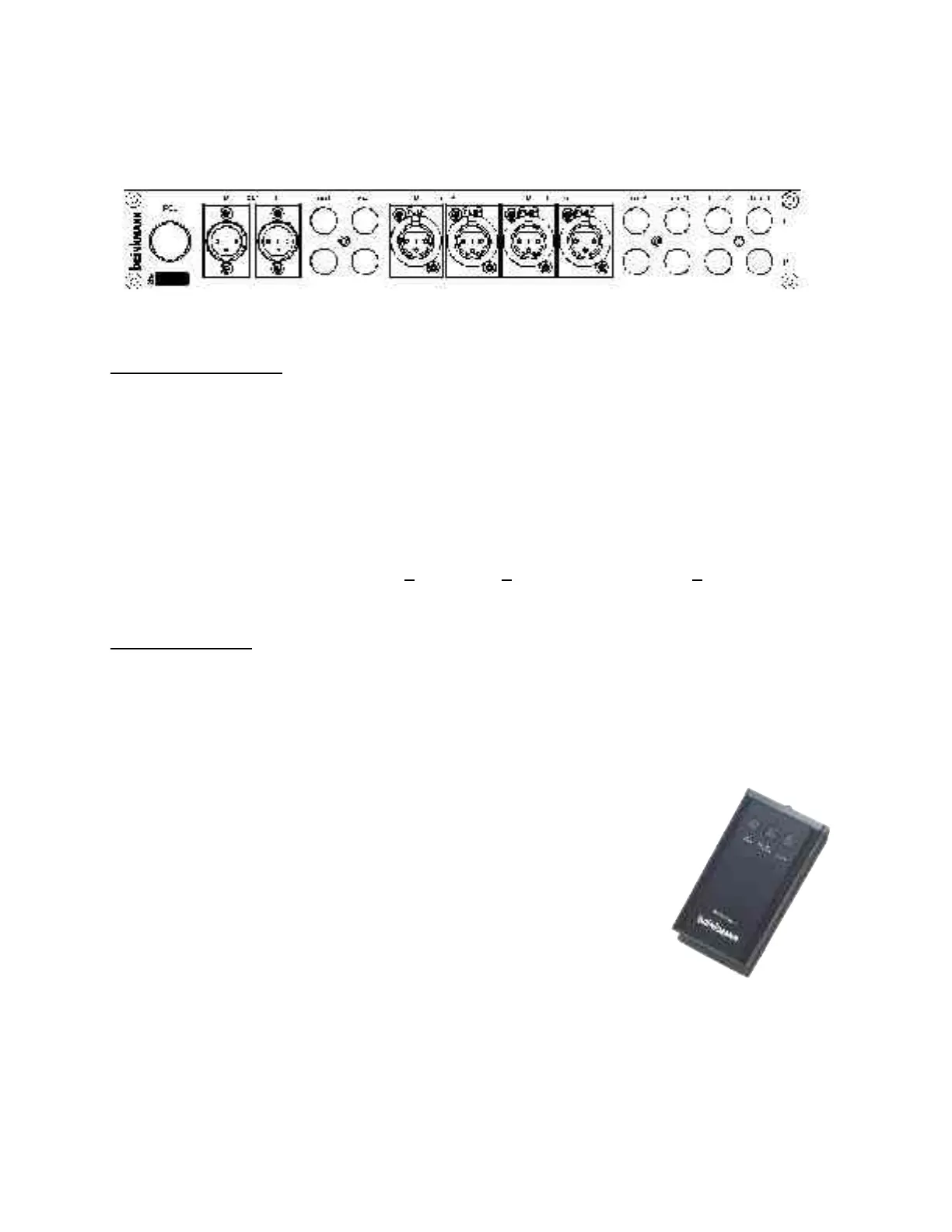

Inputs and Outputs :
four asymmetrical line-inputs, two symmetrical line-inputs,
a record-output,
an output for the power amplifier asymmetrical,
an output for the power amplifier symmetrical,
the connection for the extern power supply.
The asymmetrical inputs, the rec-output and the asymmetrical output are cynch-(RCA)-
sockets.
The pin-outs of the XLR-sockets are : 1= ground, 2= non inverting input, 3= inverting input
Remote Control :
The purchase of the integrated amplifier includes the remote control. It features three push
buttons for the functions (left to right) volume down, mute and volume up, for the volume
and stand by (mute), as well as two push buttons for the input selection e +, e --, and a sixth
push button phase fo inverting the output signal.
The sensor for the remote control is positioned under the glass plate in the front of
the amplifier, just behind the frontplate ; for an impeccable function of the
sensor it is essential to keep the glass plate clear from objects or
immediately adjacent shelves etc. on top of the amplifier.
To change the battery cells, please unscrew the remote control at its
back side, pull out the battery holder and replace the empty battery
cells by two new ones of the type AA according to the illustration in the
holder. Please push the battery holder completely back into the
remote control until the cover can be closed again easily.
>Used batteries are not to be thrown into household waste but be disposed at special waste
utilisation plants or collecting points according to the possibilities of your country.<
