25
NOTE: With the help of a friend, turn
the cart to its upright position.

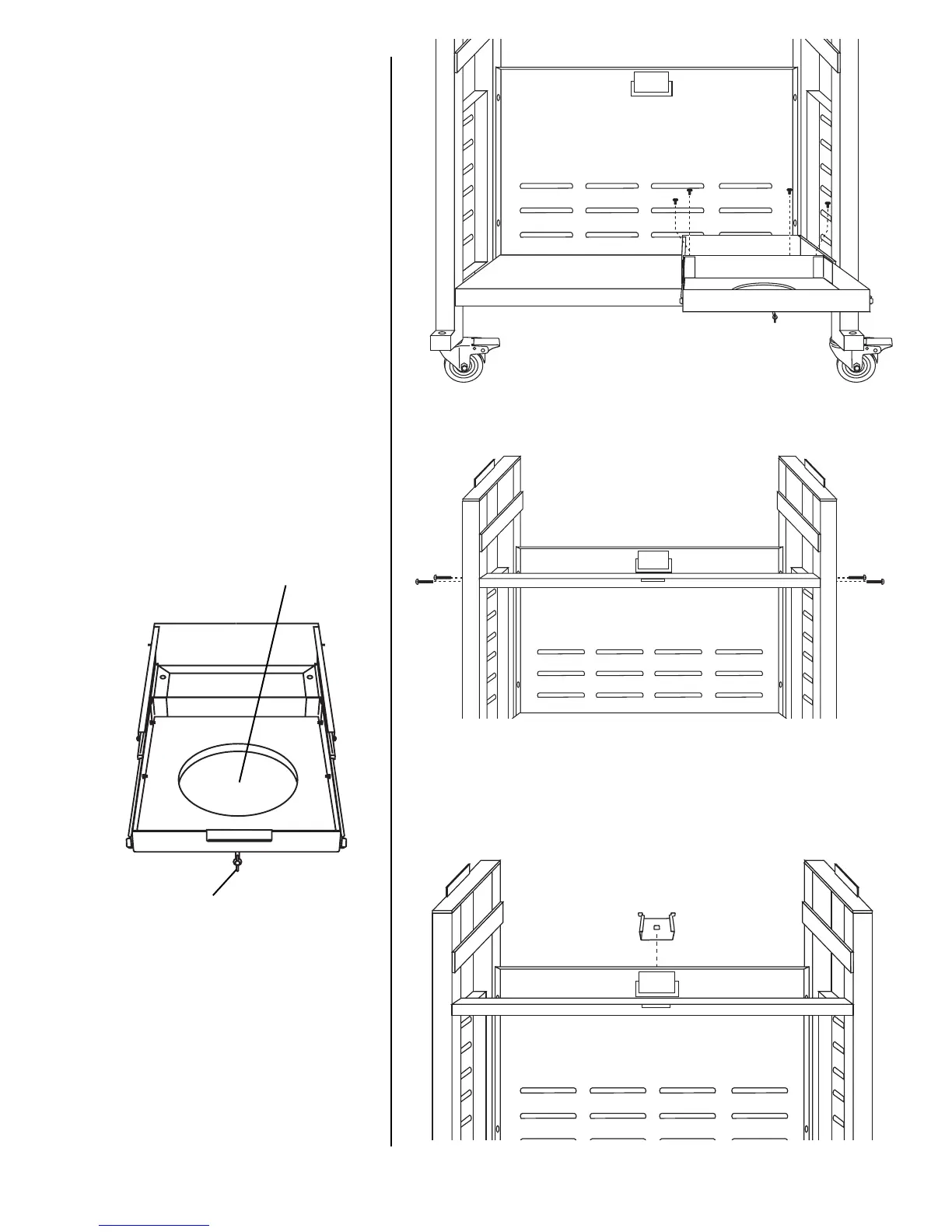

Step 4
Place tank tray assembly over vent
holes in bottom cart panel and
secure using four M6 X 15mm
bolts. Tank tray should slide in and
out of cart freely.
Step 5
Install door bracket using four
M6 X 50mm bolts. Make sure the
door stop is set toward back of cart.
(Hand tighten only at this point.)
Step 6
Attach the grease cup bracket onto
the back panel by inserting the
three tabs into the slots on the back
cart panel.
Cylinder Clamps
Center Cut-out
Tank Tray Assembly
To Next Page
