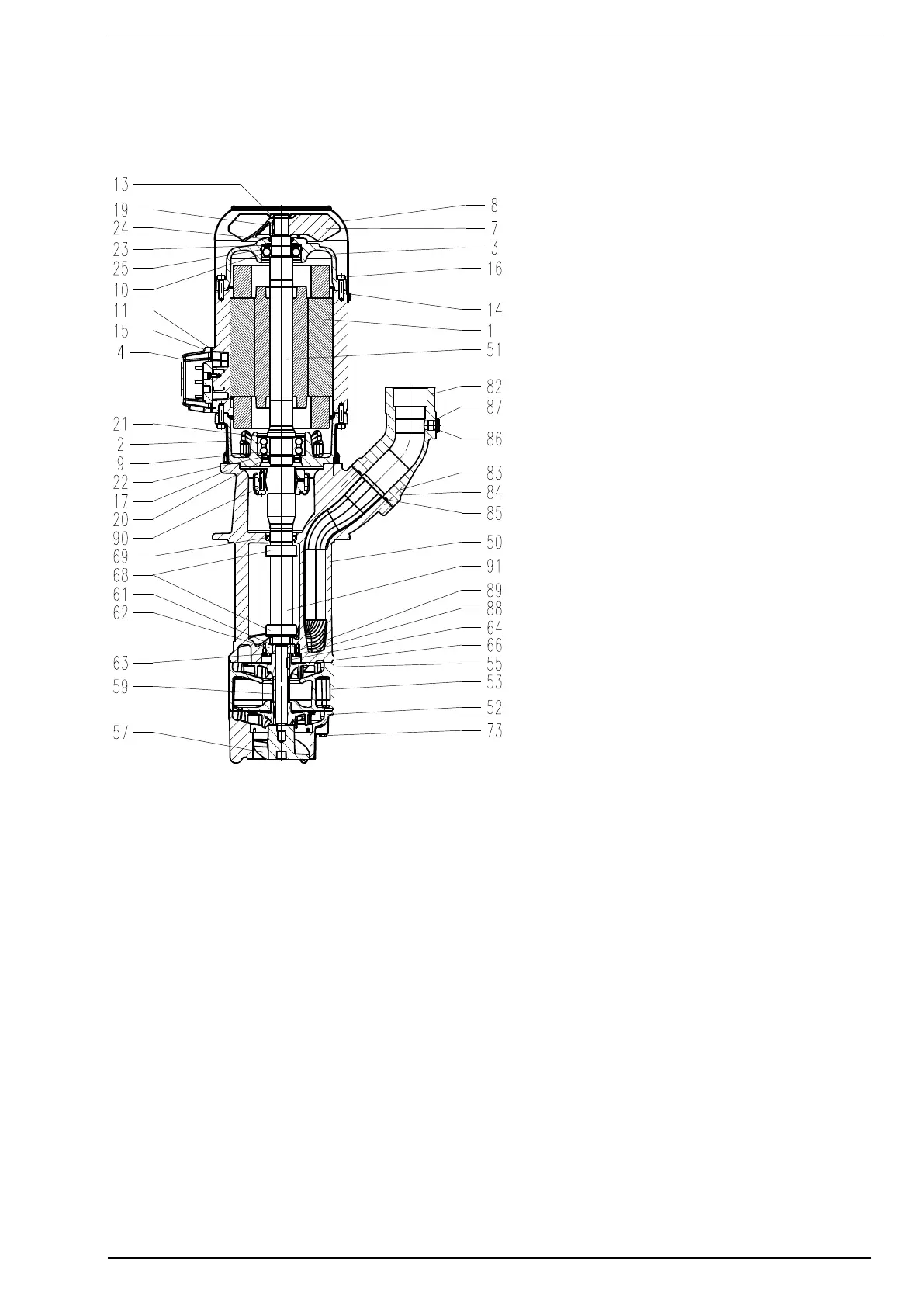

Item Description
1 Stator with terminal board
2 Motor flange
3 End shield
4 Terminal box
7 Fan
8 Fan cover
9 Ball bearing DIN 625
9 Ball bearing 1.3…2.2 kW DIN 628
10 Ball bearing DIN 625
11 Gasket
13 Retaining ring
13 Retaining ring 1.3…2.2 kW DIN 471
14 Thread rolling screw up 1.3 kW DIN 7500
15 Slotted cheese head screw DIN 84
16 Stud bolt with bond
up to 1.1 kW
16 Socket head cap screw DIN 912
up 1.3 kW
17 Socket head cap screw DIN 912
19 Parallel pin DIN 7
20 Shaft seal
21 Retaining ring DIN 472
22 Retaining ring DIN 471
23 Compensation disk up 1.3 kW
24 Shaft seal
25 O-ring up 1.3 kW
50 Pump body
51 Shaft with rotor
52 Intake cover
53 Pump plate up SGL332, 502
55 Impeller
57 Suction screw
58 Extension pump body
up 770 mm depth of immersion
59 Distance liner
61 Running sleeve
62 Bearing bush
63 Distance plate
64 Woodruff key DIN 6888
66 O-ring
up 770 mm depth of immersion
67 O-ring
68 Splash ring
69 Shaft seal
73 Hexagon head cap screw DIN 931
78 Socket head cap screw DIN 912
up 770 mm depth of immersion
82 Joining socket
83 Socket head cap screw DIN 912
84 Spring washer DIN 7980
85 O-ring
86 Screw plug DIN 908
87 Sealing ring DIN 7603
88 Serrated lock washer
89 Flat head screw DIN 7991
90 Shaft clamp
2 x up 770 mm depth of immersion
91 Insert shaft
92 Extension shaft
up 770 mm depth of immersion
