BRIO 612 - Screen Replacement; Remove Channel Covers; Remove Cassettes

ANCHOR
BLOCKS
INSTSCREEN | Rev | |3 C Feb 2020 12
19. Corner Screen Application
WOOD FASCIA
WOOD FASCIA
Cassette Fitting
Open Joint Frame
Handlebar and Seal Fitting
W1
W2
HANDLEBAR
WS-HD EXCP
HANDLEBAR
COVER
i INSERT
ii CUT
⁄ ()15
PB48850
BRUSH SEAL
A.
A.

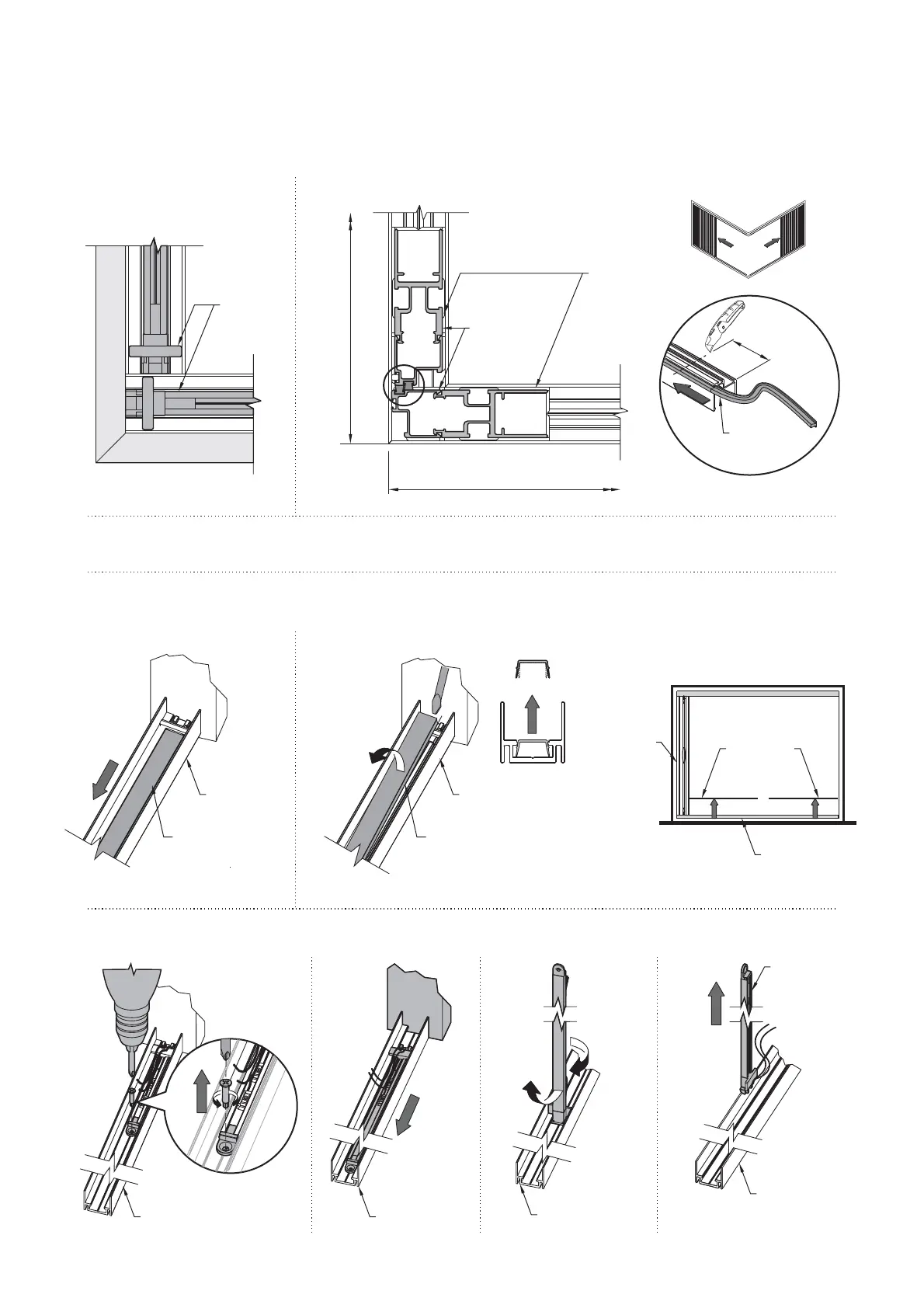

Screen Replacement
1. Remove Channel Covers
REMOVE
PIVOT
SLIDE
JAMB
i. ii.
RSJ
JAMB
MOUNTING
EXTRUSION
RSC
CHANNEL
WS-COVEXP
CASSETTE
EXTRUDED
COVER
JAMB
RSC
CHANNEL
WS-COVEXP
CASSETTE
EXTRUDED
COVER
WS-COVEXP
CASSETTE
EXTRUDED
COVER
TRACK (RST or RSTT)
RSC
CHANNEL
2. Remove Cassettes
i. ii.
REMOVE
iv.
B
B
iii.
CASSETTE
ASSEMBLY
RSC
CHANNEL
RSC
CHANNEL
A
ROTATE
PIVOT
A
A
JAMB
SLIDE
AA
BB
RSC
CHANNEL
JAMB
RSC
CHANNEL
W1 and W2
