Cargo Bed Installation

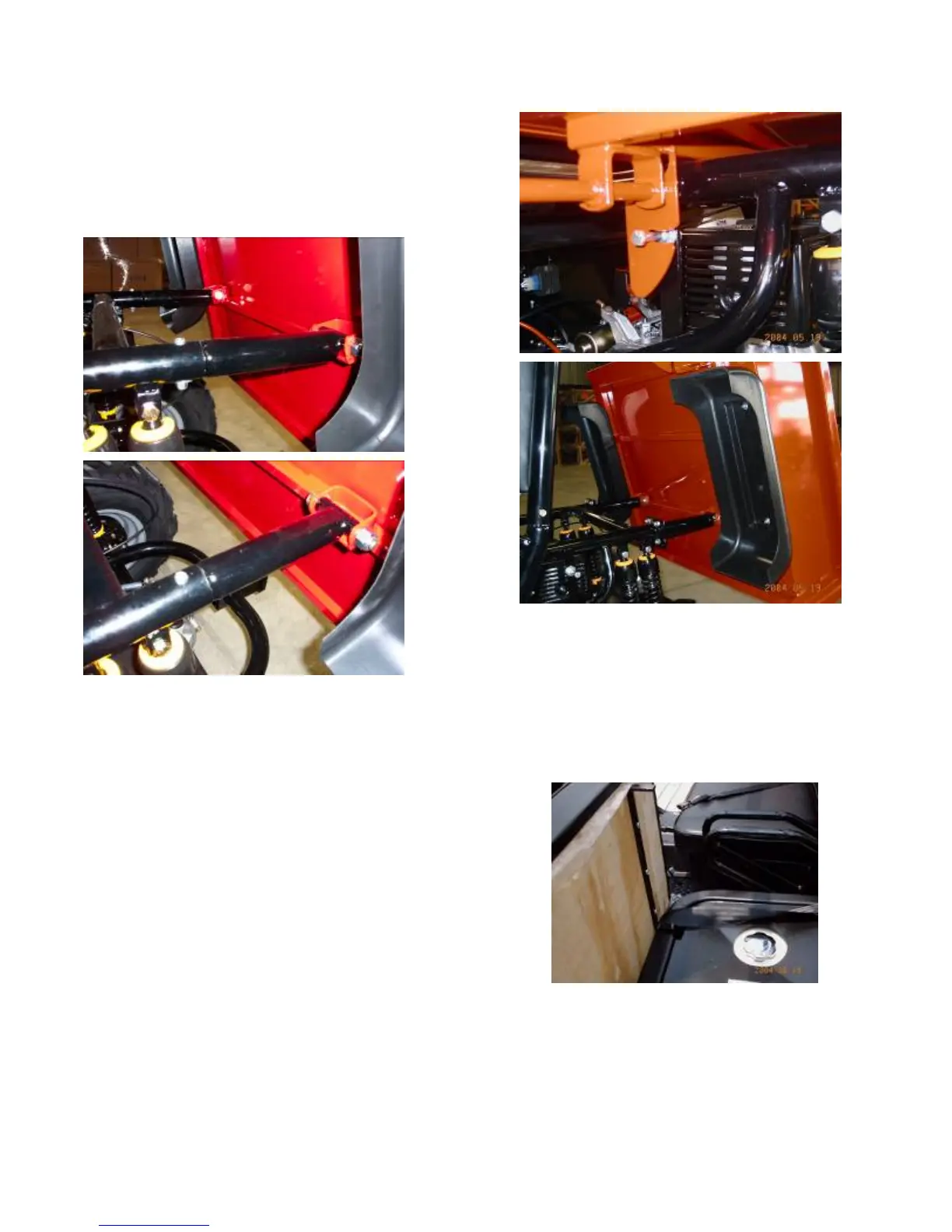

1) Locate rear frame stubs at the rear of frame.
The bed pivot tube on the stub should be at
the top. Insert 5/16” x 2” socket head bolt.
Loosely install 5/16” center lock nut (do not
tighten until after cargo bed is installed)
2) Place the cargo bed on the vehicle and insert a
5/8” x 4” hex head bolt through each pivot
bracket and frame stub tube.
3) Tighten both 5/16” frame stub bolts and nuts.
4) Install the 5/8” nylock nuts on the pivot bolts.
Tighten the pivots and then loosen ¼ turn.
5) Loosen the bed latch pin bolt on the frame just
enough for it to slide in the adjustment slot.
(shown in upper right photo)
6) Close the bed and position the latch pin bolt so
to
prevent rattles. Tighten the latch pin.
that it is at the bottom of the latch slot
7) Fenders installation (if Equipped, no fenders
on TW265) Tilt the cargo bed up. Line up the
holes in the rear fenders with the square holes
in the bed. The raised rectangular surface on
the fender should be completely hidden under
the bed. If not, turn the fender around. Insert
a ¼” x ¾” carriage bolt through the bed and
into the fender. Fasten with a ¼” flat washer
and a ¼” nylock.
Sea a
1) Pl ed to seat base under front seat
t B se Installation
ace tabs attach
frame bar (if equipped into slots in plastic tray), fold
seat base into position. (if equipped The rear tabs
sh
tray)
ould fall into the slots in the rear of the plastic
13
