15-25kg
Installing the child seat
IMPORTANT - The child seat MUST only be used with a lap and diagonal
seat belt (approved to UN/ECE regulation no. 16 or equivalent standards).
IMPORTANT - Do not use any load bearing contact points other than those
described in the instructions and marked in the child restraint.

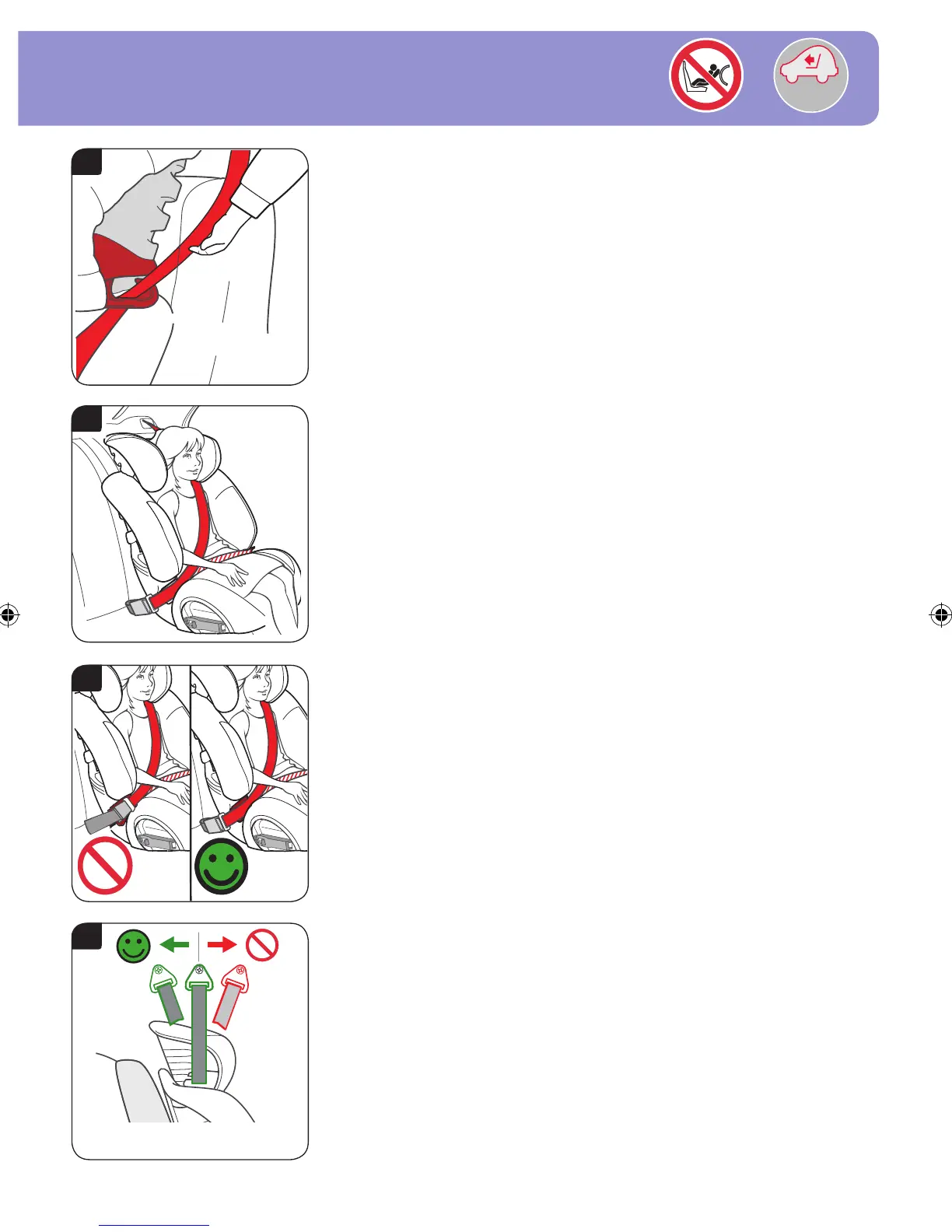

Place the child seat forward facing in your car.
Feed the diagonal section of the seat belt through the dark red upper belt
guide on the OPPOSITE side to the buckle (dia 6i).
Fasten the seat belt across your child (dia 6j). The lap section should rest on
the red lap belt guides on each side of the child seat. Make sure the seat belt
is not twisted and remove any slack.
IMPORTANT - The lap section of the seat belt should rest as forward and as
low as possible over your child’s pelvis.
6i
6j
IMPORTANT - Check the position of the seat belt buckle, ensure that it is not
being pulled around the child seat on to the red lap belt guide (dia 6k).
6k
Check the position of your vehicle’s upper seat belt anchorage point (dia 6l).
If this anchorage point is in front of the child seat it should not be used, try
another seating position in the car.
6l
