500 Mbps Powerline Bridge (BVP-5100)

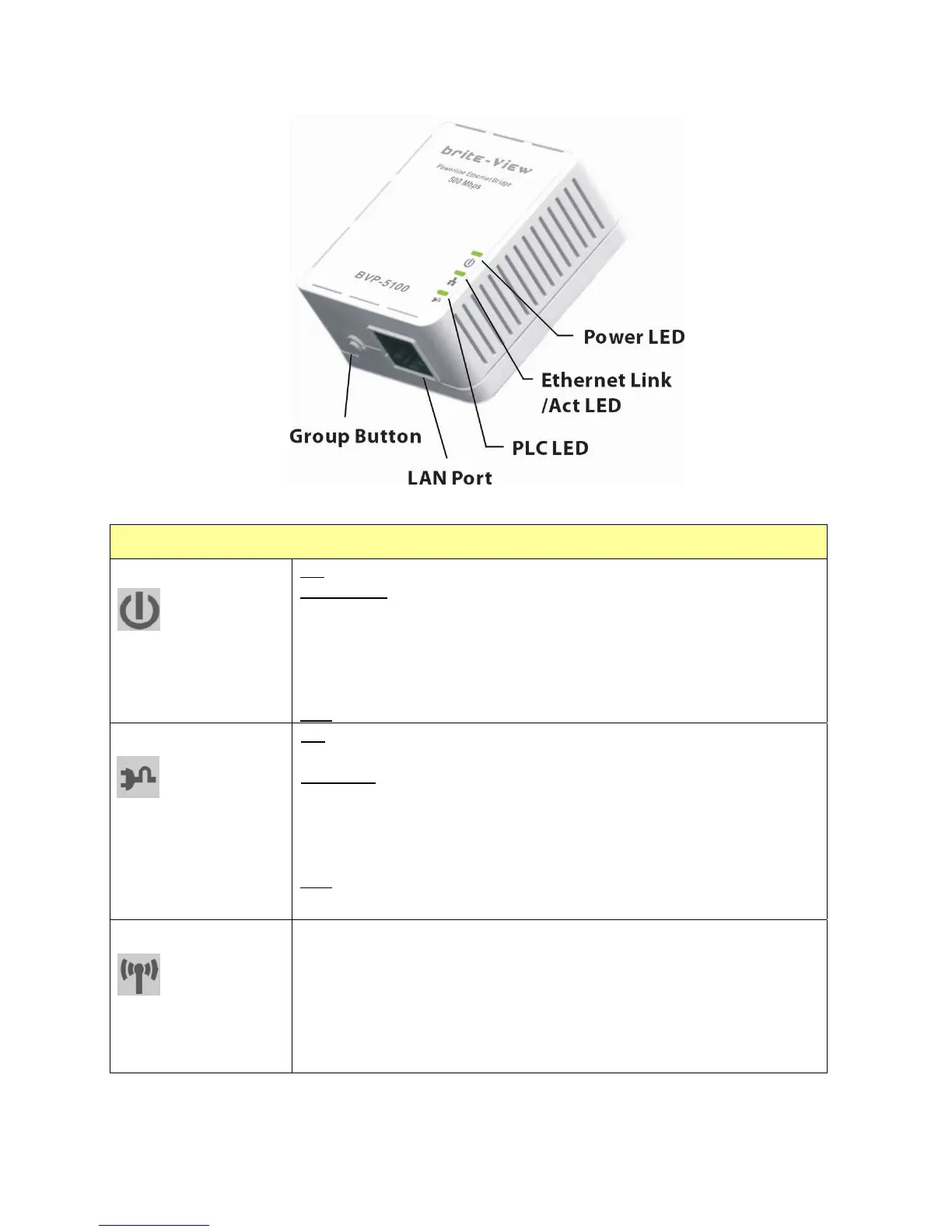

LEDs
Power LED
Green
ON
: Power on and ready.
BLINKING:
During group pairing procedure (creating an encrypted PLC
network). In this procedure, the device is creating or being joined into
same logical network and will continue 2 minutes blinking, until the
procedures succeed or canceled. To enter or cancel group pairing
procedure, just press the group button 2~3 sec.
OFF
: Power off.
PLC LED
Green
ON
: Powerline link with other PLC device but no powerline traffic.
BLINKING
:
1. Fast blinking: Powerline data rate higher than 80Mbps.
2. Normal blinking: Powerline data rate between 40Mbps to 80Mbps.
3. Slow blinking: Powerline data rate slower than 40Mbps.
OFF
: Powerline link not detected (either other devices in same network is
too far to communicate or it is alone in its logical network).
WLAN Link / Act LED
Green + Red
Steady Green: Wi-Fi active under security protection
Flash Green: Wi-Fi transmits packets under security protection,
Steady Red: Wi-Fi active under NO security protection,
Flash Red: Wi-Fi transmits packets under NO security protection,
Blinking Green: WPS negotiation
OFF：Wi-Fi off
