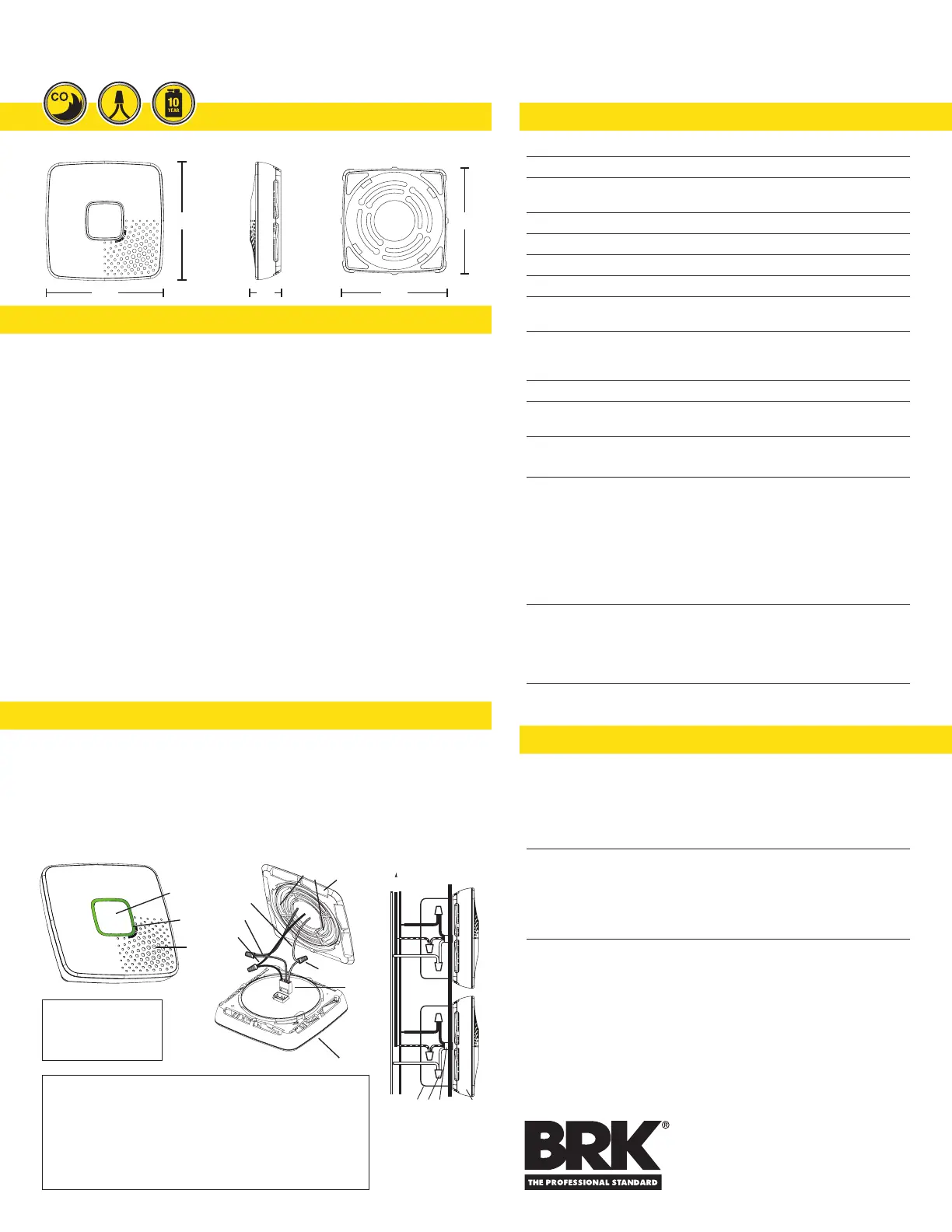

BRK electronic SC7010LBLV - Architectural and Engineering Specifications; Technical Specifications; Shipping Specifications; Installation of Alarm

SIDE VIEW
1.4"
MOUNTING
BRACKET
4.94"
4.94"
5.4"
5.4"
TOP VIEW
ARCHITECTURAL AND ENGINEERING SPECS
INSTALLATION OF ALARM
The combination smoke and carbon monoxide alarm shall be a BRK Model SC7010LBLV and shall
provide at a minimum the following features and functions:
1. A photoelectric smoke sensing chamber and an electrochemical CO sensor both with a 10 year
service life.
2. Powered by 120V AC, 60Hz and have a 10-Year Sealed Lithium Battery backup and a solid state
piezo horn rated at 85dB at 10 ft. and shall be capable of self restoring.
3. A Voice Warning of Smoke or Carbon Monoxide detected in addition to speaking 13 pre-
programmed locations, e.g. “Warning, Evacuate, Smoke in Basement”
4. The unit shall have an “End of Life” signal (5 chirps). This signal should be capable of temporarily
being silenced for up to 2 days. After about 2 days, the signal will resume. After about 2-3 weeks
the signal cannot be silenced.
5. A visual power-on indicator to conrm unit is receiving AC power or has switched to battery
backup mode. Separate LED ‘s to indicate a smoke or CO alarm.
6. The CO sensor is adjusted not to detect CO levels below 30 PPM and will not alarm when exposed
to constant levels of 30 PPM for 30 days. It will alarm at the following levels: 400 PPM CO between
4 and 15 minutes, 150 PPM CO between 10 and 50 minutes and 70 PPM CO between 60 and
240 minutes.
7. Two Latching features: Alarm Latch to easily identify initiating alarm after alarm condition has
subsided. End of Life Battery Latch: to visually identify which unit is in low battery condition.
Silence Features: Alarm Silence to temporarily silence nuisance alarms.
8. Sealed battery backup compartment. g bracket.
9. The unit shall be capable of operating between 40°F (4°C) and 100°F (38°C) and relative humidity
between 10% and 95%.
10. The unit shall have a plug in connector and be capable of interconnection of up to 18 alarms, 12
of which can be smoke alarms.
11. The unit shall at a minimum meet the requirements of UL217 and UL2034, CSFM, NFPA 72 and
720 and the ICC.
Installation of this smoke alarm must conform to all local electrical codes and Article 760 of the National
Electrical Code (NFPA 70) and NFPA 72. Interconnected units must meet the following requirements:
Total length of wire interconnecting units should be less than 1000 feet, be #18 gauge or larger and
be rated at least 300V. It is recommended that all units be on the same fuse or circuit breaker. If local
codes do not permit, be sure the neutral wire is common to both phases.
©2019 BRK Brands, Inc. All rights reserved. Distributed
by BRK Brands, Inc. 3901 Liberty Street, Aurora, Illinois
60504. BRK Brands, Inc. is a subsidiary of Newell
Brands Inc. (NASDAQ: NWL). BRK is a registered
trademark of BRK Brands, Inc.
www.brkelectronics.com
INSTALLED/BOTTOM OF ALARM
1. Alarm
2. Ceiling or Wall
3. Quick Connect Plug
4. Wire Nut
5. Junction Box
6. Neutral Wire (White)
7. Interconnect Wire (Orange)
8. Hot Wire (Black)
9. Mounting Bracket
10. Mounting Slots
A. From un-switched 120V AC 60 Hz source
B. To additional units; Maximum = 18 total (Maximum 12 Smoke Alarms)
TOP OF ALARM
1. Test Silence Button
2. Color Indicator Ring
3. Speaker/Alarm Horn
THE PARTS OF THIS ALARM
1
3
2
3
7
6
10
4
8
1
9
}
}
678
5A
B
4 3 2 1
INSTALLED/BOTTOM OF ALARMTOP OF ALARM
TECHNICAL SPECS
Alarm Dimensions: 5.4"W x 1.4"D x 5.4"H
Weight:
1
0.6 oz
Operating Voltage: 120V AC 60Hz with 3V Sealed Lithium
b
attery backup
Power (Standby/Alarm): 0.012 A / 0.065 A
Temperature Range:
4
0°F (4°C) to 100°F (38°C)
Humidity Range: 10% to 95% relative humidity (RH)
Audio Alarm:
8
5dB at 10 feet
Voice Output: Choice of 13 pre-programmed locations warns of
smo
ke or CO danger and location of danger.
Test/Silence: Electronically simulates smoke or CO condition,
c
ausing the unit to alarm. Press and hold
test/silence button.
Alarm Reset:
A
utomatic when smoke or CO clears
Interconnections: Up to 18 units of First Alert or BRK Smoke, CO and
H
eat Alarms. Maximum of 12 smoke alarms.
Smoke Sensor: Photoelectric
CO Sensor: Electrochemical
Indicator Lights/Sounds:
AC Power:
C
onstant Clear LED Light
DC Power:
I
ntermittent Clear LED Light
Local Alarm:
R
ed LED ashes, Voice: “Smoke” or “CO”
with location
Remote Alarm: Red LED off, Voice: “Smoke” or “CO”
w
ithout location
Latching Alarm Indicators:
Smoke Alarm:
R
ed LED 2 seconds ON, 2 seconds OFF
CO Alarm:
B
lue LED 2 seconds ON, 2 seconds OFF
Battery End of Life:
G
reen LED 2 seconds ON, 2 seconds OFF
Listing:
C
onforms to UL STD 217 & UL STD 2034
SHIPPING SPECS
Individual Carton Dimensions: 5.8"W x 1.8"D x 6.3"H
Weight:
0
.73 lbs.
Cube: 0.04 ft
UPC:
0 2
9054 02109 0
Master Carton Dimensions:
M
aster Pack:
Weight:
I
2of5:
12.375"W x 6.25"D x 7
.13"H
6
5.8 lbs.
100 29054 02109 7
Pallet Information:
Cases per Layer:
2
1
Number of Layers: 6
Cases per Pallet:
1
26
Units per Pallet: 756
Cube:
5
3.06 ft
Weight: 845 lbs.
CAT.
1042 734
MODEL.
S C 7010 L B LV
