BRKT ARM3780HD - Drill Pilot Holes and Mount Wall Plate; Step 3 B: Solid Concrete Installation; Prepare for Concrete Wall Mounting

P 8
Mount wall plate
Coloque la placa de pared
Montez la plaque murale

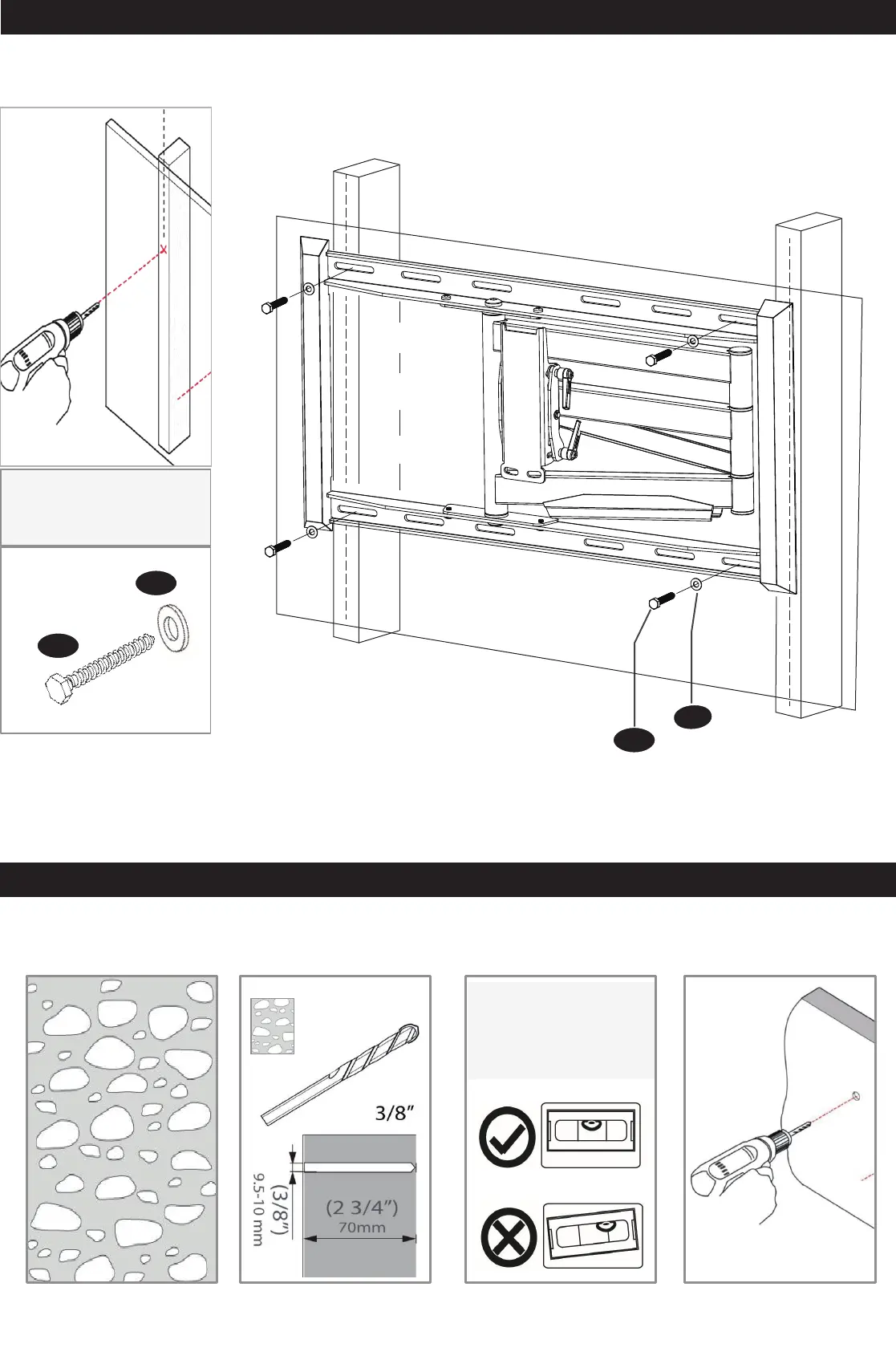

STEP 3A – DRILL PILOT HOLE AND MOUNT WALL PLATE AND ARM ASSEMBLY
Secure lag bolts with
steel washer to Wall
Plate
12
12
13
STEP 3B – SOLID CONCRETE INSTALLATION
DRILL BIT
NOT INCLUDED
LEVEL WALL PLATE
WITH INCLUDED
BUBBLE LEVEL AND
MARK HOLES FOR
DRILL BIT PILOT HOLE
Drill pilot hole
Realice el agujero piloto
Percez le trou de guidage
Solid Concrete
Concreto sólido
Béton massif
Drill Bit
S. broca
Foret
Level
Nivelado
Level
13
