Bluetooth Module for 3D TV
Version 1.0 Samsung Electronics page 4 of 6
5. Pin description
1.Reset : it is used to hardware reset
2. Vcc : it is used to 5V power supply input.
3. USB D- : USB nagative interface.
4. USB D+ : USB positive interface.
5. GROUND
6. 3D_SYNC_IN : sink signal input from 3D_TV
7. 3D_SYNC_OUT : sink signal output to 3D_TV
6. Installation
This radio module must be installed in a device and not allow the user to replace nor modify it.
And the location of installation is as follows Figure 6-1.

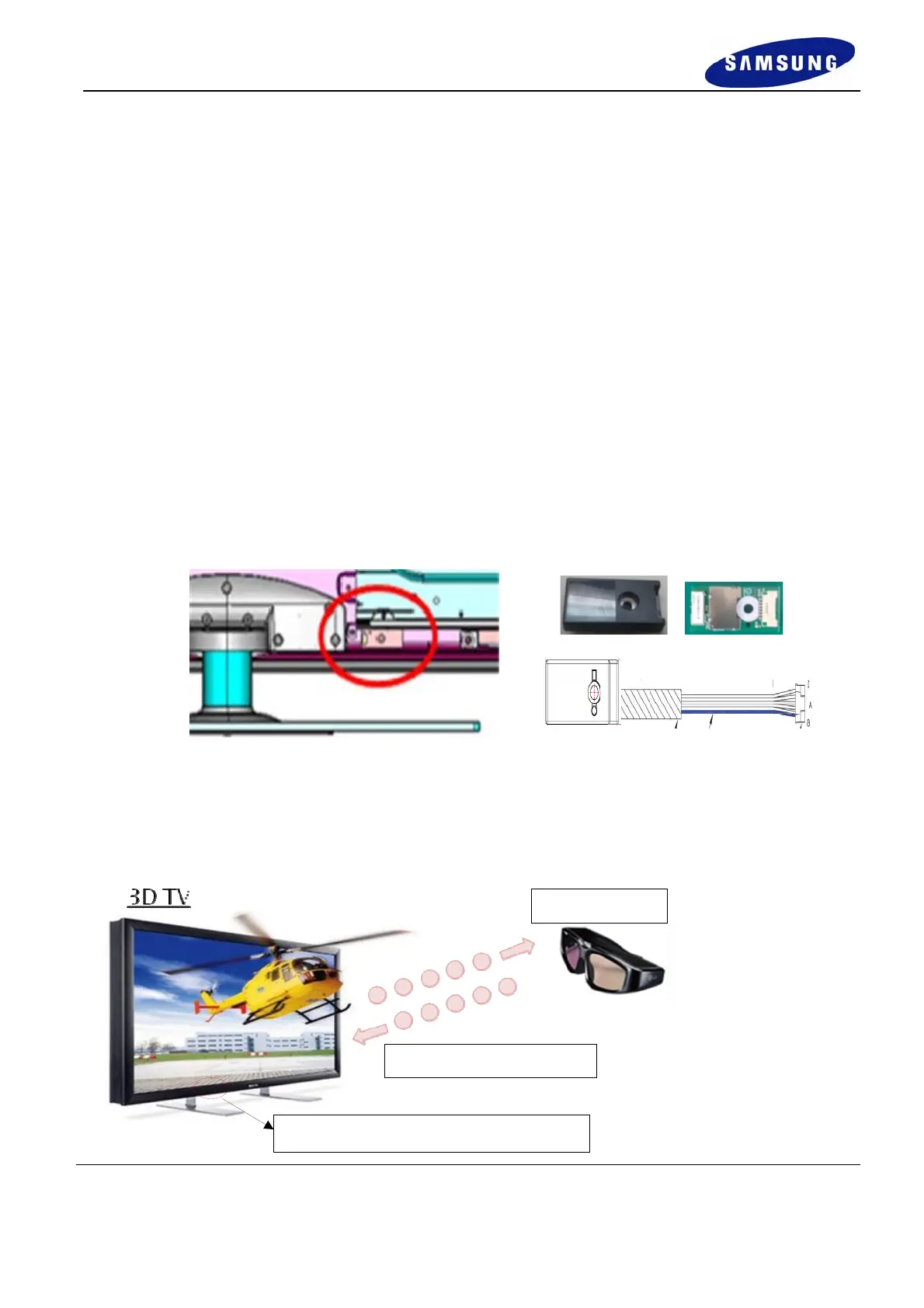

Figure 6-1 The location of installation
7. Brief
This radios system block diagram is as follows figure 7-1
Bluetooth communications
3D Glasses
48/50/60HZ sink signal
ACK signal
This location of BT module for 3D TV
