* Standard Hardware. May be
purchased locally.
Order service parts by "PART
NO." - NOT by "KEY NO."
MODEL 506 MODELS 507
PART NO. PART NO.
KEY
DESCRIPTION NO.
Door Assembly 1 97007002 97007003
Door Spring 2 99140147 99140147
1/8 x 1 Cotter Pin (2 Req.)* 3 99410005 99410005
Door Arm 4 98006067 98006067
Chain 5 99450101 99450101
Push Nut (2 Req.) 6 99420478 99420478
Outer Housing 7 97007095 97007091
Inner Housing 8 97013673 97010379
#8-18 x 3/8 Serrated Head 9 99170245 99170245
Tapping Screw w/Type B Point
(2 Req.)*
Switch Trigger 10 99390035 99390035
Receptacle 11 99270982 99270982
Switch 12 99030157 99030157
Wiring Box Cover 13 98007823 98007823
#10-32 x 1/2 Binder Head 14 99150471 99150471
Tapping Screw w/Type F Point*
Wiring Box 15 98006046 98006046
Grille Bracket 16 98008494 98007819
Pendant 17 99110563 99110563
Wear Plate 18 98007825 98007825
Grille (Polymeric) 19 99110977 99110916
Motor Nut (2 Req.) 21 99260425 99260428
#8-32 x 1/2 Tapping Screw w/ 22 99150479 99150479
Type 23 Point (2 Req.)*
1/4-20 U-Type Sheet Metal 23 99420479 99420479
Nut (2 Req.)*
Motor Bracket 24 98006066 98007820
Motor 25 99080596 99080176
Fan Blade 26 99020271 99020165
Door Hinge Rod 27 98006073 98006073
#8-15 x 1/4 Serrated Head 28 99150417 99150417
Tapping Screw w/Type A Point
(3 Req.)*
Grille Knob 29 97011918 97011918
Grille Stud 30 99420580 99420585

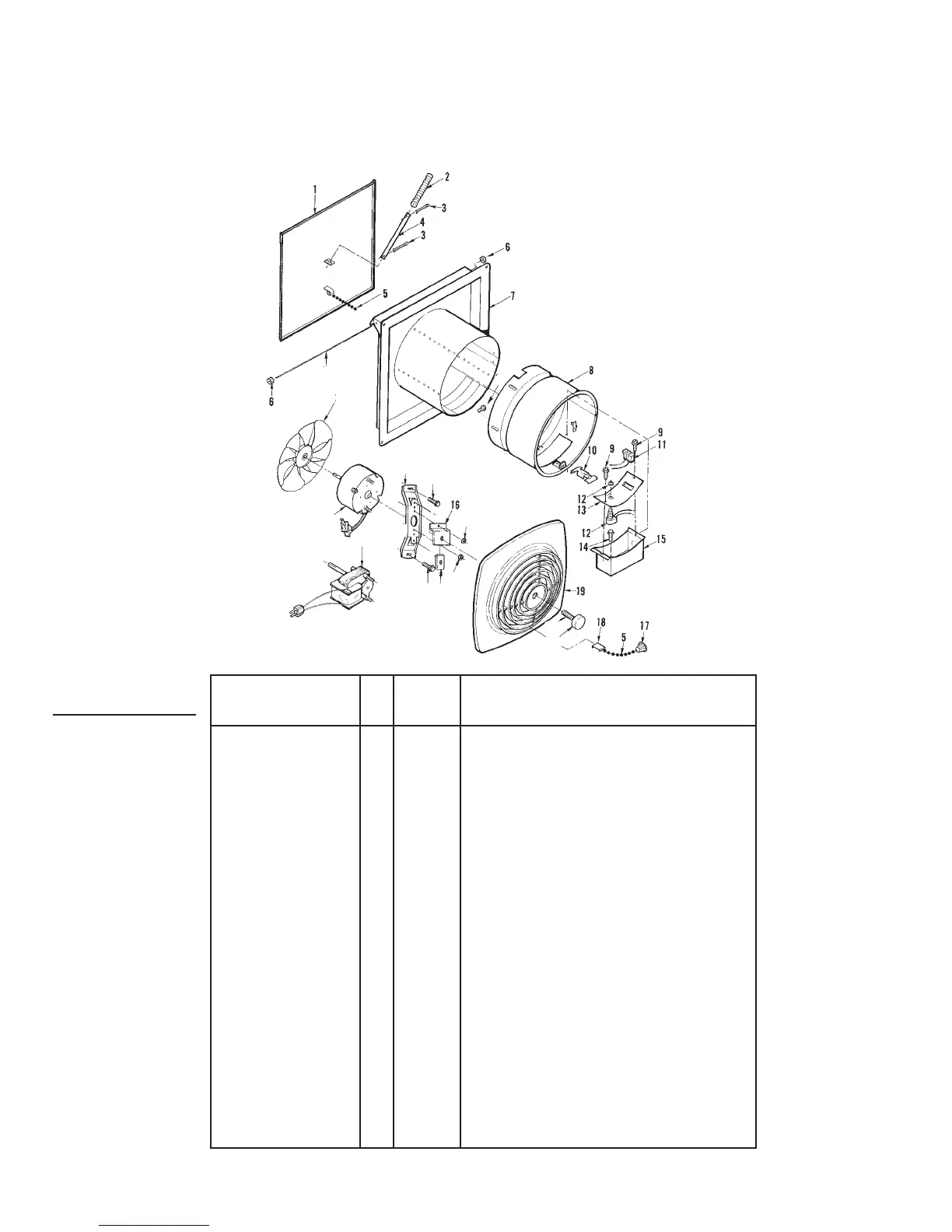

SERVICE
PARTS
MODELS 506 & 507
(506)
(507)
27
26
25
24
22
21
21
23
29
25
22
30
28
