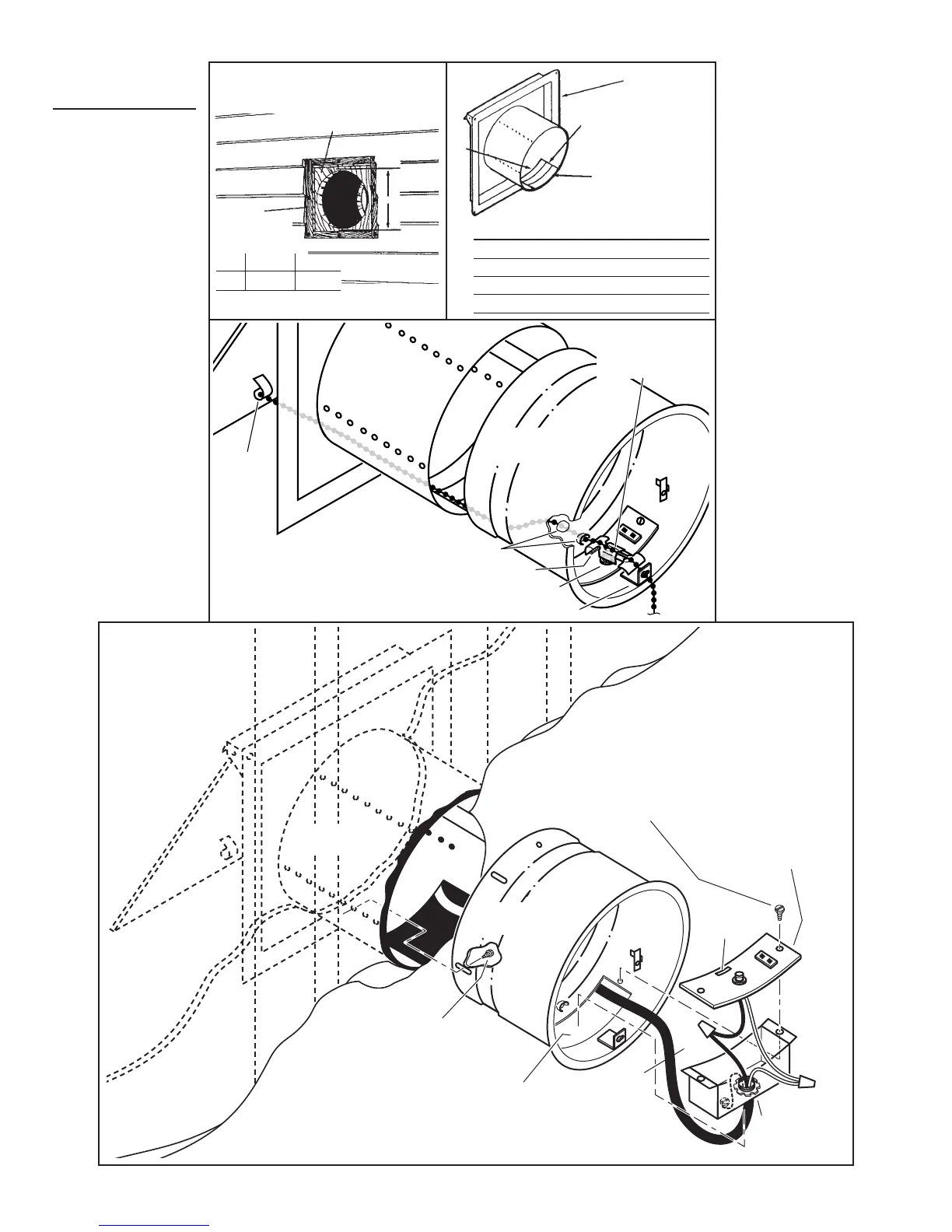

FIG. 7
WALL SHEATHING
CASING
STRIPS
506 507
A 10-1/4" 8-1/4"
26,03 CM 20,95 CM
FIG. 8
IF WALL IS THICK
REMOVE THESE KNOCKOUTS
4
1
/
2
" TO 6" A, B AND C
11,43 A 15,24 CM
A, B Y C
6" TO 7" A AND B
15,24 A 17,78 CM
A Y B
7" TO 8" A
17,78 A 20,32 CM
A
8" TO 9
1
/
2
" NONE
20,32 A 24,13 CM
NINGUNO
OUTER HOUSING
A
B
C
USE AND
CARE
DISCONNECT ELECTRICAL
POWER SUPPLY BEFORE
SERVICING FAN.
Always unplug the fan motor
before servicing the fan. The
motor bearings on this fan are
permanently lubricated and will
never need oiling.
Clean the fan blade and motor
every six months by removing
the grille, unplugging the motor
and gently vacuuming the fan
blade and motor.
Clean the grille in warm, soapy
water. Use a mild detergent,
such as a dishwashing liquid.
DO NOT USE ABRASIVE
CLOTHS, STEEL WOOL OR
SCOURING POWDERS.
FIG. 10
INNER HOUSING
WIRING BOX
WIRING BOX
COVER
POWER
CABLE
WIRING BOX
OPENING
SLOT
#8 X ¼ SHEET
METAL SCREW
(3 places)
#8 X 3/8 SHEET METAL
SCREW (2 places)
OUTER HOUSING
EMBOSS
TAB & SLOT
SWITCH
CHAIN LOCK
OUTER HOUSING
INNER HOUSING
SWITCH TRIGGER
FIG. 9
