- 7 -

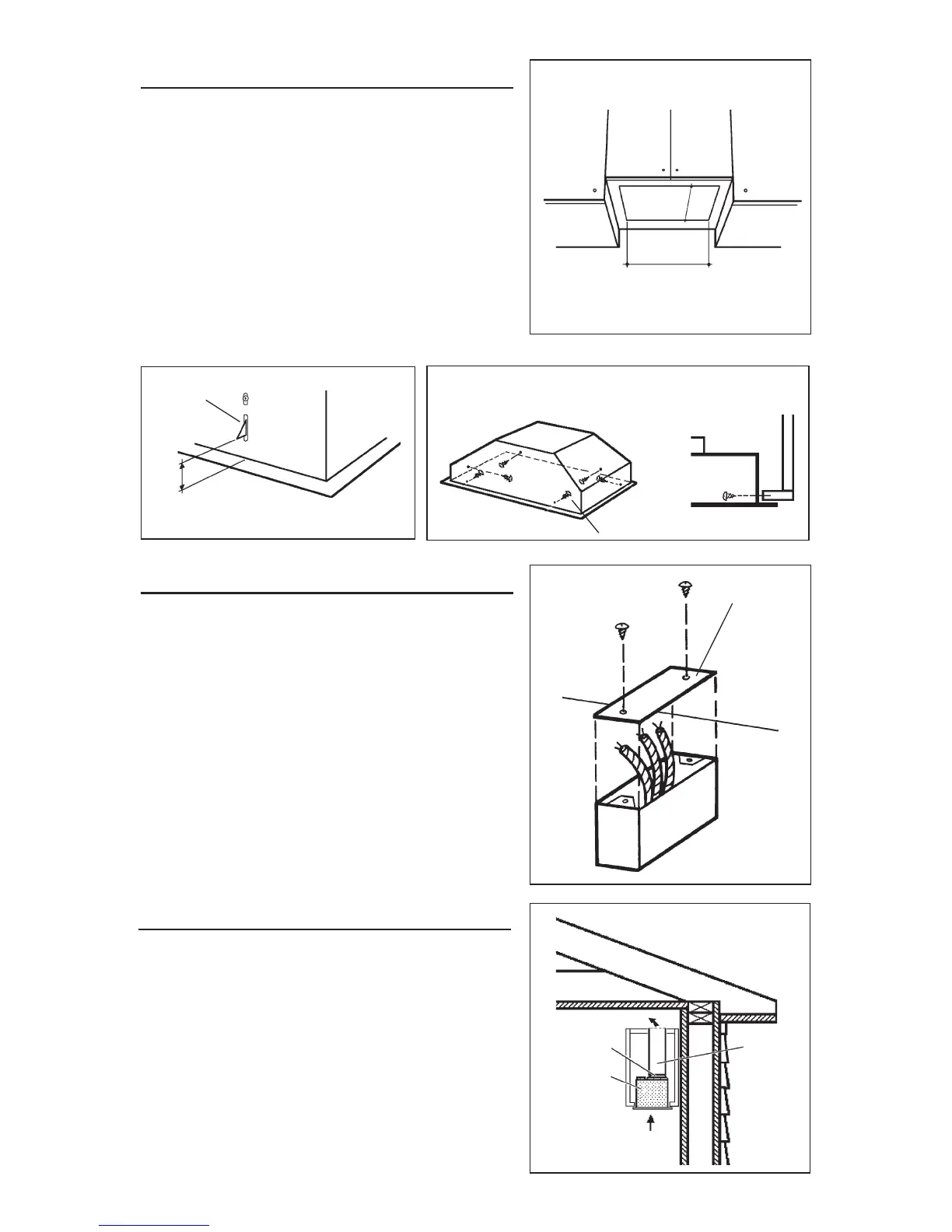

INSTALL THE HOOD
1. Cut a hole in the bottom of the cabinet in
order to settle the hood.
2. To install the hood, adjust the position of the
clasping side spring by means of the proper
screws, according to the thickness of the
bored panel to which it is going to be
anchored.
3. Insert the hood in the cabinet and lock it by
means of the side spring.
4. Use the holes which have already been
made in the casing of the hood to definitively
fix it by means of the 6 mounting screws (B)
- 3.2x16mm.
WIRING
Note: This range hood must be properly
grounded. The unit should be installed by a
qualified electrician in accordance with all
applicable national and local electrical codes.
1. Remove the wiring box cover. Remove a
knockout from the wiring box.
2. Secure the conduit to the wiring box
through a conduit connector.
3. Make electrical connections. Connect white
to white, black to black and green to green.
4. Replace wiring box cover and screws. Make
sure that wires are not pinched between
cover and box.
CUT A HOLE IN THE BOTTOM OF
THE CABINET
WIRING BOX
COVER
A= min 7/16”-max 13/16”
CONNECT DUCTWORK
1. Use 6" round metal duct (8” for version 2
motors) to connect the duct connector on
the hood to the ductwork above.
2. Use duct tape to make all joints secure and
air tight.
3. For Ductfree configuration: to the duct
connector of the hood, connect a proper
ductwork (6”) that can convey the air to the
upper part of the pensile cupboard.
DUCTFREE CONFIGURATION
DUCT
CONNECTOR
HOOD
24” TO 30” ABOVE
COOKING SURFACE
6” ROUND
DUCT
CLASPING SIDE
SPRING
A
B
X= 19-1/2” FOR VERSION L:20-1/2”
X= 26-5/8” FOR VERSION L:27-9/16”
X
10
1
/
4
”
MOUNTING SCREWS
(3.2x16mm)
