Broan QML30BL - Prepare the Hood

BR N
CONTENTS
(1) GREASE
FILTER
* FIND INSIDE
(1) 3W' X 10" (1) 7" ROUND
DAMPER / DUCT DUCT
CONNECTOR* CONNECTOR
(1) PARTS BAG** CONTAINING:
(5) #10 X 5/8" _ _1) BULB SUCTION
RD. HD. CUP TOOL
MOUNTING
SCREWS ** FIND PARTSBAGTAPED TO
INSIDEOF BOTTOM PANEL.

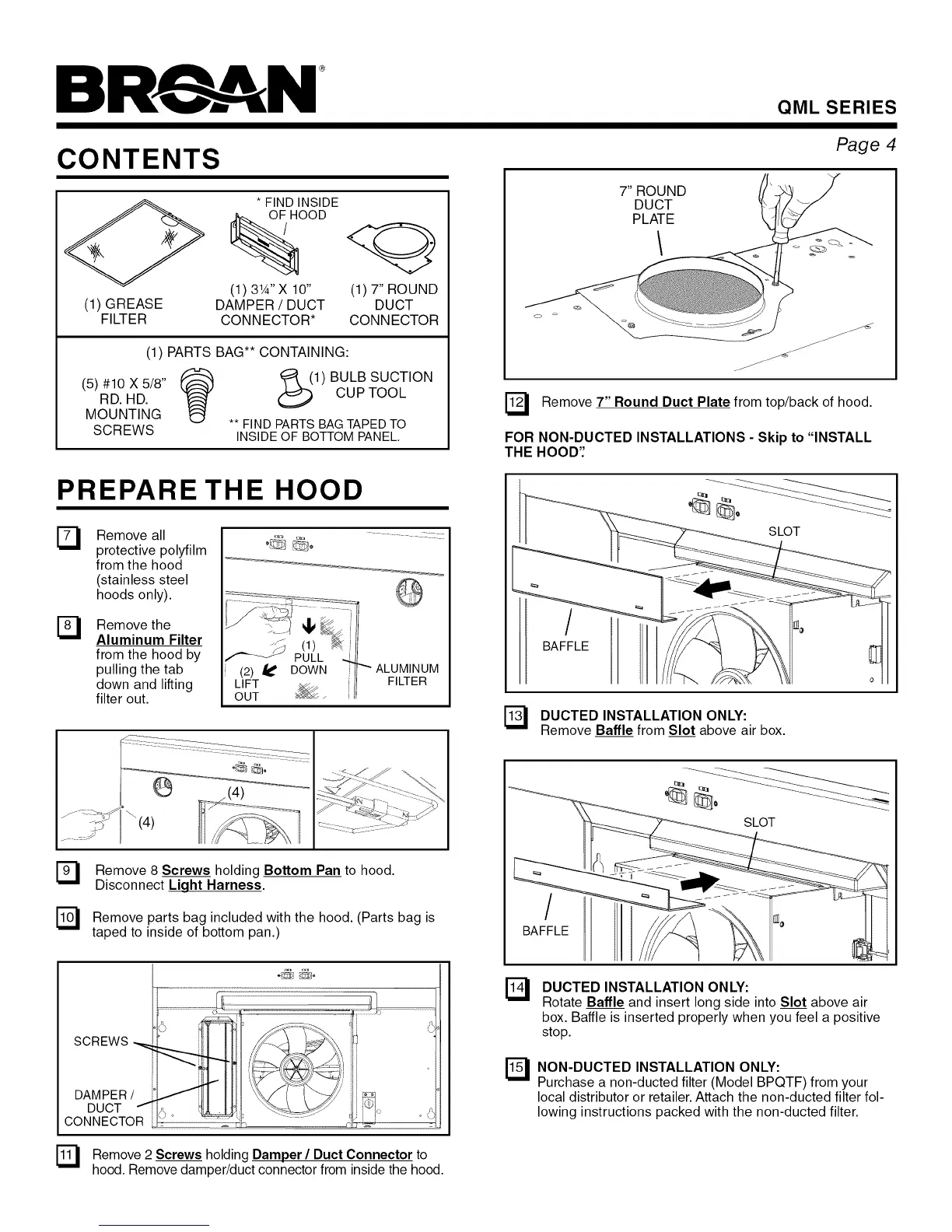

PREPARE THE HOOD
FI
FI
7" ROUND
DUCT
PLATE
QML SERIES
Page 4
"7 Remove 7" Round Duct Plate from top/back of hood.
FOR NON-DUCTED INSTALLATIONS - Skip to "INSTALL
THE HOOD':
Remove all
protective polyfilm
from the hood
(stainless steel
hoods only).
Remove the
Aluminum Filter
from the hood by
pulling the tab
down and lifting
filter out.
IF j
(1)
PULL
(2) _' DOWN
LIFT
OUT
Remove 8 Screws holding Bottom Pan to hood.
Disconnect Light Harness.
........ :cc:
FILTER
Remove parts bag included with the hood. (Parts bag is
taped to inside of bottom pan.)
SCREWS
DAMPER /
DUCT I-
CONNECTOR
................................................................
[_ Remove 2 Screws holding Damper / Duct Connector to
hood. Remove damper/duct connector from inside the hood.
SLOT
/
BAFFLE
7 DUCTED INSTALLATION ONLY:
Remove Baffle from Slot above air box.
SLOT
/
BAFFLE
El
DUCTED INSTALLATION ONLY:
Rotate Baffle and insert long side into Slot above air
box. Baffle is inserted properly when you feel a positive
stop.
[_ NON-DUCTED INSTALLATION ONLY:
Purchase a non-ducted filter (Model BPQTF) from your
local distributor or retailer. Attach the non-ducted filter fol-
lowing instructions packed with the non-ducted filter.
