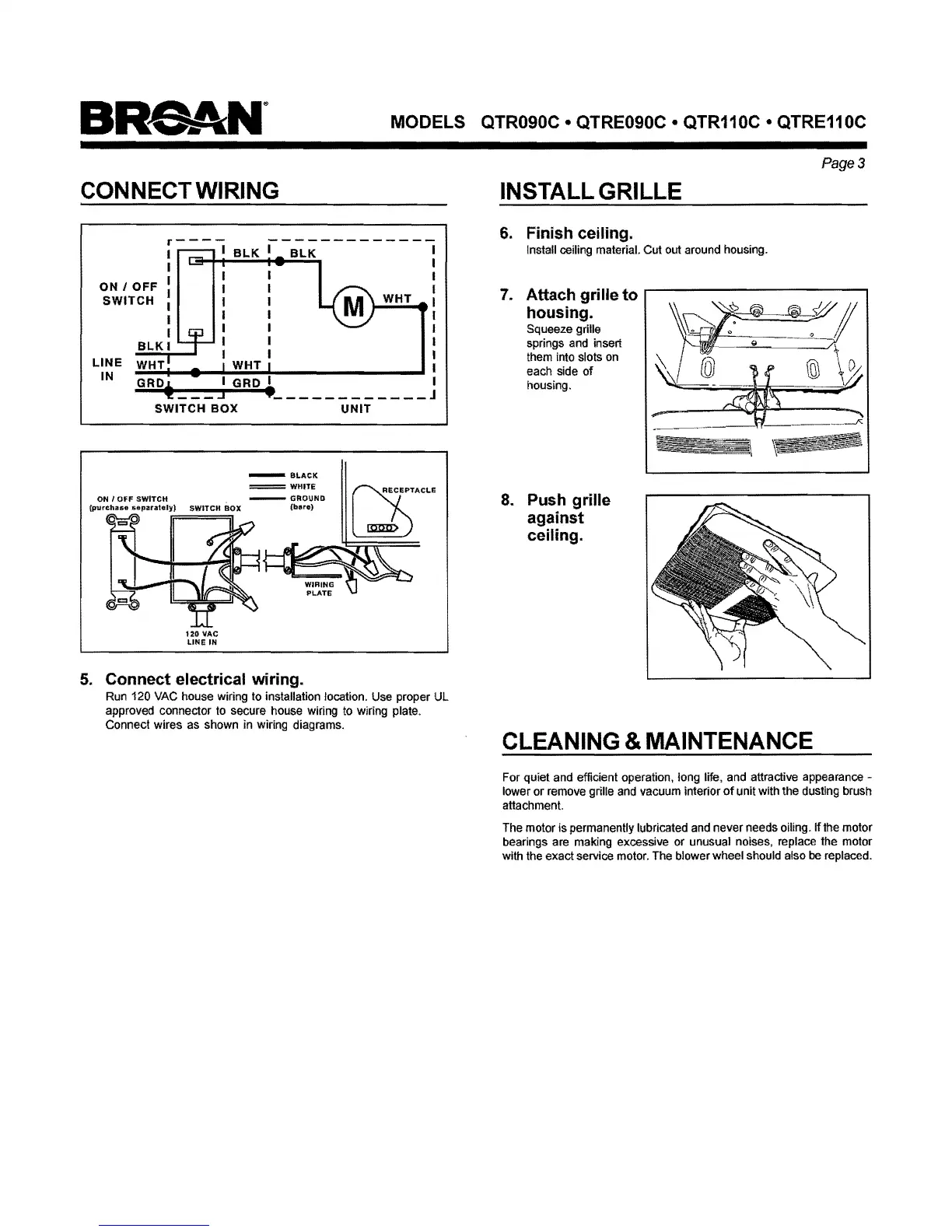

MODELS QTR090C· QTRE090C· QTR110C· QTRE110C
CONNECT
WIRING
r----
I I
BlK
BlK
I
I
I
I
ON
I
OFF:
I
WHT I
SWITCH I
I
I
I
I
BlKI
I
I
liNE
WHT I
IN
ORO,_
J
ORO
t
___________
J
SWITCH BOX UNIT
-SLACK
=WH,TE
ON ,
OFF
SWITCH
--
GROUND
(purchase
separatel)()
SWITCH
BOX
(btlre)
120
VAC
LINE IN
5.
Connect electrical wiring.
Run 120 VAC house wiring to installation location.
Use
proper
UL
approved connector to secure house wiring to wiring plate.
Connect wires as shown in wiring diagrams.
Page 3
INSTALL
GRILLE
6.
Finish ceiling.
Install ceiling material.
Cut
out around housing.
7.
Attach grille to
housing.
Squeeze grille
springs and insert
them into slots on
each side
of
housing.
8.
Push
grille
against
ceiling.
CLEANING
& MAINTENANCE
For
quiet
and efficient operation, long life, and attractive appearance
lower
or
remove grille and vacuum interior
of
unit with
the
dusting brush
attachment.
The motor
is
permanently lubricated and never needs oiling. Ifthe motor
bearings are making excessive
or
unusual noises, replace the motor
with the exact service molor. The blower wheel should also be replaced.
