Brooks EIB605 - Page 16

6 to 8 mm
BREAK OFF
SMALL PILLAR
PUSH UP CATCH & TWIST
ALARM ANTI-CLOCKWISE TO REMOVE

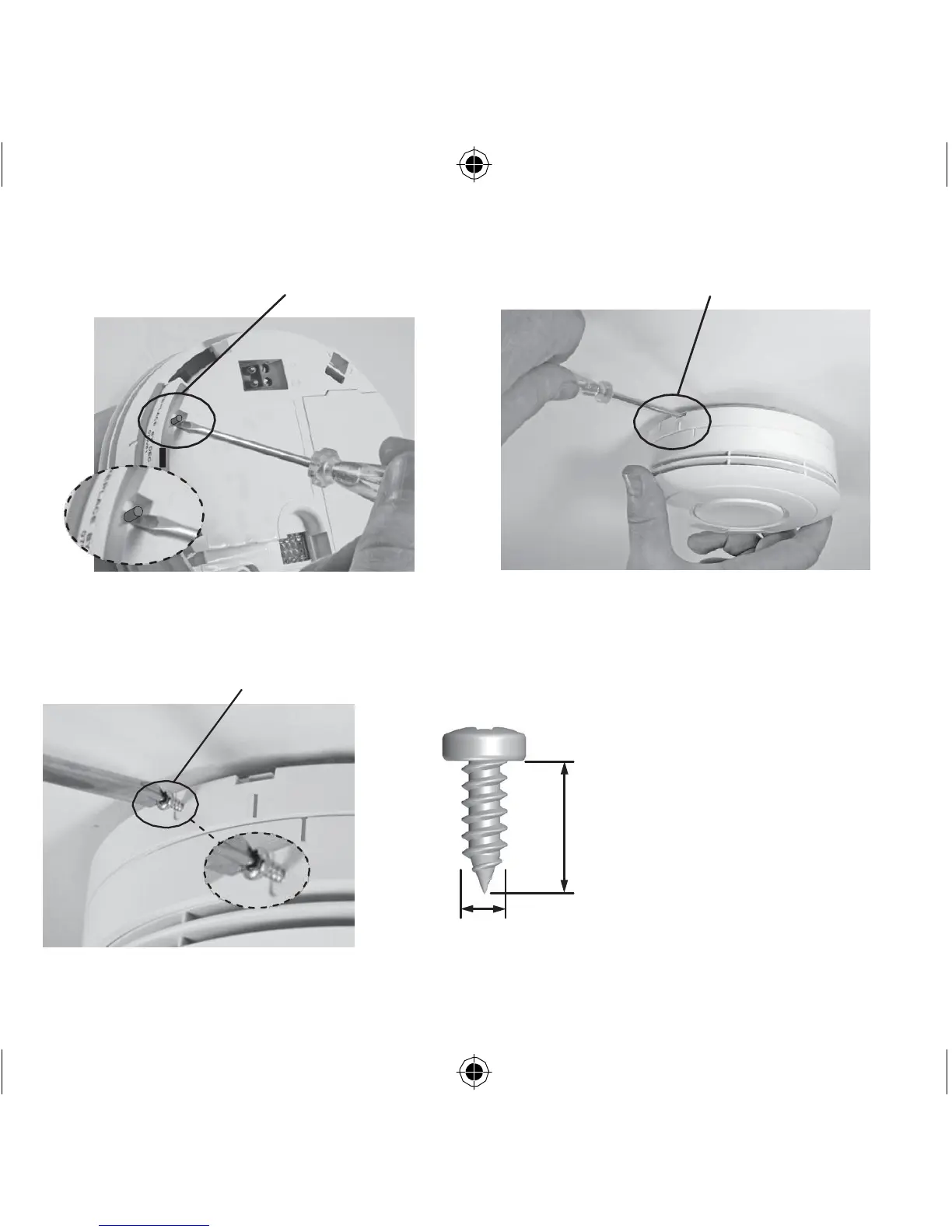

How to Tamperpro of
Figure 8a
How to Remove
Figure 8b
TAMPERPROOF SCREW
Figure 8c
SELF TAPPING
SCREW
2 to 3 mm
Figure 8d
16
Line up the screw (not
supplied) on the “U”
shaped recessed area
shown in figure 8c and
screw firmly home.
To remove the Alarm from
the ceiling, remove the
screw first, and then twist
off anti-clockwise.
