Step 1
Step 1.1
D x 4
E x 4
C x 2

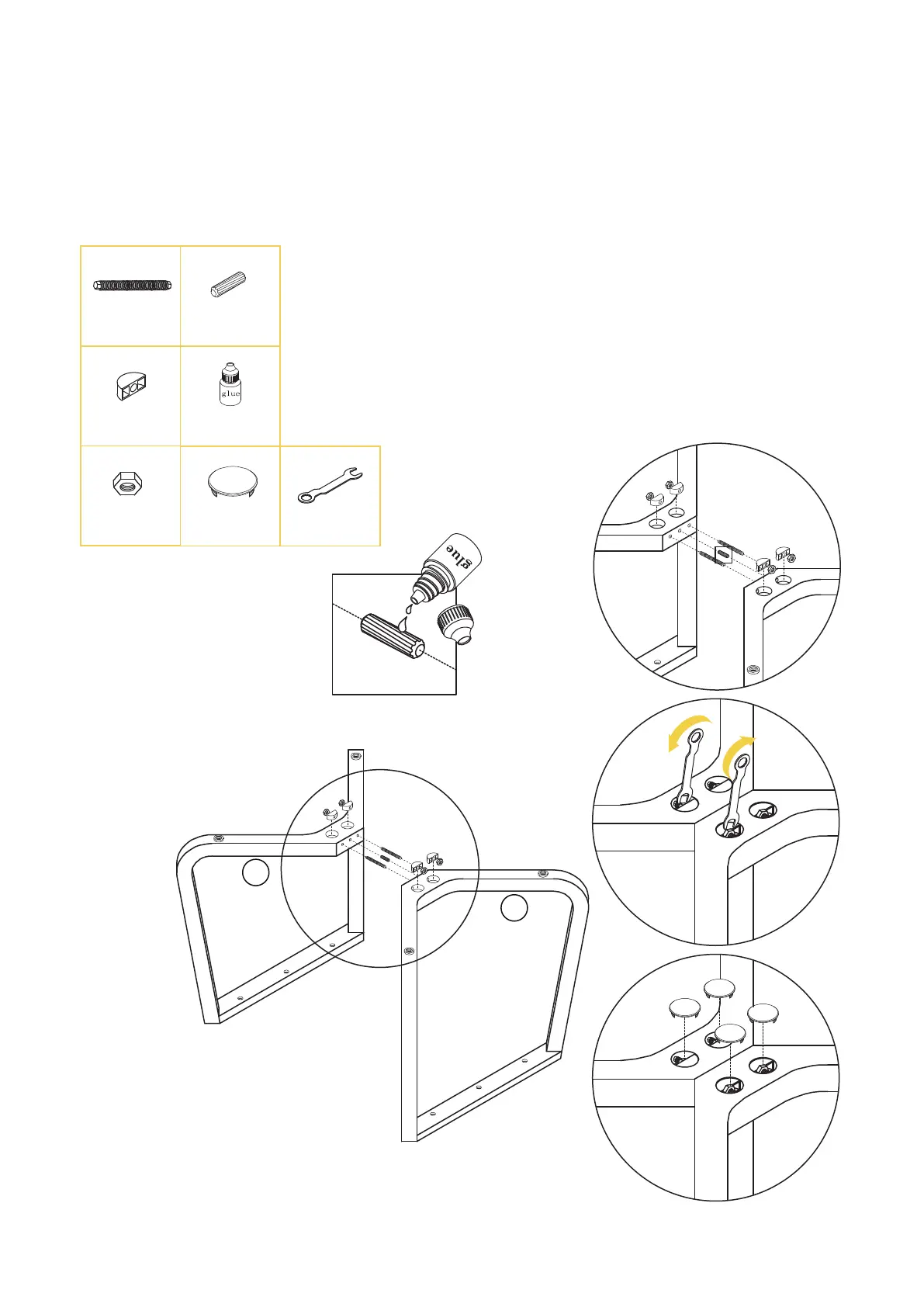

1.1 Insert the wooden dowel (F) into the middle hole
of a leg (2) as shown in the diagram. Insert the
threaded rods (C) into each of the outer holes. Align
the two legs (2) to each other and rmly press them
together. Fit a half-lunar washer (D) to one end of the
threaded rod followed by a nut (E). Repeat this for the
other end of the rod (C) and then repeat this for the
other rod.
1.2 Tighten the nuts on both sides at the same time
using the spanners (J).
1.3 Cover the holes with the caps (H).
F x 1
F
D
C
G
E
H x 4
G x 1
J x 2
Step 1.2
Step 1.3
* It is optional to
apply glue (G) to the
wooden dowel. Glue
could strengthen the
joints but also leave
the joints non-de-
tachable.
J
J
H
2
2
