(7) Remove the Rubber key from the Top cover ASSY.
(8) Release each Hook A to remove the LCD cover from the Top cover ASSY.
(9) Release the Hook B to remove the LCD ASSY from the LCD cover.
(10) Release the Hook C to remove the NFC PCB ASSY from the Top cover ASSY. (Only for
models with NFC)

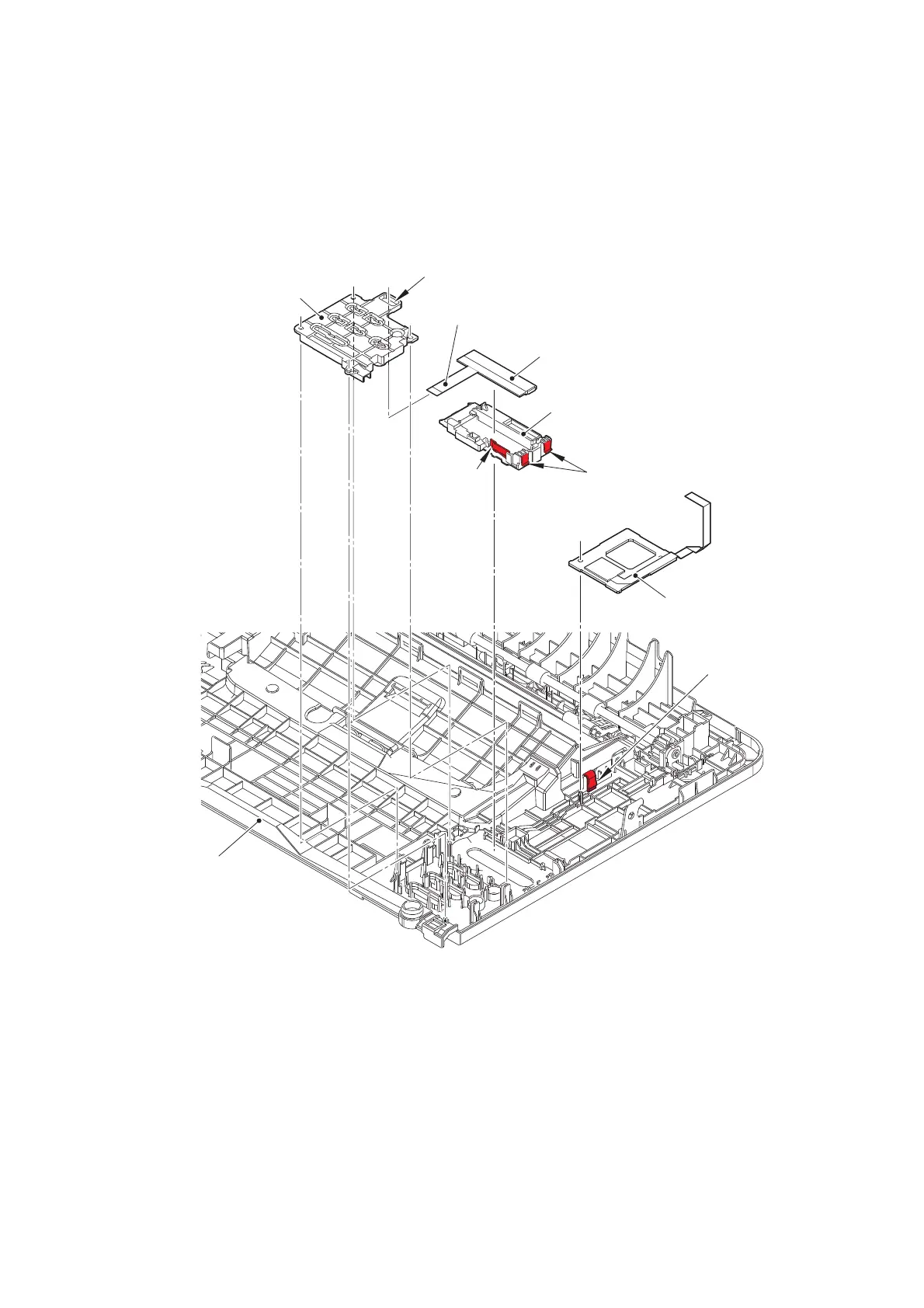

Fig. 3-22
LCD cover
Hole
Top cover ASSY
Hooks A
Hook B
LCD ASSY
LCD flat cable
Rubber key
NFC PCB ASSY
(Only for models
with NFC)
Hook C
<Bottom side of Top cover ASSY>
