Brother HL-L5200DW Service Manual

2-4
Confidential
2. OVERVIEW

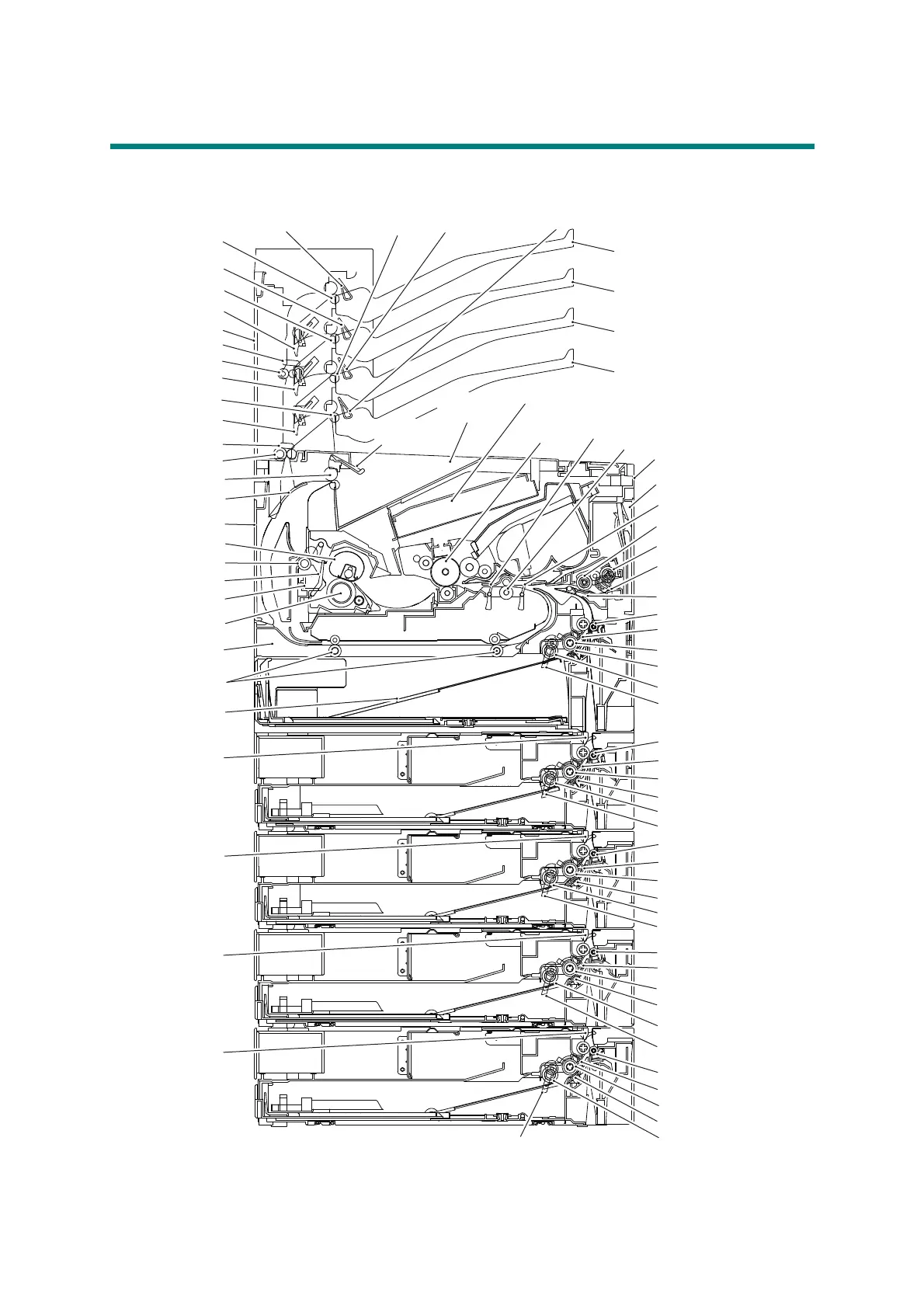

2.1 Cross-section Drawing
Fig. 2-2
MX eject roller 4
MX 4bin
MX 1bin stack actuator
Machine
output tray
Eject stack
actuator
Laser unit
Exposure drum
Registration rear
actuator
Registration roller
Front cover
MP tray
Registration front actuator
MP separation roller
MP paper pick up roller
MP paper empty actuator
MP separation pad
T1 paper dust cleaning roller
T1 paper feed actuator
T1 separation roller
T1 separation pad
T1 paper pick up roller
T1 paper empty actuator
(Models with 520-sheet and
HL-5580D/5585D only)
MX eject roller 3
MX flapper 3
MX flapper 2
MX eject roller 1
MX 3bin
MX 2bin
MX 1bin
MX 2bin stack
actuator
MX eject roller2
MX 4bin stack actuator
MX 3bin stack actuator
MX jam upper actuator
MX flapper 1
MX jam lower actuator
Eject roller2
MX switching flapper
Back cover
Heat film
Eject roller 1
Eject actuator
Fuser cover
Pressure roller
Duplex tray
Duplex paper
feed roller
T1 plate
T2TT jam actuator
(TT only)
T3TT jam actuator
(TT only)
T4TT jam actuator
(TT only)
T5TT jam actuator
(TT only)
T2(LT or TT) paper dust cleaning roller
T2(LT or TT) paper feed actuator
T2(LT or TT) separation roller
T2(LT or TT) separation pad
T2(LT or TT) paper pick up roller
T2(LT or TT) paper empty actuator
T3(LT or TT) paper dust cleaning roller
T3(LT or TT) paper feed actuator
T3(LT or TT) separation roller
T3(LT or TT) separation pad
T3(LT or TT) paper pick up roller
T3(LT or TT) paper empty actuator
T4(LT or TT) paper dust cleaning roller
T4(LT or TT) paper feed actuator
T4(LT or TT) separation roller
T4(LT or TT) separation pad
T4(LT or TT) paper pick up roller
T4(LT or TT) paper empty actuator
T5TT paper dust cleaning roller
T5TT paper feed actuator
T5TT separation roller
T5TT separation pad
T5TT paper pick up roller
T5TT paper empty actuator
<Back side>
<Front side>
MX feed roller 2
MX feed roller 1
MX back cover

Brother HL-L5200DW Specifications

General

Color	No
N-up printing	2, 4, 6, 9, 16, 25
Duplex printing	Yes
Print technology	Laser
Duplex printing mode	Auto
Time to first page (black, normal)	7.2 s
Print speed (black, normal quality, A4/US Letter)	42 ppm
Duplex print speed (black, normal quality, A4/US Letter)	20 ppm
Printing colors	Black
Maximum duty cycle	- pages per month
Number of print cartridges	1
Page description languages	BR-Script 3, Epson FX, IBM ProPrinter XL24E, Microsoft XPS, PCL 6, PDF 1.7, PostScript 3
Processor family	ARM Cortex
Maximum internal memory	- MB
Sound power level (standby)	34 dB
Sound pressure level (printing)	52 dB
Sound pressure level (quiet mode)	50 dB
Sustainability certificates	Blue Angel, ENERGY STAR
Package depth	450 mm
Package width	485 mm
Package height	377 mm
Package weight	13000 g
Display	LCD
Product color	Black, Grey
Display number of lines	1 lines
Paper input type	Paper tray
Total input capacity	250 sheets
Total output capacity	150 sheets
Multi-Purpose tray input capacity	50 sheets
Custom media width	76.2 - 215.9 mm
Custom media length	127 - 355.6 mm
Duplex media weight	60 - 105 g/m²
Paper tray media types	Plain paper, Recycled paper, Thick paper, Thin paper
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
Multi-purpose tray media types	Bond paper, Envelopes, Labels, Letterhead, Plain paper, Recycled paper, Thick paper, Thin paper
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 200 g/m²
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	64-bit WEP, 128-bit WEP, EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, HTTPS, IPPS, IPSEC, PEAP, SMTP-AUTH, SNMP, SSL/TLS, WPA-AES, WPA-TKIP
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print, Mopria Print Service
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, FTP Server, TELNET Server, HTTP/HTTPS server, TFTP client and server, SMTP Client, SNMPv1/v2c/ v3, ICMP, Web Services (Print), CIFS client, SNTP client
Supported network protocols (IPv6)	NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, FTP Server, TELNET Server, HTTP/HTTPS server, TFTP client and server, SMTP Client, SNMPv1/v2c, ICMPv6, Web Services (Print), CIFS Client, SNTP Client
Standard interfaces	Ethernet, USB 2.0, Wireless LAN
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input frequency	50 - 60 Hz
Power consumption (off)	6.5 W
Power consumption (standby)	32 W
Power consumption (printing)	640 W
Energy Star Typical Electricity Consumption (TEC)	1.763 kWh/week
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012, Windows Server 2012 x64
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	388 mm
Width	373 mm
Height	255 mm
