Control Panel Overview

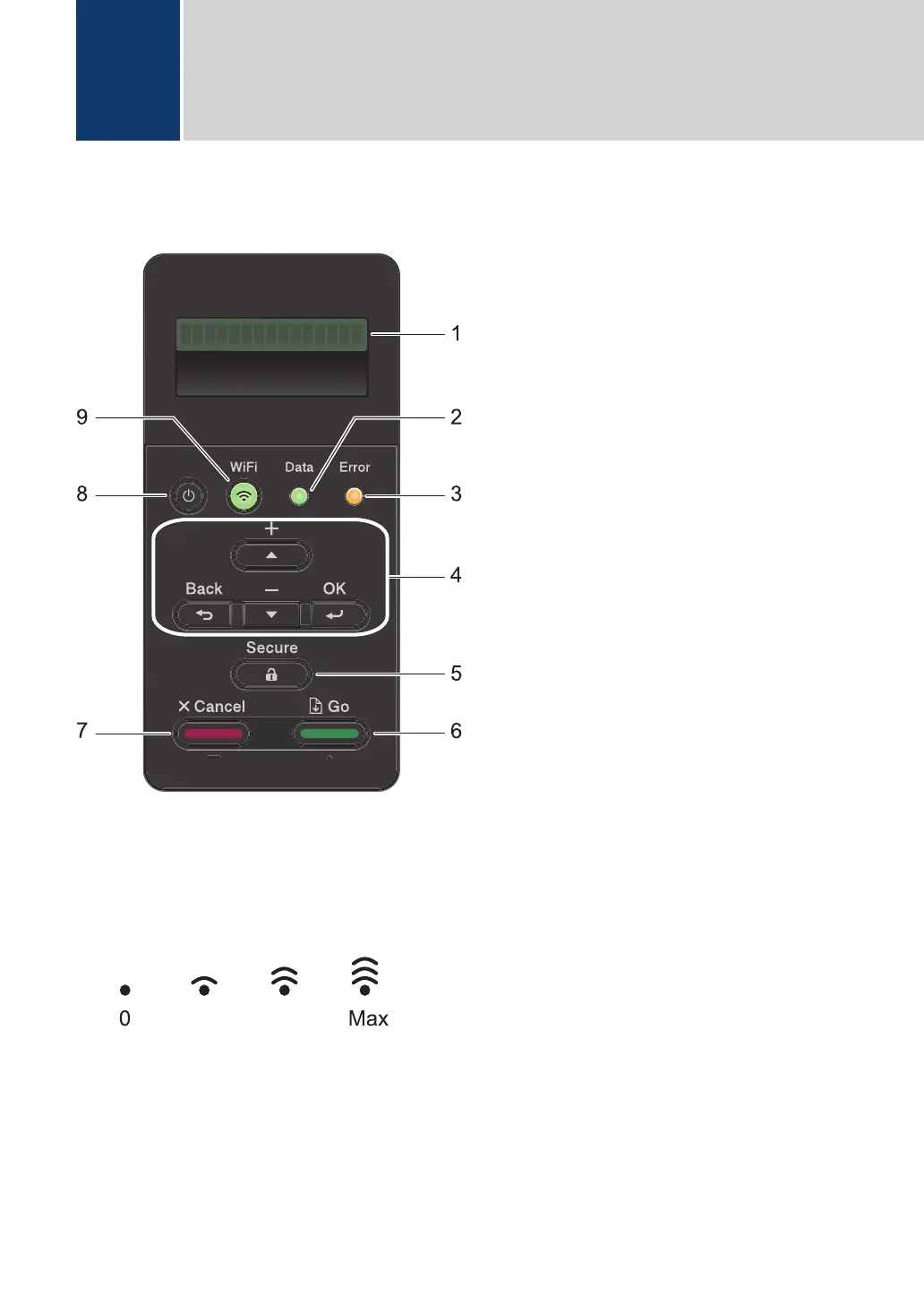

The control panel may vary depending on your model.
8
2
1
3
4
5
6
9
7
1. Liquid Crystal Display (LCD)
Displays messages to help you set up and use the machine.
Wireless Network Models
A four-level indicator shows the wireless signal strength if you are using a wireless
connection.
0 Max
2. Data LED
The Data LED blinks depending on the machine’s status.
When the Data LED is on, data is in the machine’s memory. When the Data LED blinks, the
machine is receiving or processing data.
3. Error LED
The Error LED blinks when the LCD displays an error or an important status message.
