3-85

Confidential

9.23 Develop joint gear 37 / Develop joint

(1) Tilt the develop joint to remove it from the drive sub ASSY, and then remove the develop

joint spring from the drive sub ASSY.

(2) Pull out the develop joint gear 37 from the drive sub ASSY.

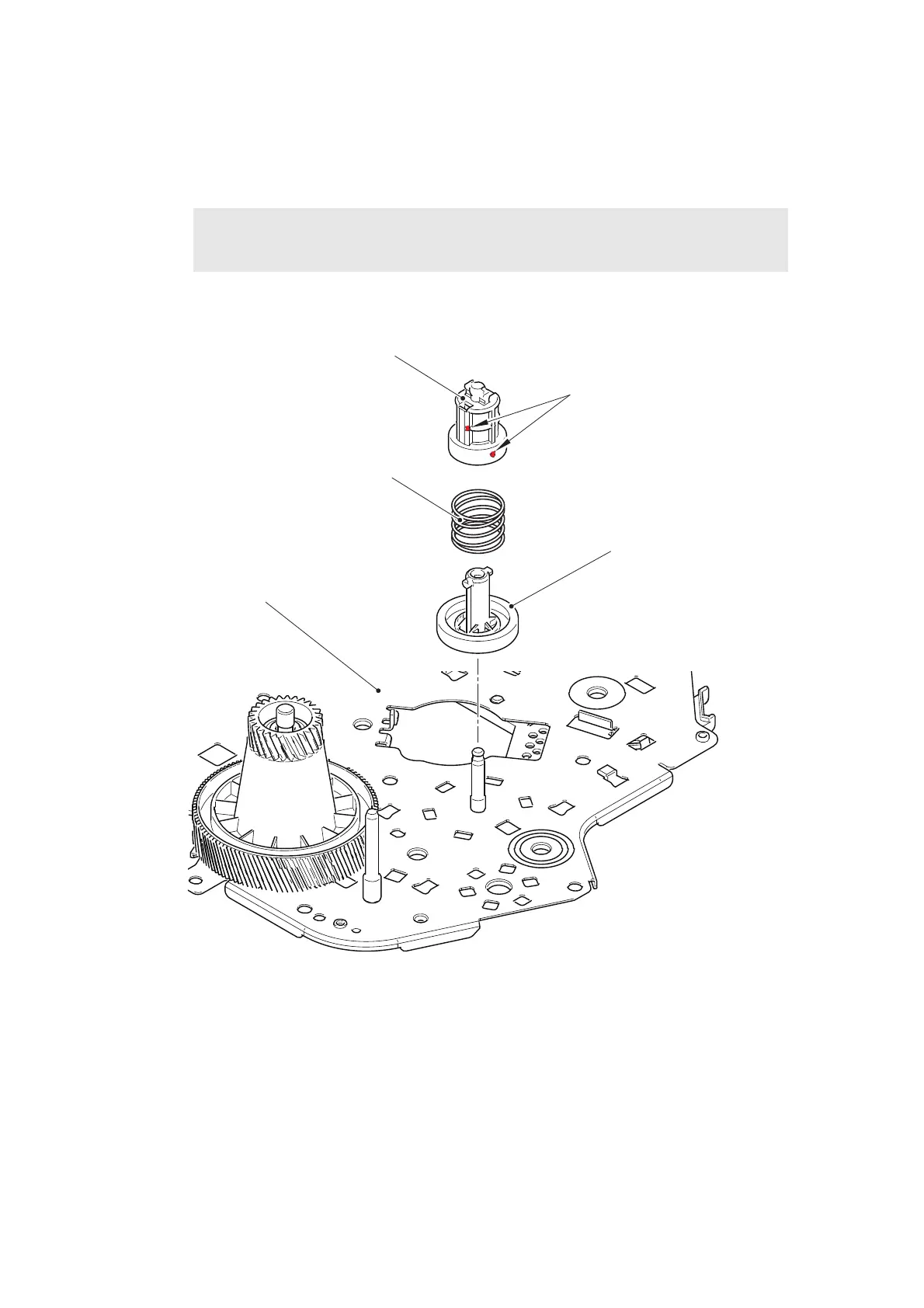

Fig. 3-74

Note:

• When removing the develop joint, be careful not to damage the hooks.

Hooks

Drive sub ASSY

Develop joint gear 37

Develop joint spring

Develop joint
