Brother HL-L6250DN Technical Reference Guide

CHAPTER 2 PCL - 98
<Compressed Image Data>

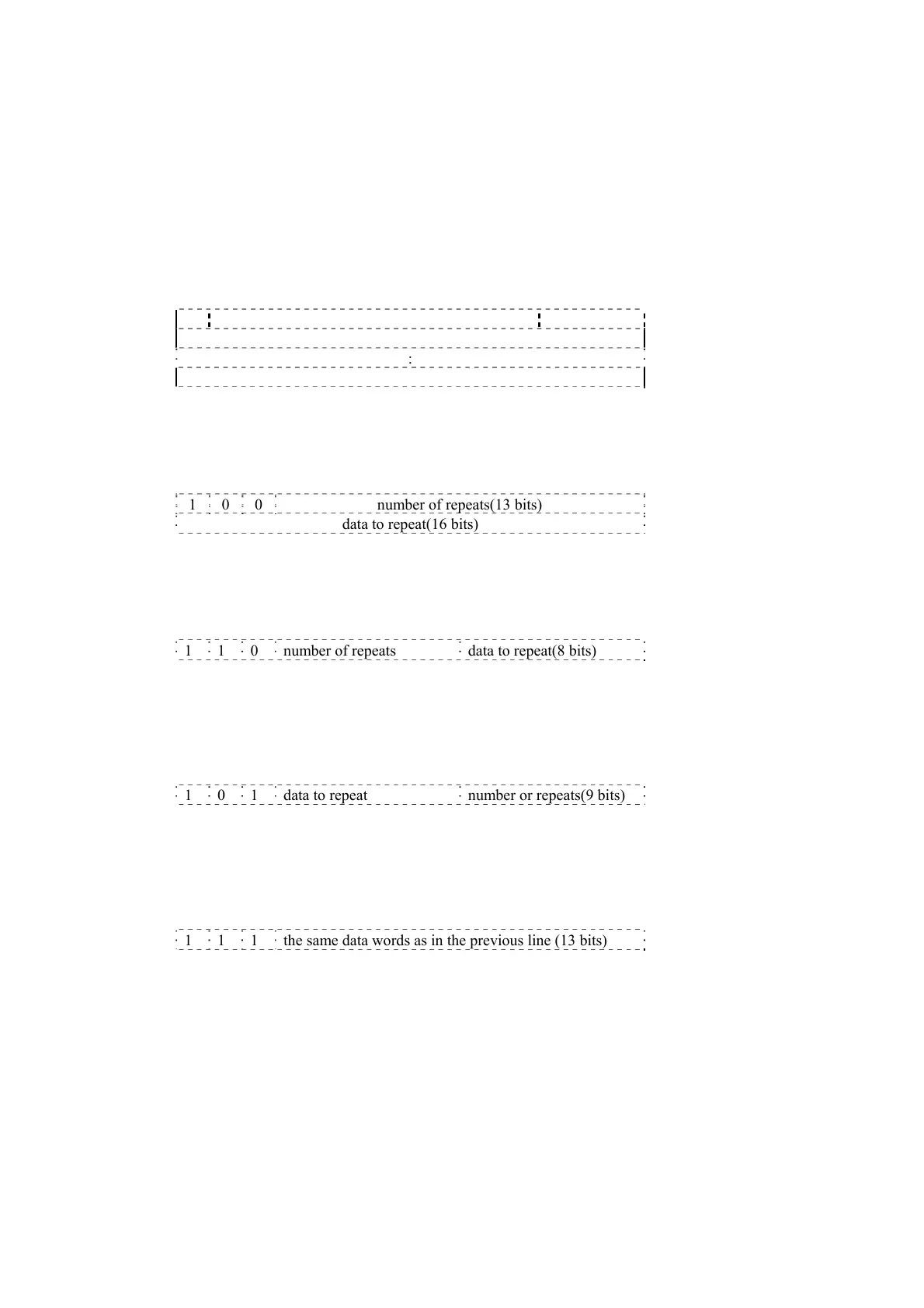

Data compression compresses the original image data word by word (16 bits).
The compressed data consists of both horizontal compression which uses 16 bit, 8 bit and 4 bit repeating
patterns within 1 word or 2 words of data and vertical compression which indicates how many times to repeat
the same data as in the previous line within 1 word of data.
 Non-compressed data
When the most significant bit in the first 2 bytes is 0, the printer goes into non-compression mode. The
following 11 bits then indicate the number of words of data, the least significant 4 bits are not used. After that,
the image data follows word by word.
15 14 4 3 0
0 data word count (11 bits) not used
data 1 (16 bits)
:
data n (16 bits)
 16 bit repeating compressed data
When the most significant 3 bits in the first 2 bytes are in the order 1, 0, 0, the remaining 13 bits indicate the
number of times to repeat 16 bit data. The following 2 bytes should be the 16 bit data to repeat.
15 14 13 12 0
1 0 0 number of repeats(13 bits)
data to repeat(16 bits)
 8 bit repeating compressed data
When the most significant 3 bits in the first 2 bytes are in the order 1, 1, 0, the following 5 bits indicate the
number of times to repeat 16 bit (two by 8 bits) data. The remaining 8 bits should be the 8 bit data to repeat.
15 14 13 12 8 7 0
1 1 0 number of repeats data to repeat(8 bits)
(5 bits)
 4 bit repeating compression data
When the most significant 3 bits in the first 2 bytes are in the order 1, 0, 1, the following 4 bits are the 4 bit data
to repeat. The remaining 9 bits indicate the number of times to repeat the 16 bit (4 by 4 bits) data.
15 14 13 12 9 8 0
1 0 1 data to repeat number or repeats(9 bits)
(4 bits)
 Vertical repeating compressed data
When the most significant 3 bits in the first 2 bytes are in the order 1, 1, 1, the remaining 13 bits indicate the
same data words as in the previous line.
15 14 13 12 0
1 1 1 the same data words as in the previous line (13 bits)
The printer cannot support the APT and HRC function in the 1200 dpi printing mode.

Brother HL-L6250DN Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	7.5 s
Print speed (black, normal quality, A4/US Letter)	46 ppm
Processor model	Cortex-A9
Processor family	ARM Cortex
Maximum internal memory	- MB
Sound power level (standby)	35 dB
Sound pressure level (printing)	54 dB
Sound pressure level (quiet mode)	50 dB
Display	LCD
Product color	Gray
Display number of lines	16 lines
Printing colors	Black
Recommended duty cycle	0 - 5000 pages per month
Number of print cartridges	1
Page description languages	BR-Script 3, Epson FX, IBM ProPrinter XL24E, PCL 6, PDF 1.7
Cables included	AC
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Package depth	450 mm
Package width	485 mm
Package height	531 mm
Package weight	15000 g
Power consumption (off)	0.04 W
Power consumption (standby)	32 W
Power consumption (printing)	740 W
Power consumption (PowerSave)	390 W
Energy Star Typical Electricity Consumption (TEC)	2.162 kWh/week
Sustainability certificates	Blue Angel, ENERGY STAR
Paper tray media types	Envelopes, Plain paper, Recycled paper, Thick paper, Thin paper
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
Multi-purpose tray media types	Bond paper, Envelopes, Labels, Letterhead, Plain paper, Recycled paper, Thick paper, Thicker paper, Thin paper
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 200 g/m²
Security algorithms	EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, HTTPS, IPPS, IPSEC, PEAP, SNMP, SSL/TLS
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print, Mopria Print Service, Windows RT
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA (Auto IP), WINS/NetBIOS name resolution, DNS resolver, mDNS, LLMNR responder, LPR/ LPD, custom Raw Port/Port9100, IPP/IPPS, FTP server, TELNET server, HTTP/HTTPS server, TFTP client en server, SMTP client, SNMPv1/v2c/ v3, ICMP, web services (printen), CIFS client, SNTP client, LDAP
Supported network protocols (IPv6)	NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, custom raw port/ Port9100, IPP/IPPS, FTP server, TELNET server, HTTP/HTTPS server, TFTP client en server, SMTP client, SNMPv1/v2c, ICMPv6, web services (print), CIFS client, SNTP client, LDAP
Paper input type	Paper tray
Total input capacity	520 sheets
Total output capacity	150 sheets
Maximum input capacity	1040 sheets
Maximum number of input trays	2
Multi-Purpose tray input capacity	50 sheets
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Professional, Windows XP Professional x64
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	388 mm
Width	373 mm
Height	287 mm
