recesses in the bolt slide. This is done
just forward of the receiver before the
bolt is completely inserted into the
receiver.

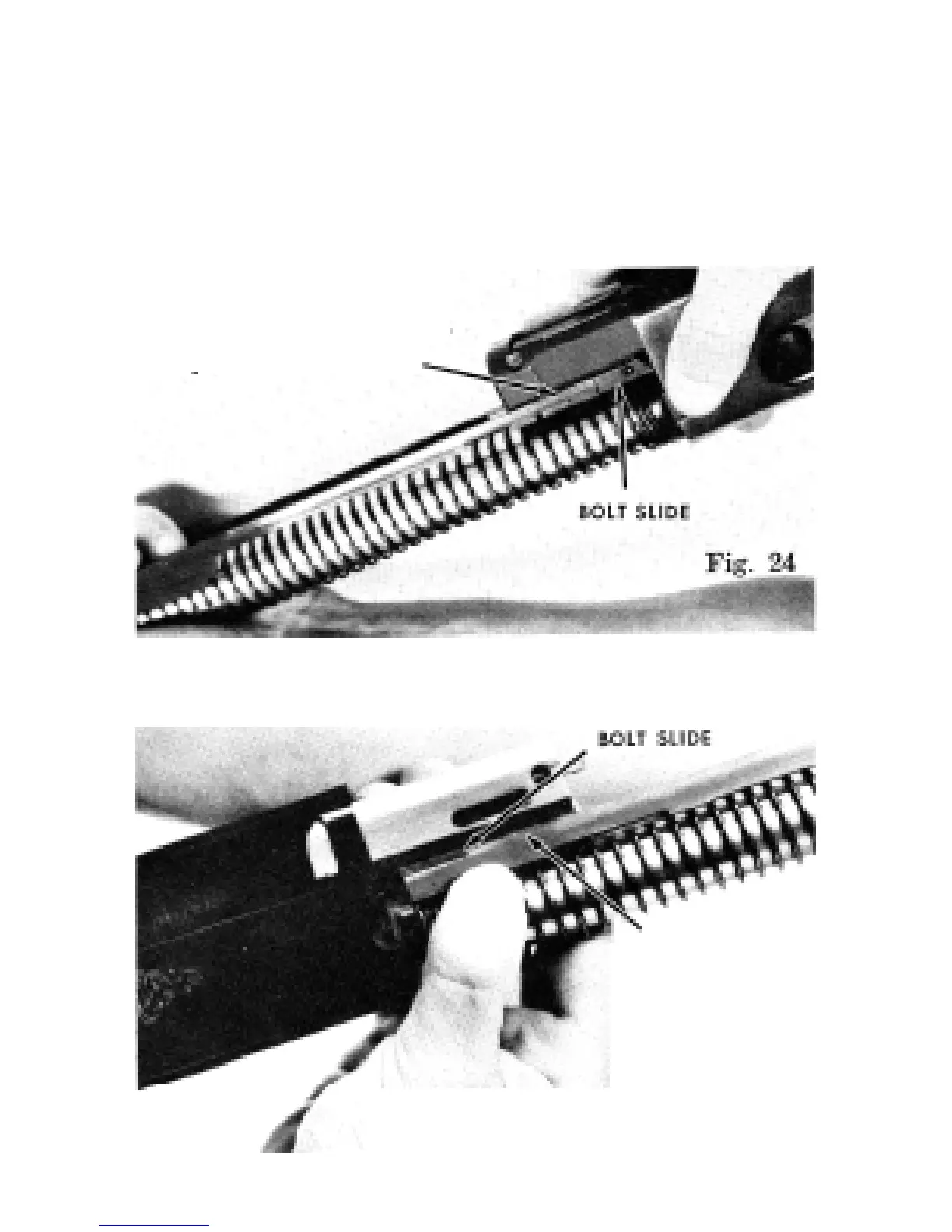

Notice that the left (loading port side)
action bar enters from the top of the bolt
slide (Figure 24) while the right action bar
LEFT
ACTION
BAR
ENTERS
BOLT SLIDE FROM TOP
attaches from the bottom (Figure 25). It is
RIGHT ACTION
BAR ENTERS
BOLT SLIDE
FROM BOTTOM
Fig. 25
28
