6. As the barrel and forearm are seated
into final position, be certain the
U-
shaped cut in the barrel extension
(Figure 3) mates fully against the

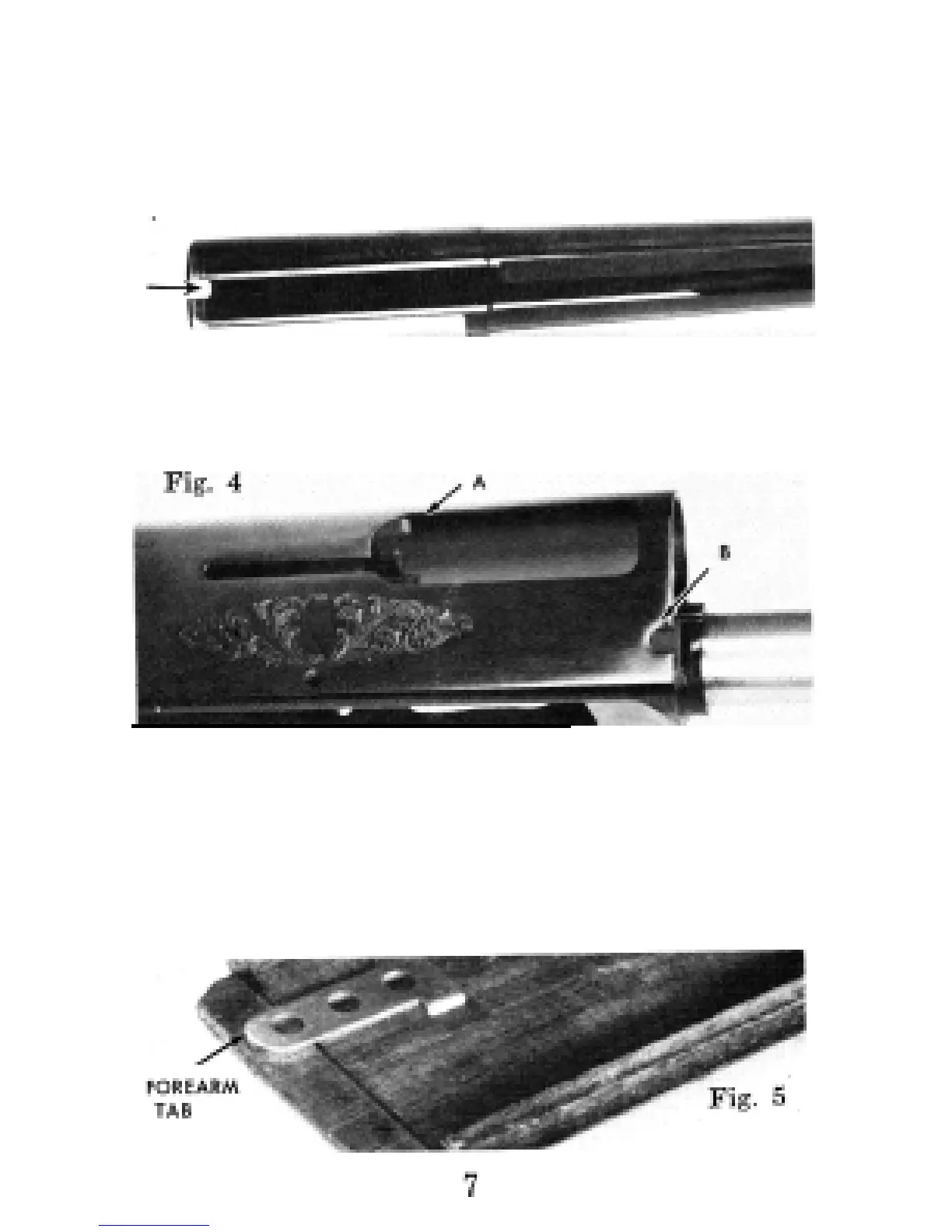

Fig. 3
barrel guide in the upper inside of the
receiver (Point A, Figure 4). Also
check that the metal forearm tabs in
the rearward end of the forearm (Fig-
ure 5) slide into the opposing receiver
recesses (Point
B,
Figure 4).
7. Screw the forearm cap onto the maga-
zine tube. HAND TIGHTEN ONLY.
