In conventional gun terminology, the position and
movement of shotgun parts are described as they
occur with the shotgun horizontal and in normal
firing position; i.e., the muzzle is forward or front;
the butt stock is rearward or rear; the trigger is
downward or underneath; the sight is upward or on

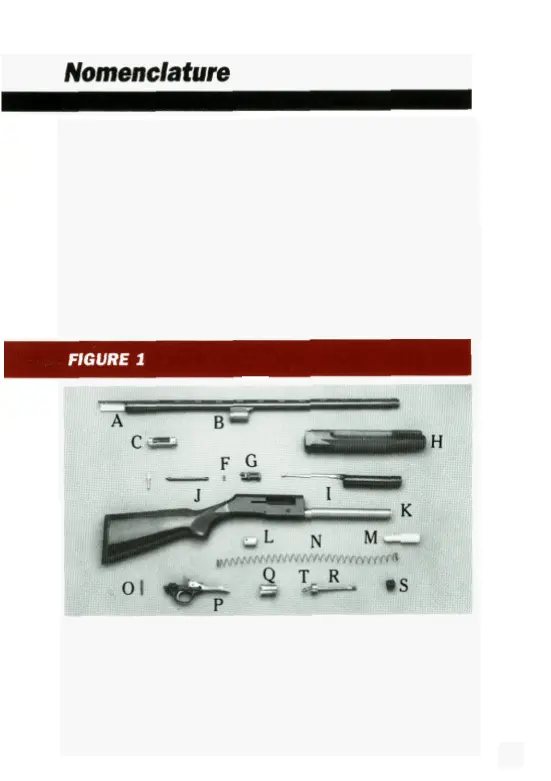

top. For general parts nomenclature, refer to Figure
1. All figures and schematics will refer to all 12
and 20 gauge E80 Shotguns unless otherwise noted.
A. Barrel K. Magazine Tube
B. Gas Cylinder &
Barrel
Guide L. Magazine Spring Follower
C. Breech Bolt M. Magazine Plug
D. Operating Handle N. Magazine Spring
E. Link 0. Trigger Guard Retaining Pin
E Link Pin P. Trigger Housing
G. Bolt Slide Q. Gas Piston
H. Forearm R. Magazine Spring Retainer & Forearm Cap Stud
I. Action Bar and Sleeve S. Forearm Cap Assembly
J. Butt Stock T. Magazine Spring Retainer Lock Spring
11
