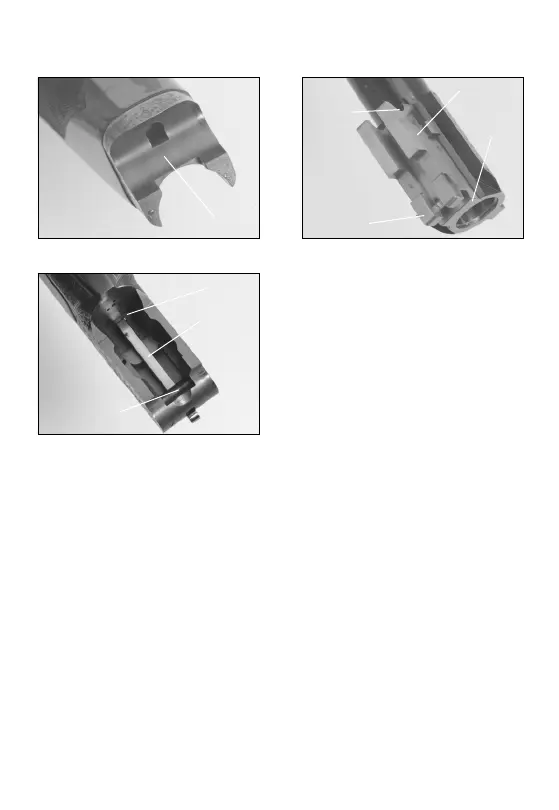

3-A) The forearm bracket.
3-B) Barrel lug, hinge pin bearing surface, extractor extension
and barrel flats.
3-C) Hinge pin, cocking lever and locking bolt.
2 To attach the barrel to the action, grasp the stock’s pistol grip with
your right hand and anchor the butt stock between your right
forearm and right side. With the thumb of your right hand, move
the top lever sideways to the extreme right (Figure 4).
3 Grasping the barrel in the left hand, engage the barrel lug’s circular
recess with the action’s hinge pin (Figure 5). Keeping pressure on the
barrel to keep the hinge pin aligned in the barrel lug’s circular recess,
rotate the barrel upward, fully closing the action (Figure 6).
4 Release the top lever. It should snap back to its central position.
5 Place the butt of the gun’s stock against your upper leg to support it.
10
FIGURE 3-A
FIGURE 3-C
FIGURE 3-B
Barrel Flats
Extractor
Extension
Barrel Lug
Forearm Bracket
Locking Bolt
Cocking Lever
Hinge Pin
Hinge Pin
Bearing
Surface
