5 To personalize the GraCoil recoil
reduction system, bring the gun to your
shoulder as if you are ready to call for a
target. If the unit compresses when you
perform this action, the compression of
the unit is set too light. Remove the pad
again according to Step 2 and increase the
compression ONE TURN by inserting the
3
⁄32" Allen wrench into the hole in the
center shaft and turning the wrench
counterclockwise (heavy) to increase
compression. COMPRESSION
ADJUSTMENTS ARE A MATTER OF
TRIAL AND ERROR. Adjust ONE
TURN at a time until the unit ceases to
compress when brought to the shoulder.
If the compression is set too light, there
will be excess motion from the gun when
shouldering, thus affecting accuracy. If
the compression is set too heavy, more
recoil will be felt.
PROPER ADJUSTMENT OF THE GRACOIL SYSTEM IS ESSENTIAL. FAILURE TO
PROPERLY ADJUST THE COMPRESSION COULD RESULT IN PERSONAL
INJURY. IF THE TENSION IS SET TOO LIGHT, THE UNIT COULD COMPRESS
ENOUGH TO PINCH THE SHOOTER, RESULTING IN INJURY.
6 Once the gun can be shouldered without compressing the GraCoil
system, the system is properly set-up and will effectively absorb recoil
without affecting accuracy.
7 Reinstall the butt plate by sliding it back into the stock and tighten
the set screws using the
3
⁄32" Allen wrench. Do not not to over tighten
the set screws.
21

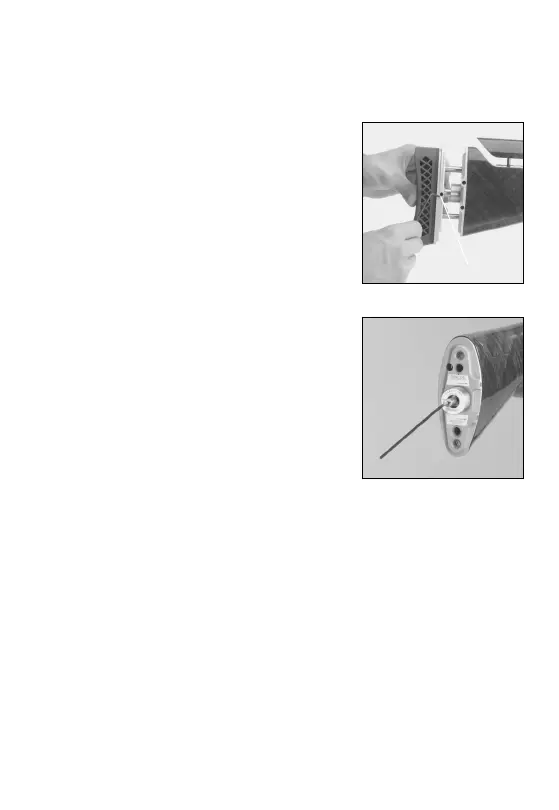

FIGURE 20
FIGURE 19
Insert Allen wrench here
