they have, refer to the last section and follow the directions to adjust
the recoil reduction unit to your needs.
ADJUSTING THE PAD PLATE
The pad plate on your BT-99 shotgun is fully adjustable to aid in your
comfort and the accuracy of your shotgun
(Figure 23). To adjust the GraCoil system
pad plate, perform the following:
BEFORE PERFORMING ANY ADJUSTMENTS,
ALWAYS MAKE CERTAIN THERE IS NO SHELL IN
THE CHAMBER.
1 Remove the recoil pad by inserting a
3
⁄32"
Allen wrench into the two openings in the
recoil pad and removing the two screws in
the rear of the recoil pad (Figure 24). To
prevent damage to the recoil pad, place a
small amount of petroleum jelly on the
Allen wrench. This will prevent the Allen
wrench from grabbing and possibly
tearing the recoil pad.
2 With a
3
⁄32" Allen wrench, loosen the two
set screws used to keep the cam locks in
place (Figure 25).
3 Both screws have a series of six holes that
can be used for a wide range of pad plate
adjustment. PAD PLATE ADJUSTMENT
IS A MATTER OF TRIAL AND ERROR.
Adjust in small increments until the
desired pad plate position has
been reached.
4 Once the desired pad plate location is
reached, tighten the two set screws that
keep the cam locks in place with the
3
⁄32"
Allen wrench. Do not over tighten the set
screws.
23

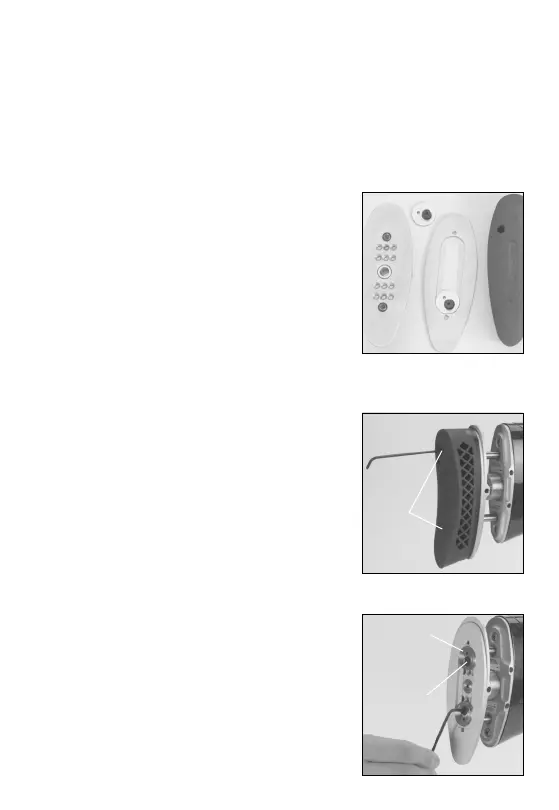

FIGURE 23
FIGURE 24
Insert
Allen
wrench
here.
Adjustable Pad Plate
FIGURE 25
Cam lock
Set screw
02-260-BFA_Revised BT99 OM 8/11/03 11:48 AM Page 23
