NOMENCLATURE
In conventional gun terminology, the position and movement of
gun parts are described as they occur with the gun horizontal and in
normal firing position; i.e., the muzzle is forward or front; butt stock
is rearward or rear; trigger is downward or underneath; the rib is
upward or on top. For general parts nomenclature refer to Figure 1.
For specific parts names related to disassembly see Figure 2.
SERIAL NUMBER
The serial number of your BT-99 can be found on the top tang under
the top lever. Record this number for future reference.
8

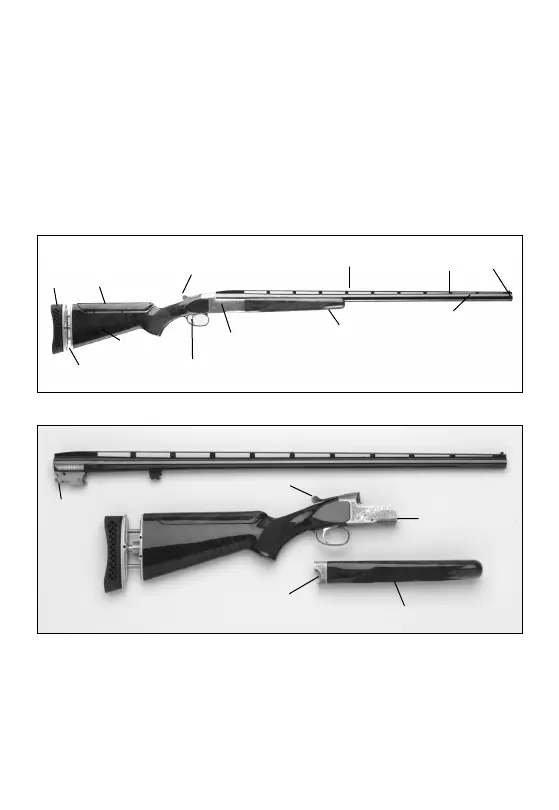

FIGURE 1
Butt
Stock
Trigger
Receiver
Forearm
Barrel
Barrel Ports
(optional)
Muzzle
Rib
Top Lever
Adjustable Comb
(optional)
GraCoil System
(optional)
FIGURE 2
Takedown Lever Latch
Forearm Bracket
Barrel Lug
Top Lever
Hinge Pin
