NOMENCLATURE
In conventional firearm terminology the position and movement of
firearm parts are described as they occur with the firearm horizontal
and in the normal firing position: i.e., the muzzles are forward or in
front; the buttstock is rearward or to the rear; the trigger is downward
or underneath; the rib is upward or on top. For general parts
nomenclature, refer to Figure 1. For specific parts names related
to disassembly, refer to Figure 2.
SERIAL NUMBER
The serial number of your Cynergy is found under the top lever.
Record this number in the space provided at the front of this
owner’s manual for future reference.
INITIAL CLEANING
NOTICE! please take note of the following information before
Cleaning your firearm.
CLEANING PARTS WITH SPECIAL FINISHES
Be especially careful when cleaning firearms with camouflage,
Dura-Touch
®
Armor Coating and other special finishes. Always
prevent these surfaces from coming in contact with cleaning solvents,
barrel scrubbers and other strong chemicals. It is preferable to clean
these surfaces with a lightweight gun oil containing no solvents, or
with a damp cloth and mild dish soap (be sure to keep water out of
the action). When cleaning your firearm’s bore and action, protect the
external finishes from any contact with chemicals used. Also, avoid
any contact between external finishes and other strong chemicals like
those found in DEET-containing insect repellents, sunscreens, etc.
Damage to camouflage, Dura-Touch and other finishes caused by
chemicals is irreversible and not repairable.
CLEANING
Various exposed metal parts of your new firearm have been coated
at the factory with a rust preventative compound. Before assembling
your shotgun, clean the anti-rust compound
from the inside of the barrel, receiver and
the action/chamber areas. A high-quality
lightweight gun oil is ideal for removing this
compound, and for giving your new firearm its
first lubrication. Clean the barrel using a
cleaning rod and patch as explained under
“Cleaning and Maintenance Suggestions” on
page 33.
Grease is recommended to lubricate the ejector
cams on both sides of the barrels. Lightly
grease the MonoLock Hinge mating surfaces
on both sides of the receiver (hinged surfaces)
to prevent galling.
OPERATION OF THE “SAFETY”
always keep the “safety” in the on safe
position unless shooting is imminent.
figure 3
The “safety” shown in the
on safe position, with barrel
selector on the over barrel.

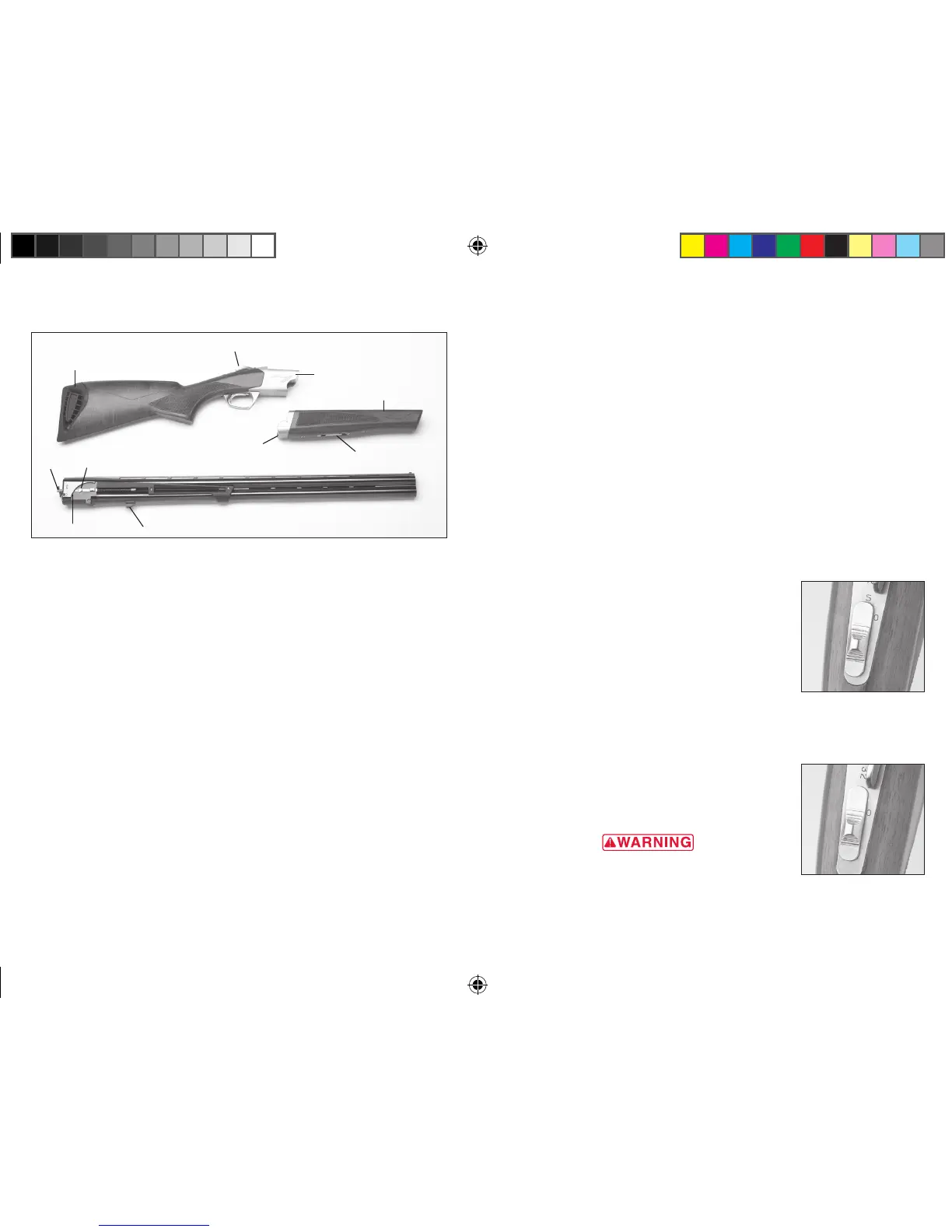

figure 2
Recoil Pad
Top Lever
Receiver
MonoLock Hinge
Forearm
figure 4
The “safety” shown in the
off safe position, with barrel
selector on the over barrel.
Ejector Cam
Ejectors
Forearm Barrel Lug
Forearm Bracket
Forearm Latch
