NOTICE! when assembling your shotgun, do not use exCessive
forCe in Closing the aCtion. if the aCtion and barrels are not
properly aligned, exCessive forCe will only Cause them to
grind together and sCore, or mar, the finely fitted surfaCes.
if there appears to be interferenCe, start over at step 3, taking
time to line up the reCeiver, engage the mating surfaCes and
push the reCeiver into the barrel set.
DISASSEMBLY
always keep the muZZles pointed in a safe direCtion. before
starting disassembly proCedures, open the aCtion and visually
inspeCt the Chambers to be absolutely Certain the firearm is
Completely unloaded. plaCe the “safety” in the on safe
position. failure to follow this warning Could result in
serious injury or death.
1 With the action closed, remove the forearm by pulling outward on
the takedown latch with your index finger. At the same time, grasp
the forearm and pivot the forearm away from the barrels.
2 Open the action and carefully rotate the barrels down to disengage
them from the receiver.
forearm and right side. With
the thumb of your right hand,
move the top lever sideways to
the extreme right. Grasping the
barrels in the left hand, engage
the receiver into the mating
MonoLock Hinge’s circular arc
on the barrel set (Figure 7).
4 Push and rotate the receiver into
the arc in a forward, upward
direction, engaging and
following the arc. You will see
the ejector spring begin to
compress. Keep pushing/
rotating the receiver in until it
fully engages and locks into the
barrel set (Figures 8 and 9).
5 To attach the forearm, anchor
the gun’s buttstock against your
upper leg and slide the end of
the forearm into the crescent
shaped recess of the receiver.
Mate the small round studs
inside of the forearm with the
oval recesses on the barrel set
(Figure 10). Pivot the forearm
up to the barrel set until it
engages tightly (Figure 11). You
should hear an audible “click”
which signifies that the forearm
is properly attached. The
forearm latch should be locked
and flush with the bottom of
the forearm.

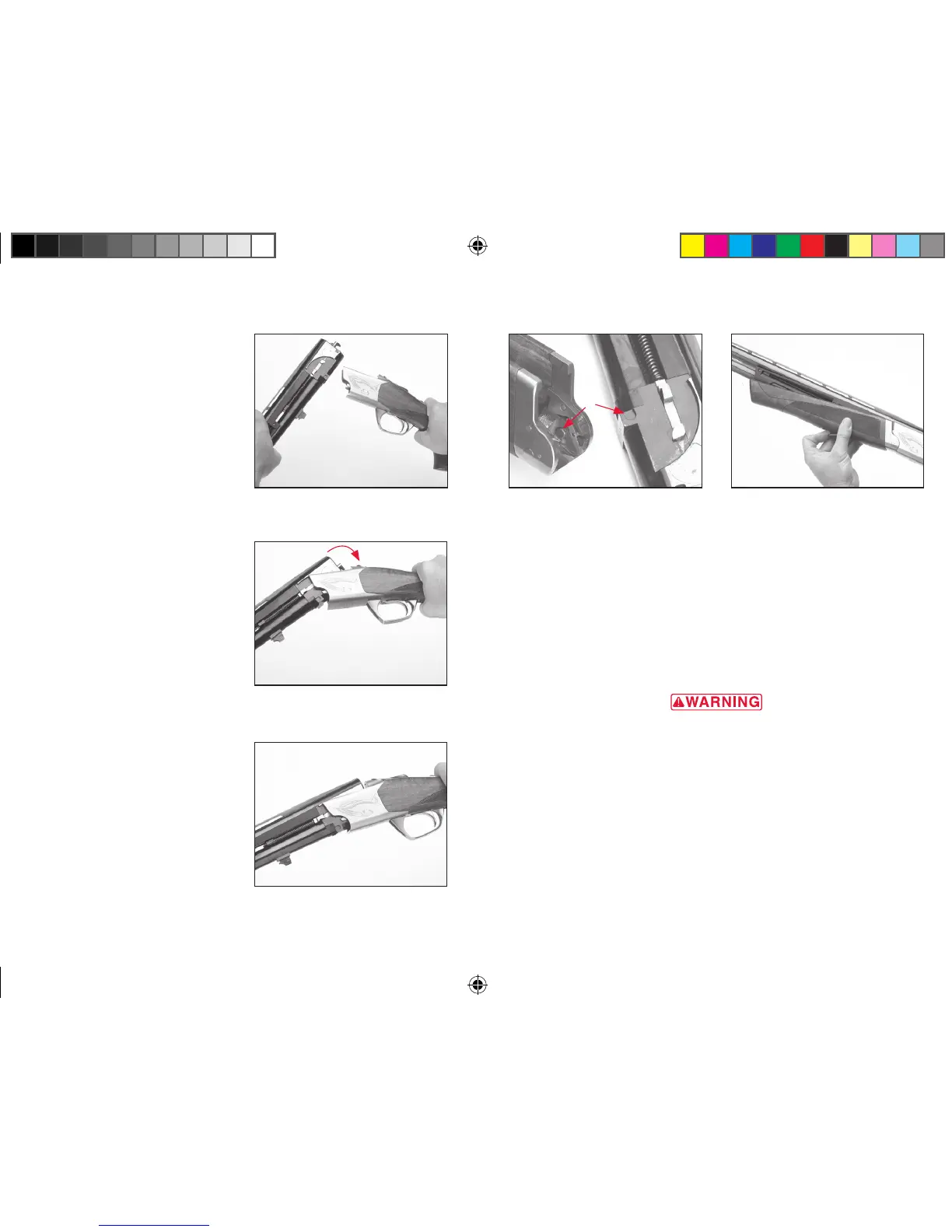

figure 8
Push and rotate the receiver until it fully
engages and locks into the barrel set.
figure 9
If the receiver is not engaging the barrel set, do
not force it. Remove the receiver and start over.
figure 7
Engage the receiver into the MonoLock Hinge’s
circular arc.
figure 11
Attach the forearm to the barrels.
figure 10
Fit the small round studs inside of the forearm
with the oval recesses on the barrel set.
