STEP 7

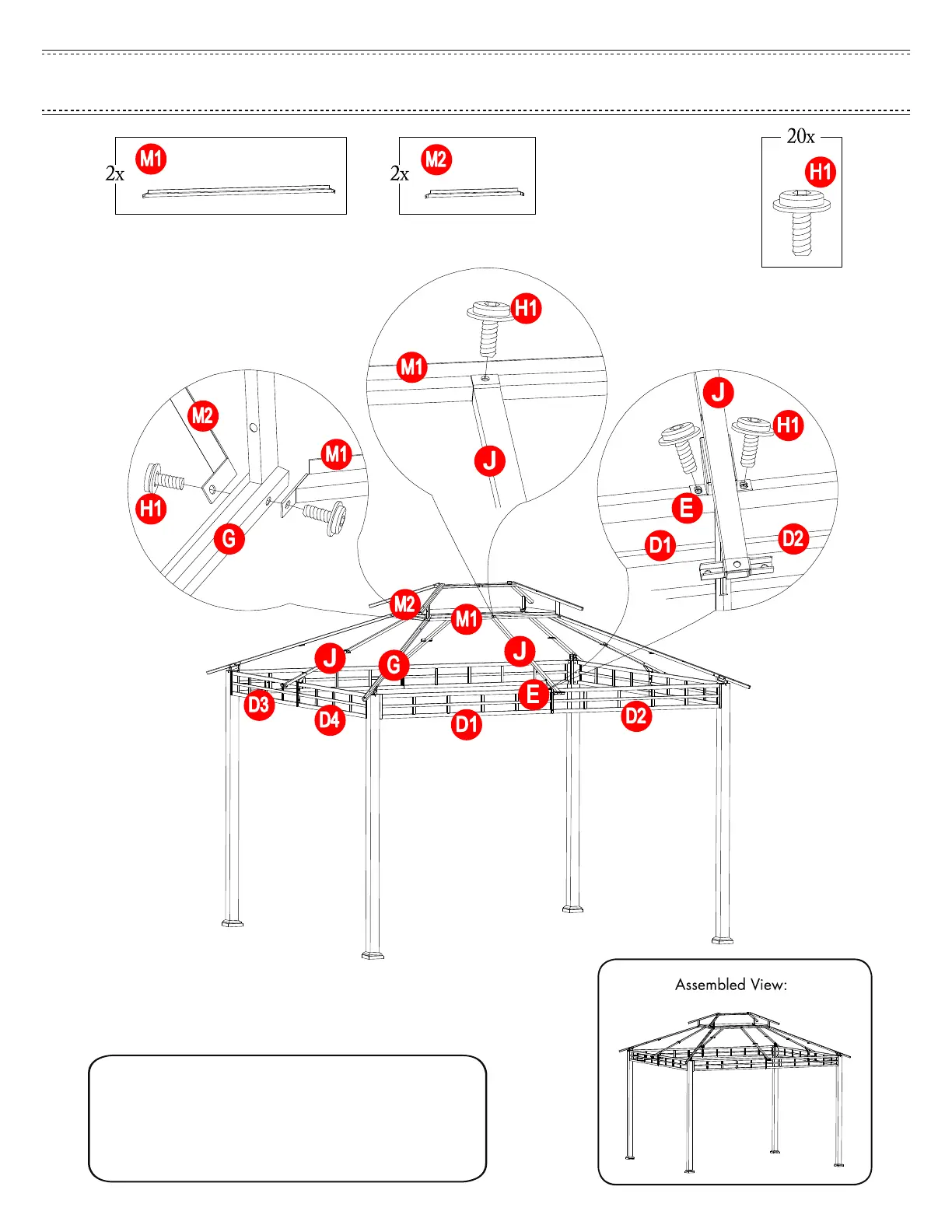

Assemble the Big Roof Up Panel
Flashing(M1)&(M2) to Rafter(G) with bolts(H1),
assemble the Middle Beam(J) to Big Roof Up Panel
Flashing(M1)&(M2) with bolts(H1), assemble the
Middle Beam Connector(E) to Cross Beam(D1/D2/
D3/D4) with bolts(H1), tighten by wrench (HW1).
