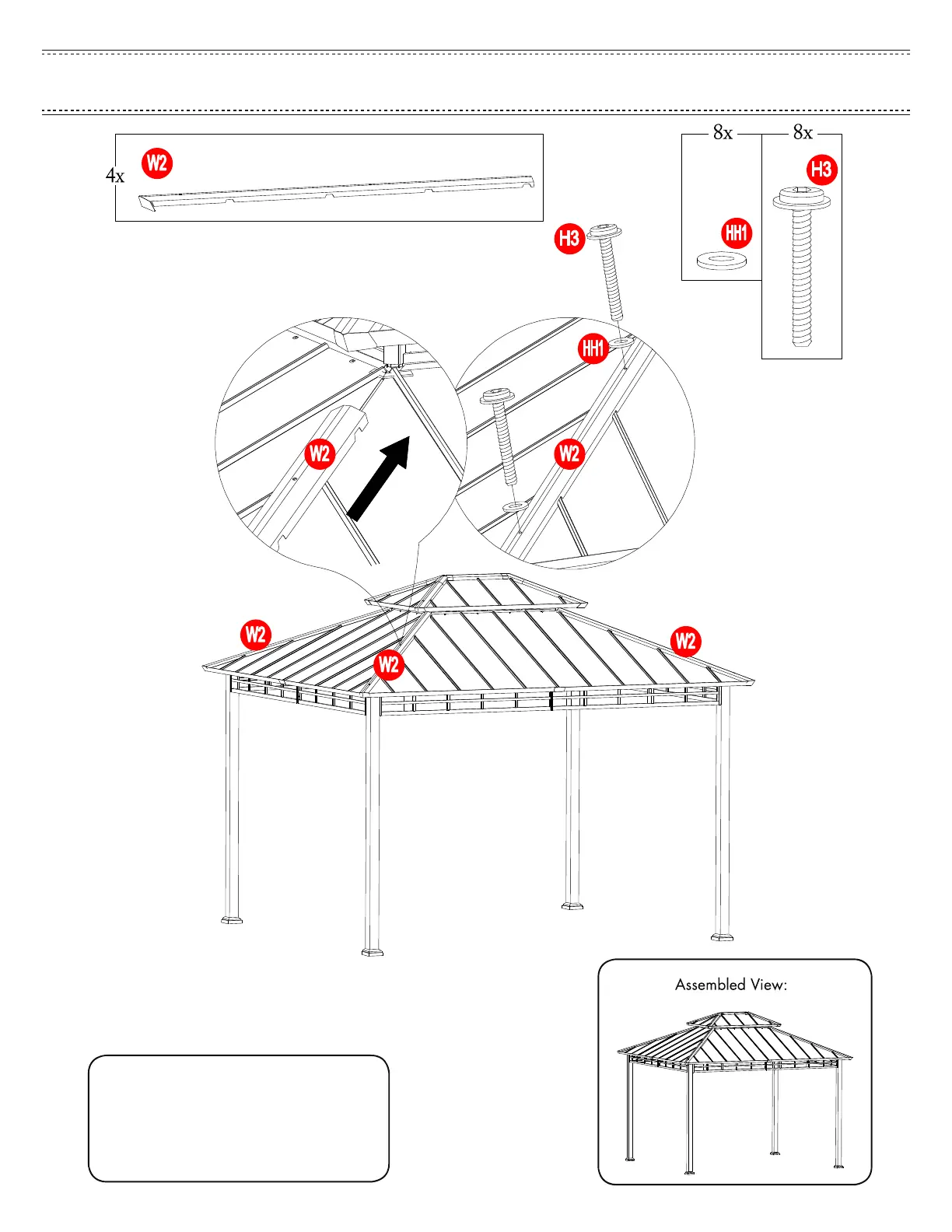

STEP 16
Assemble the Big Roof Rafter
Cap(W2) to Rafter(G) with bolts(H3)
and washer(HH1), tighten by wrench
(HW1).
